Leviton 2K480-4D

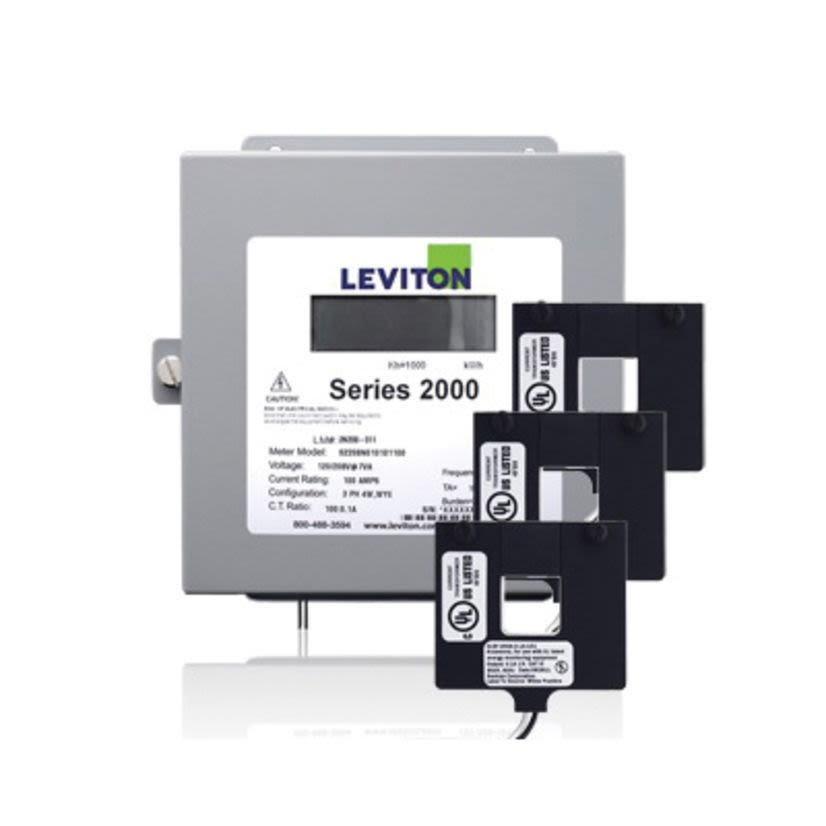

Leviton VerifEye 2K480-4D 2000 3-Phase 4-Wire Surface Mount Split Demand Meter Kit, 277/480 V AC, 400 A, LCD Display, Isolated Pulse Output Communication
Leviton 2K480-4D
Leviton VerifEye 2K480-4D 2000 3-Phase 4-Wire Surface Mount Split Demand Meter Kit, 277/480 V AC, 400 A, LCD Display, Isolated Pulse Output CommunicationNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #2K480-4D
Werner Part #3964586
UPC078477597804
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #2K480-4D
Werner Part #3964586
UPC078477597804
Product Description
Leviton VerifEye Demand Meter Kit, 3-Phase 4-Wire Surface Mount Split, Series: 2000, 277/480 V AC, 400 A, LCD Display, Isolated Pulse Output Communication, Steel, 6.19 in L x 3.25 in W x 7.5 in H Dimensions
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
Connection TypePlug-On Neutral
Country of OriginUS
Dimensions6.19 in L x 3.25 in W x 7.5 in H
Display TypeLCD
Interrupt Rating10 kA
ManufacturerLeviton
MaterialSteel
Mounting TypePlug-On
Number of Poles1
Package TypeEACH
Series2000
Type3-Phase 4-Wire Surface Mount Split
Type / Style3-Phase 4-Wire Surface Mount
Voltage277/480 VAC
Documents
Applications
Commercial and Indoor Applications
Included
(1) Meter, (1) Enclosure and (3) Split Core Current Transformers
Warranty
10 years
Features
- Measures kWh and peak demand (optional)
- Utilizes either revenue grade 0.3% accuracy class 0.1 a secondary solid core current transformers
- Up to three sets of current transformers per phase can be paralleled per meter without the need for a meter multiplier
- Enclosures include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor
- Interfaces with numerous communication systems and hardwired automatic meter reading AMR or wireless AMR
- Large LCD display shows kWh and optional peak and instantaneous kW with demand reset
- Load indicator LED verifies meter functionality
- Reverse phase indicator LED illuminates if the meter is improperly installed
- 48 in L maximum current transformer lead
- Equipped standard with an isolated pulse output channel and Modbus RTU (RS485) for easy AMR/BAS/BMS/EMS interface
- 18 to 14 AWG terminal accommodation
