nVent ILSCO PB4-750-2N

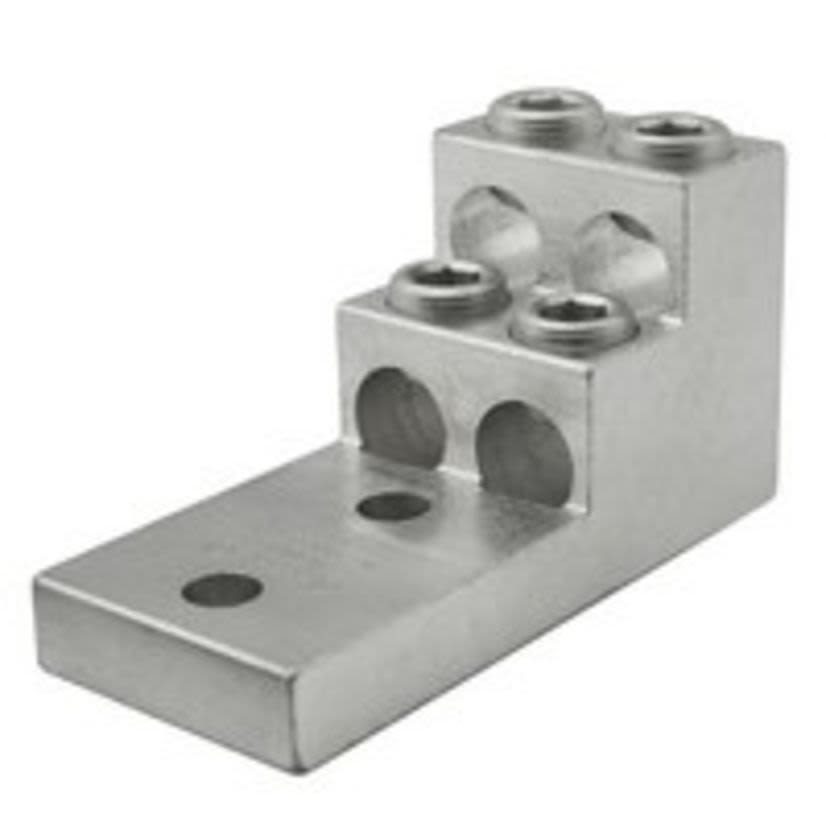

ILSCO ClearChoice PB4-750-2N Type PB Dual Rated Panelboard Stack Lug, 1/0 AWG to 750 kcmil, 1/2 in Bolt/Stud, 1-3/4 in Hole Spacing, For Use With Aluminum or Copper Conductor
nVent ILSCO PB4-750-2N
ILSCO ClearChoice PB4-750-2N Type PB Dual Rated Panelboard Stack Lug, 1/0 AWG to 750 kcmil, 1/2 in Bolt/Stud, 1-3/4 in Hole Spacing, For Use With Aluminum or Copper ConductorNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
ILSCO ClearChoice Panelboard Stack Lug, Type PB Dual Rated, 1/0 AWG to 750 kcmil Conductor, 1/2 in Bolt/Stud, For Use With: Aluminum or Copper Conductor, 2000 V AC Electrical Rating, 1-3/4 in Hole Spacing, 4 Port, 1/2 in Hex, 5-11/16 in Length, 3-1/16 in Width, 3 in Height, Aluminum, Electro-Plated Tin
Attributes
Documents
Applications
Features
Attributes
Connection TypeLine/Load
Country of OriginMX
Dimensions3.38 x 2.75 x 6 in
FinishElectro-Plated Tin
FrameF
Frequency Rating50/60 Hz
Height3 in
Interrupt Rating65 kA
ManufacturerECM Industries
MaterialAluminum
Number of Poles2
Number of Ports4
Package TypeEACH
SeriesC Series
Suitable For Use WithAluminum or Copper Conductor
Temperature Rating50 deg C
Trip TypeFixed Thermal/Fixed Magnetic
TypeType PB Dual Rated
Type / StyleType PB Dual Rated
Width3-1/16 in
Applications
Terminating Connector Applications
Features
- Manufactured from high strength 6061-T6 aluminum alloy
- Electro tin plated provides low contact resistance
- Chamfered wire entry provides ease of installation
- Stacked design saves space and reduces installation time
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- Ensures reliability for copper or aluminum conductors
- 2-11/32 in L x 3-1/16 in W x 3/4 in THK straight tongue
- 90 deg C temperature rating
- 2-studs
