Cutler-Hammer Series BKFD225T

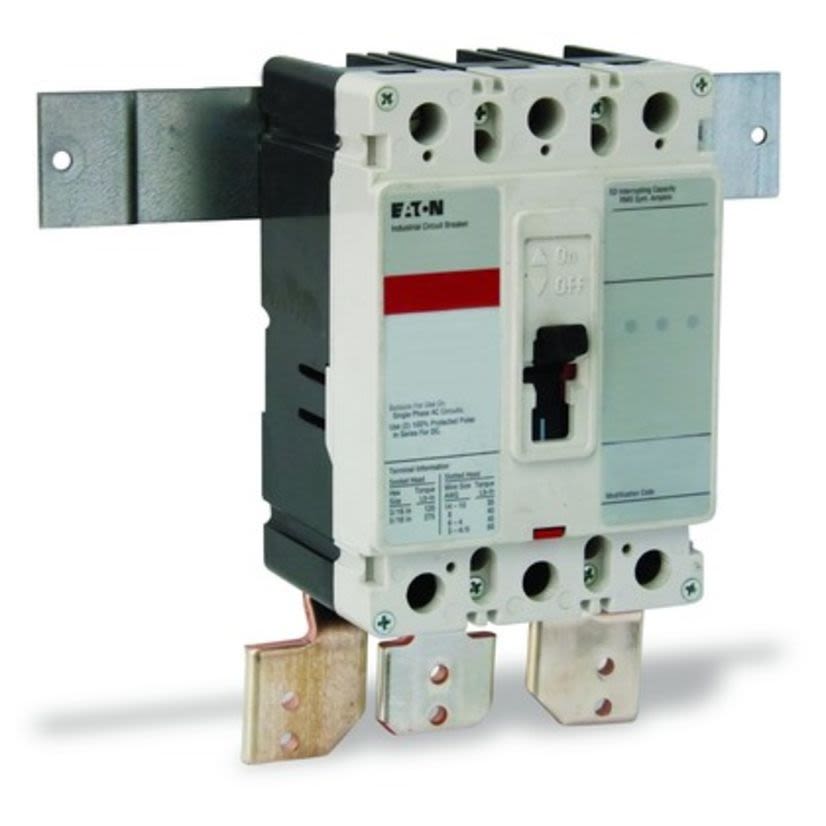

EATON BKFD225T Main/Sub-Feed Circuit Breaker Kit, 480 V AC, 225 A, 25 kA
Cutler-Hammer Series BKFD225T
EATON BKFD225T Main/Sub-Feed Circuit Breaker Kit, 480 V AC, 225 A, 25 kANon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #BKFD225T
Werner Part #24237
UPC786687009702
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #BKFD225T
Werner Part #24237
UPC786687009702
Product Description
EATON Circuit Breaker Kit, Main/Sub-Feed, 480 V AC, 225 A, 25 kA Interrupt, FD Frame, (1) 4 to 4/0 AWG Wire, Top Mounting
Attributes
Documents
Features
Included
Attributes
Breaker TypeBR/CSR
Country of OriginUS
Dimensions48 in L x 14.31 in W x 3.88 in H
Enclosure Box SizeX10
Enclosure TypeNEMA 1
FrameType: FD
Housing MaterialGalvanized Steel
Interrupt Rating25 kA
ManufacturerEaton
Mounting TypePlug-On
Number of Circuits60
Number of Poles1
Number of Spaces60
Package Height4.7 IN
Package Length5.9 in
Package TypeEACH
Package Weight9 lb
Package Width6.13 in
Size of Wire2 AWG to 300 kcmil
TypeMain/Sub-Feed
Type / StyleMain/Sub-Feed
Voltage480 VAC
Wiring Configuration3-Wire
Features
- 1 or 3-phase service
Included
Circuit Breaker and Terminal
