Cutler-Hammer Series 37MM120R12

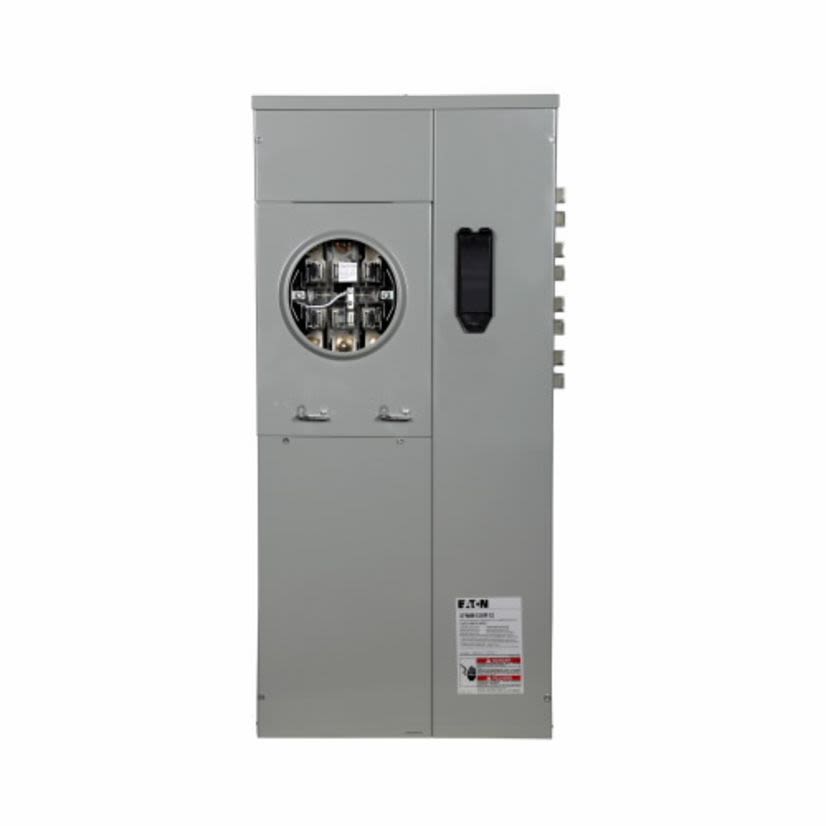

EATON 37MM120R12 Meter Stack Module, 208Y/120 V AC, 200 A, 3 Phase, NEMA 3R Enclosure
Cutler-Hammer Series 37MM120R12
EATON 37MM120R12 Meter Stack Module, 208Y/120 V AC, 200 A, 3 Phase, NEMA 3R EnclosureNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #37MM120R12
Werner Part #519827
UPC786849052881
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #37MM120R12
Werner Part #519827
UPC786849052881
Product Description
EATON Meter Stack Module, 208Y/120 V AC, 200 A, 3 ph, 100 kA Short Circuit, Bolted-On Mounting, NEMA 3R Enclosure, 8.75 in L x 18.25 in W x 25.38 in D Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
Actuator TypePivot/Toggle Handle
Connection TypeLoad Lug
Country of OriginUS
Dimensions8.75 in L x 18.25 in W x 25.38 in D
Enclosure TypeNEMA 3R
FrameQ-Line
Frequency Rating50/60 Hz
Interrupt Rating10 kA
ManufacturerEaton
MaterialPlastic
Mounting TypePlug-In
Number of Poles1
Package TypeEACH
Phase3
Short Circuit Current Rating100 kA
Size of Wire14 to 8 AWG, 12 to 8 AWG
Temperature Rating10 to 50 deg C
Trip TypeLI/Non-Interchangeable Thermal Magnetic
TypeType THQP Compact
Voltage208Y/120 VAC
Applications
Commercial, Power Distribution, Indoor/Outdoor, Residential and Facilities Applications
Warranty
1 year
Features
- Combination indoor outdoor enclosures with removable top cap, bottom plate and backplate for field installed knockouts (all blank plates) allow for flexible and easy installation
- Two designs can be interconnected with all other commercial metering as well as with residential devices which makes installation faster and more flexible
- Meter socket and tenant main breaker/wireway sections are separated by a solid metal barrier to guard unmetered bus against power theft
- Able to be mounted with 1 mm/3 mm modules and thus will bolt together in many different arrangements, giving greater flexibility
- UL listed and suitable for use as service entrance equipment, which means no need to purchase more equipment or use add-ons
- Separate covers allow easy access to tenant breaker and wireway section as well as permit work on breakers or in wireway without disturbing meters or meter covers
- EHD3_ CCV3_X, CCVH3_X, CVS3_X, CV3_X and CVH3_X bolt-on type main tenant breaker
- Interrupt rating depends on selected main circuit breaker
