Cutler-Hammer Series 1MFS600RB

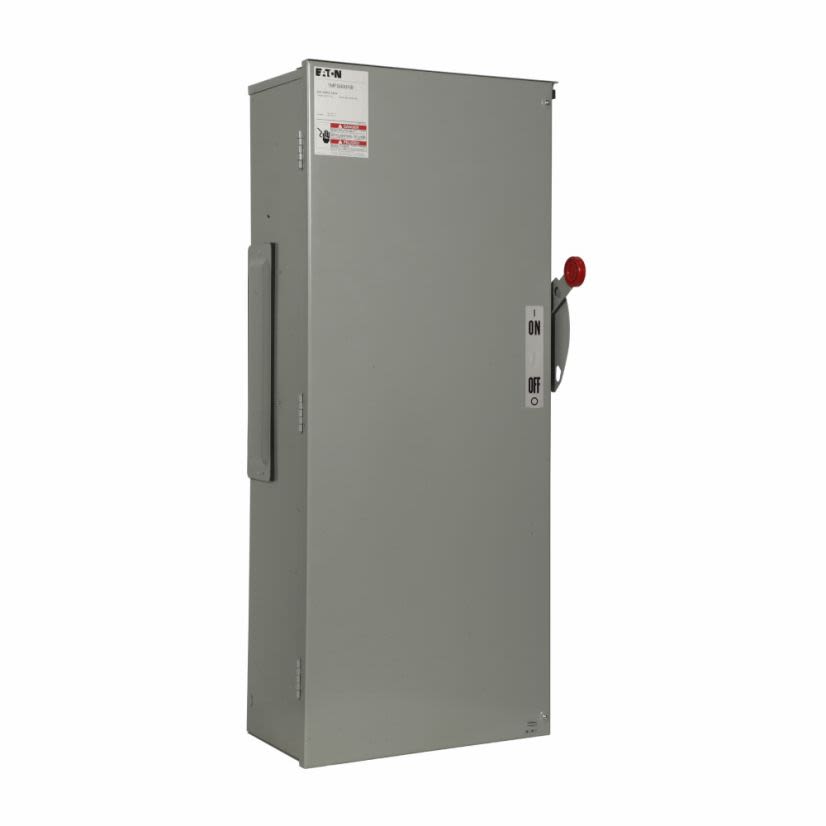

EATON 1MFS600RB Standard Main Fusible Switch, 120/240 V AC, 600 A, 1 Phase , 3 Wires, NEMA 3R Enclosure
Cutler-Hammer Series 1MFS600RB
EATON 1MFS600RB Standard Main Fusible Switch, 120/240 V AC, 600 A, 1 Phase , 3 Wires, NEMA 3R EnclosureNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #1MFS600RB
Werner Part #531611
UPC786849053611
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #1MFS600RB
Werner Part #531611
UPC786849053611
Product Description
EATON Main Fusible Switch, Standard, 120/240 V AC, 600 A, 1 ph, 3 Wires, 2 AWG to 600 kcmil Wire, 100 kA Short Circuit, Bottom/Underground Feed, Class T Fuse, Line Side Box Lug, Aluminum, NEMA 3R, 48-1/4 in L x 23-1/2 in W x 15-1/4 in H
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
Connection TypeLine Side Box Lug
Country of OriginUS
Dimensions48-1/4 in L x 23-1/2 in W x 15-1/4 in H
Enclosure TypeNEMA 3R
ManufacturerEaton
MaterialAluminum
Number of Wires3
Package Height15.25 in
Package Length48.25 in
Package TypeEACH
Package Weight112.3 lb
Package Width23.5 in
Phase1
Short Circuit Current Rating100 kA
Size of Wire(2) 2 AWG to 600 kcmil
Suitable For Use WithPowerMark GoldĆ¢āĀ¢ and PowerMark PlusĆ¢āĀ¢ Loadcenter
TypeStandard
Type / StyleSTANDARD
Voltage120/240 VAC
Applications
Power Distribution, Electrical Assemblies, Panels and EOEMs Applications
Included
Main and Neutral Lugs
Warranty
1 year
Features
- 800 A top and bottom fed units are supplied with class T fuse clips as standard
