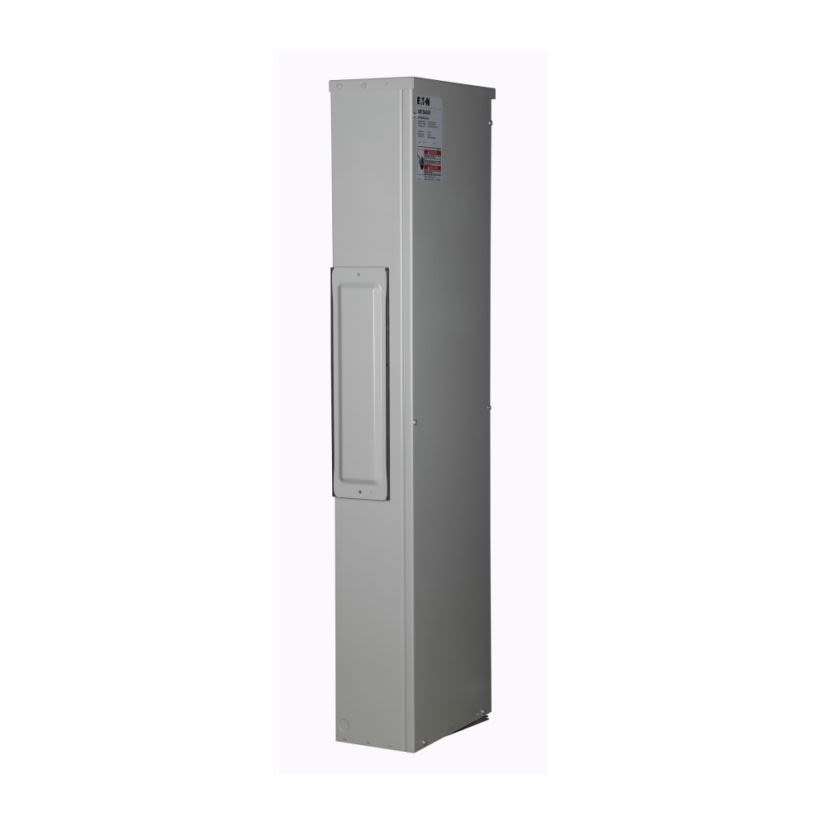

Cutler-Hammer Series 3MTB400R
EATON 3MTB400R 4-Wire Standard Main Terminal Box, 120/208 V AC, 400 A, 3 Phase , Bottom/Overhead/Top/Underground Feed, NEMA 3R Enclosure
Cutler-Hammer Series 3MTB400R
EATON 3MTB400R 4-Wire Standard Main Terminal Box, 120/208 V AC, 400 A, 3 Phase , Bottom/Overhead/Top/Underground Feed, NEMA 3R EnclosureNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #3MTB400R
Werner Part #504205
UPC786849053086
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #3MTB400R
Werner Part #504205
UPC786849053086
Product Description
EATON Main Terminal Box, 4-Wire Standard, 120/208 V AC, 400 A, 3 Phase , Bottom/Overhead/Top/Underground Feed, NEMA 3R, (2) 1/0 AWG to 250 kcmil, (1) 6 AWG to 600 kcmil Wire, 100 kA Short Circuit Current, Line Side Lug, 6-1/2 in L x 13-1/2 in W x 7-1/2 in H
Attributes
Documents
Applications
Included
Warranty
Features
Specifications
Attributes
Connection TypeLine Side Lug
Country of OriginUS
Dimensions6-1/2 in L x 13-1/2 in W x 7-1/2 in H
Enclosure TypeNEMA 3R
ManufacturerEaton
Package TypeEACH
Phase3
Short Circuit Current Rating100 kA
Size of Wire(2) 1/0 AWG to 250 kcmil, (1) 6 AWG to 600 kcmil
Suitable For Use WithPowerMark PlusĆ¢āĀ¢ Load Center and THQL Frame Circuit Breaker
Type4-Wire Standard
Type / Style4-Wire Standard
Voltage120/208 VAC
Applications
Power Distribution, Indoor/Outdoor, Electrical Assemblies, Panels and OEMs Applications
Included
Phase and Neutral Lug
Warranty
1 year
Features
- Short circuit rating is the least AIC rating of any installed main tenant breaker to a maximum of 100000 RMS symmetrical amperes
- Aluminum bus housing
Specifications
225
