Cutler-Hammer Series 1MM412RRLB

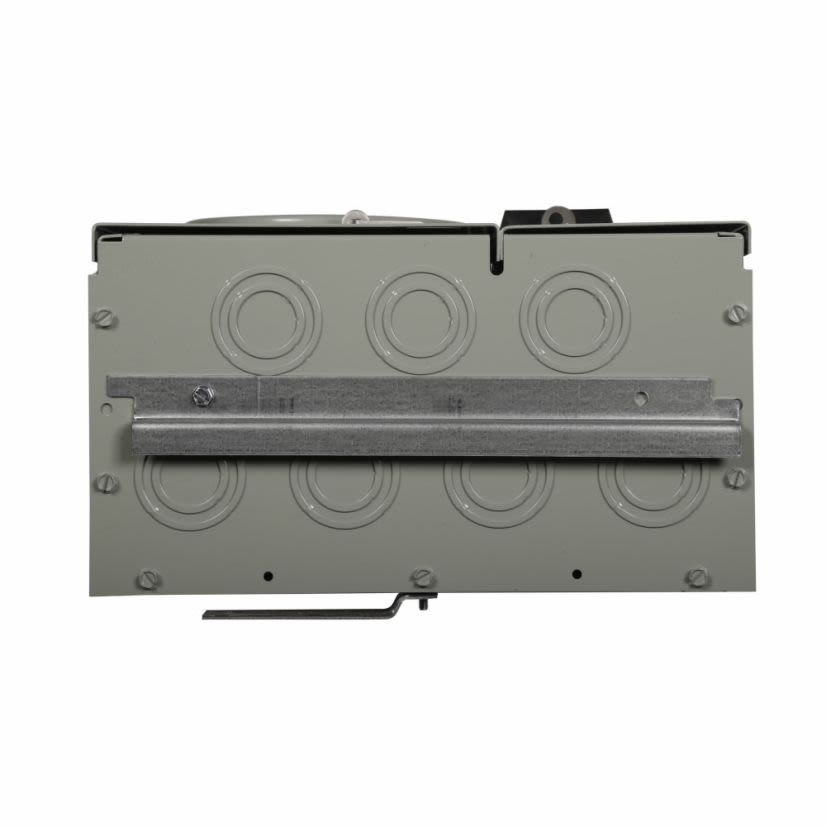

EATON 1MM412RRLB 4-Socket 4-Jaw Multiple Metering Meter Stack Module, 120/240 V AC, 200 A, 1 Phase , NEMA 3R Enclosure
Cutler-Hammer Series 1MM412RRLB
EATON 1MM412RRLB 4-Socket 4-Jaw Multiple Metering Meter Stack Module, 120/240 V AC, 200 A, 1 Phase , NEMA 3R EnclosureOut of Stockmore info
|
Out of Stockmore info
|
Product Description
EATON Meter Stack Module, 4-Socket 4-Jaw Multiple Metering, 120/240 V AC, 200 A, 1 ph, 100 kA Short Circuit, Bus Bar Connection, Galvanized Steel, Plug-On Mounting, NEMA 3R Enclosure, 12.26 in L x 7.01 in W x 48.5 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
Breaker TypeCH/CSR
Connection TypeBus Bar
Country of OriginUS
Dimensions12.26 in L x 7.01 in W x 48.5 in H
Enclosure Box SizeX5
Enclosure TypeNEMA 3R
Housing MaterialSheet Steel
Interrupt Rating10 kA
ManufacturerEaton
MaterialGalvanized Steel
Mounting TypePlug-On
Number of Circuits8
Number of Poles16
Number of Spaces8
Package TypeEACH
Phase1
Short Circuit Current Rating100 kA
Type4-Socket 4-Jaw Multiple Metering
Type / Style4-Jaw 4-Socket Multiple Metering
Voltage120/240 VAC
Wiring Configuration3
Applications
Residential, Power Distribution, Outdoor, Electrical Assemblies, Panels and EOEMs Applications
Warranty
1 year
Features
- Meter socket and tenant main breaker or wireway sections are separated by a solid metal barrier to guard unmetered bus against power theft
- A convenient termination for neutral conductors is in the wireway of each module
- Enclosures are made of galvanized steel construction and include rust inhibiting phosphate primer and gray baked enamel for long term durability
- Meter socket base is installed without any fasteners, reducing chances for hot spots
- Separate covers allow easy access to tenant breaker and wireway section, permit work on breakers or in wireway without disturbing meters or meter covers
- For use with BR2, BRH2, BRHH2 and BRX2, plug-on type main tenant breaker
- Interrupt rating depends on selected main circuit breaker
- Short circuit ratings up to 100 A RMS symmetrical depending upon the kAIC rating of installed main tenant circuit breakers and main device
- Mechanically and electrically built to bolt up with main service modules and residential modular metering stacks
- Standard 800 A aluminum bus
