Cutler-Hammer Series 1MFS800RB

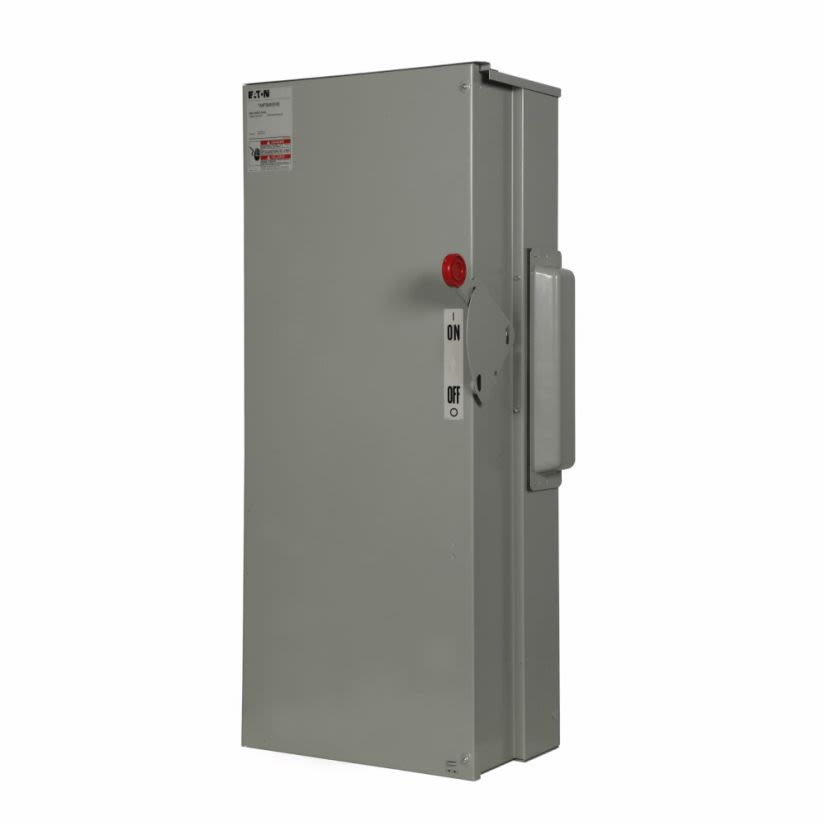

EATON 1MFS800RB Standard Main Fusible Switch, 120/240 V AC, 800 A, 1 Phase , 3 Wires, NEMA 3R Enclosure
Cutler-Hammer Series 1MFS800RB
EATON 1MFS800RB Standard Main Fusible Switch, 120/240 V AC, 800 A, 1 Phase , 3 Wires, NEMA 3R EnclosureNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #1MFS800RB
Werner Part #507161
UPC786849053628
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #1MFS800RB
Werner Part #507161
UPC786849053628
Product Description
EATON Main Fusible Switch, Standard, 120/240 V AC, 800 A, 1 ph, 3 Wires, 3/0 AWG to 750 kcmil Wire, 100 kA Short Circuit, Bottom/Underground Feed, Class T/L Fuse, Line Side Box Lug, Aluminum, NEMA 3R, 22.54 in L x 16.64 in W x 15 in H
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
Connection TypeLine Side Box Lug
Country of OriginUS
Dimensions22.54 in L x 16.64 in W x 15 in H
Enclosure TypeNEMA 3R
FrameG
Frequency Rating50/60 Hz
Interrupt Rating14/65 kA
ManufacturerEaton
MaterialAluminum
Mounting TypeBolted-On
Number of Poles3
Number of Wires3
Package TypeEACH
Phase1
SeriesC Series
Short Circuit Current Rating100 kA
Size of Wire10 to 1/0 AWG
Temperature Rating40 deg C
Trip TypeFixed Thermal/Fixed Magnetic/Non-Interchangeable
TypeStandard
Type / StyleSTANDARD
Voltage120/240 VAC
Applications
Power Distribution, Electrical Assemblies, Panels and EOEMs Applications
Included
Main and Neutral Lugs
Warranty
1 year
Features
- The class T fuse clips are field convertible to class l by repositioning
