Cutler-Hammer Series 1008541CH

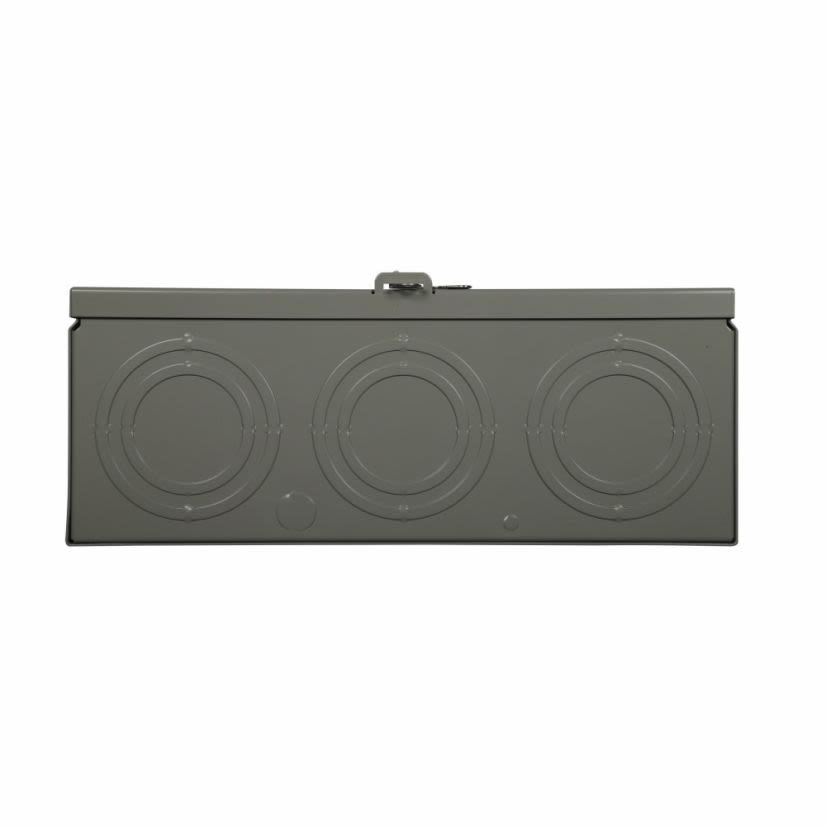

EATON 1008541CH Lever Bypass Meter Socket, 600 V AC, 320 A
EATON 1008541CH Lever Bypass Meter Socket, 600 V AC, 320 A

Cutler-Hammer Series 1008541CH

EATON 1008541CH Lever Bypass Meter Socket, 600 V AC, 320 A
Out of Stockmore info
|

BrandCutler-Hammer Series

MFG #1008541CH

Werner Part #1407094

UPC782116096411

Out of Stockmore info
|

BrandCutler-Hammer Series

MFG #1008541CH

Werner Part #1407094

UPC782116096411

Product Description

EATON Meter Socket, Lever Bypass, 600 V AC, 320 A, Bottom/Overhead/Top/Underground Feed, 4 Jaws, 4 AWG to 600 kcmil, 1/0 AWG to 250 kcmil Wire, Open Hub, 5 x 5 in Hub, Ringless Cover, 5.69 in L x 15 in W x 36.63 in H Dimensions
Attributes
Connection TypeLine/Load
Country of OriginUS
Dimensions5.69 in L x 15 in W x 36.63 in H
Enclosure TypeNEMA 4
FrameG
Frequency Rating50/60 Hz
Interrupt Rating65/14 kA
ManufacturerEaton
Mounting TypeBolted-On
Number of Poles3
Package TypeEACH
Phase3
SeriesC Series
Size of Wire10 to 1/0 AWG
Temperature Rating40 deg C
Trip TypeFixed Thermal/Fixed Magnetic/Non-Interchangeable
TypeLever Bypass
Type / StyleLever Bypass
Voltage600 VAC
