Cutler-Hammer Series MB816B200BTSD

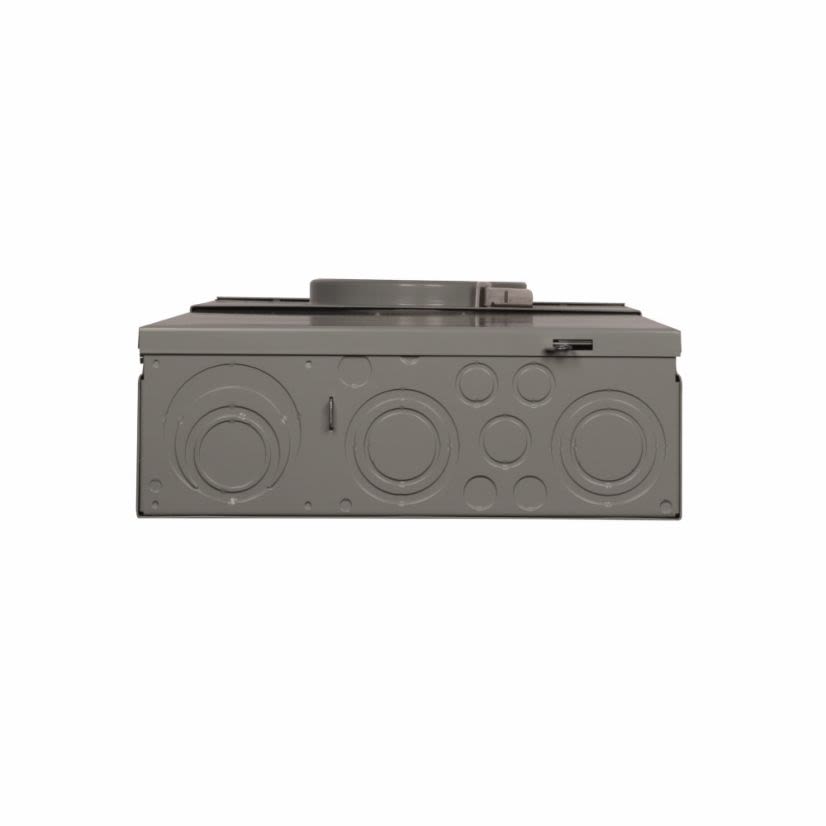

EATON MB816B200BTSD MB Series Type BR 16-Circuit 8-Space 3-Wire All-In-One Horn bypass Combination Service Entrance Non-EUSERC Meter Breaker, 120/240 V AC, 200 A, 1 Phase , NEMA 3R Enclosure
Cutler-Hammer Series MB816B200BTSD
EATON MB816B200BTSD MB Series Type BR 16-Circuit 8-Space 3-Wire All-In-One Horn bypass Combination Service Entrance Non-EUSERC Meter Breaker, 120/240 V AC, 200 A, 1 Phase , NEMA 3R EnclosureNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #MB816B200BTSD
Werner Part #2336025
UPC782116938193
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #MB816B200BTSD
Werner Part #2336025
UPC782116938193
Product Description
EATON Meter Breaker, Type BR 16-Circuit 8-Space 3-Wire All-In-One Horn bypass Combination Service Entrance Non-EUSERC, Series: MB Series, 120/240 V AC, 200 A, 1 Phase , Bottom/Overhead/Top/Underground Feed, 5 Jaws, 6 AWG to 350 kcmil Wire, Top Endwall, 1 in Hub, Ringless Cover, Line/Load Terminal, Surface Mount, NEMA 3R, 5.38 in L x 14.44 in W x 32.38 in H
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
Actuator TypeToggle Handle
Connection TypeLine/Load
Country of OriginUS
Dimensions5.38 in L x 14.44 in W x 32.38 in H
Enclosure TypeNEMA 3R
FrameEG
Frequency Rating50/60 Hz
Interrupt Rating35 kA at 240 VAC, 25 kA at 415 VAC, 25 kA at 480 VAC, 18 kA at 600Y/347 VAC
ManufacturerEaton
MaterialGlass Polyester
Number of Poles2
Package Height32.38 in
Package Length5.38 in
Package TypeEACH
Package Weight40 lb
Package Width14.44 in
Phase1
SeriesMB Series
Size of Wire6 AWG to 350 kcmil
Temperature Rating40 deg C
Terminal TypeLine/Load
Trip TypeFixed Thermal/Fixed Magnetic
TypeType BR 16-Circuit 8-Space 3-Wire All-In-One Horn bypass Combination Service Entrance Non-EUSERC
Type / StyleType BR All-in-One Horn Bypass
Voltage120/240 VAC
Applications
Power Distribution, Electrical Assemblies, Panel and EOEM and Residential Applications
Included
Distribution Section and BW2200 Main Breaker
Warranty
10 years
Features
- Larger lay-in lugs and 3 in knockouts for ease of installation
- Factory installed neutral assemblies
- Hub provisions on top endwall
- Padlockable device covers provide an additional measure of security and help prevent tampering
