Cutler-Hammer Series 1008846CH

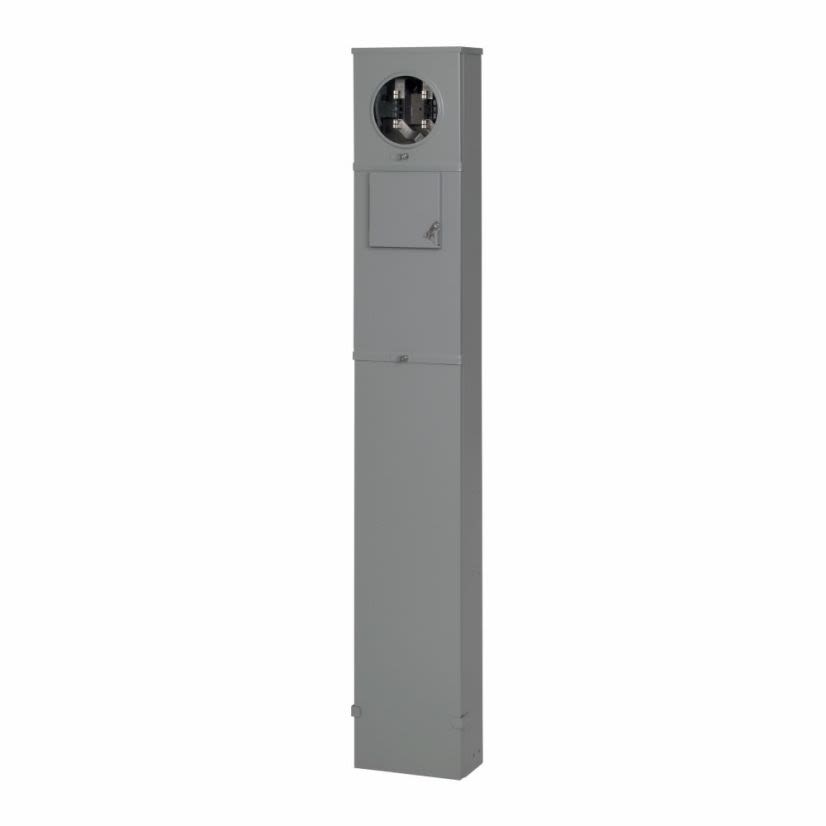

EATON 1008846CH Horn Bypass Meter Socket With Main Breaker, 240 V AC, 200 A, 1 Phase
EATON 1008846CH Horn Bypass Meter Socket With Main Breaker, 240 V AC, 200 A, 1 Phase

Cutler-Hammer Series 1008846CH

EATON 1008846CH Horn Bypass Meter Socket With Main Breaker, 240 V AC, 200 A, 1 Phase
Out of Stockmore info
|

BrandCutler-Hammer Series

MFG #1008846CH

Werner Part #1550174

UPC782116144150

Out of Stockmore info
|

BrandCutler-Hammer Series

MFG #1008846CH

Werner Part #1550174

UPC782116144150

Product Description

EATON Meter Socket, Horn Bypass, 240 V AC, 200 A, 1 ph, Bottom Feed, 4 Jaws, 6 AWG to 350 kcmil Wire, Solid Top Hub, Ringless Cover, 6 in L x 11 in W x 70 in H Dimensions
Attributes
Breaker TypeCH/CHP
Country of OriginUS
Dimensions6 in L x 11 in W x 70 in H
Enclosure Box SizeX2
Enclosure TypeNEMA 1
Housing MaterialSheet Steel
Interrupt Rating25 kA
ManufacturerEaton
Mounting TypePlug-On
Number of Circuits40
Number of Poles40
Number of Spaces20
Package TypeEACH
Phase1
Size of Wire6 to 2/0 AWG
TypeHorn Bypass
Type / StyleHorn Bypass
Voltage240 VAC
Wiring Configuration3-Wire
