Milbank U3849-O-2/200

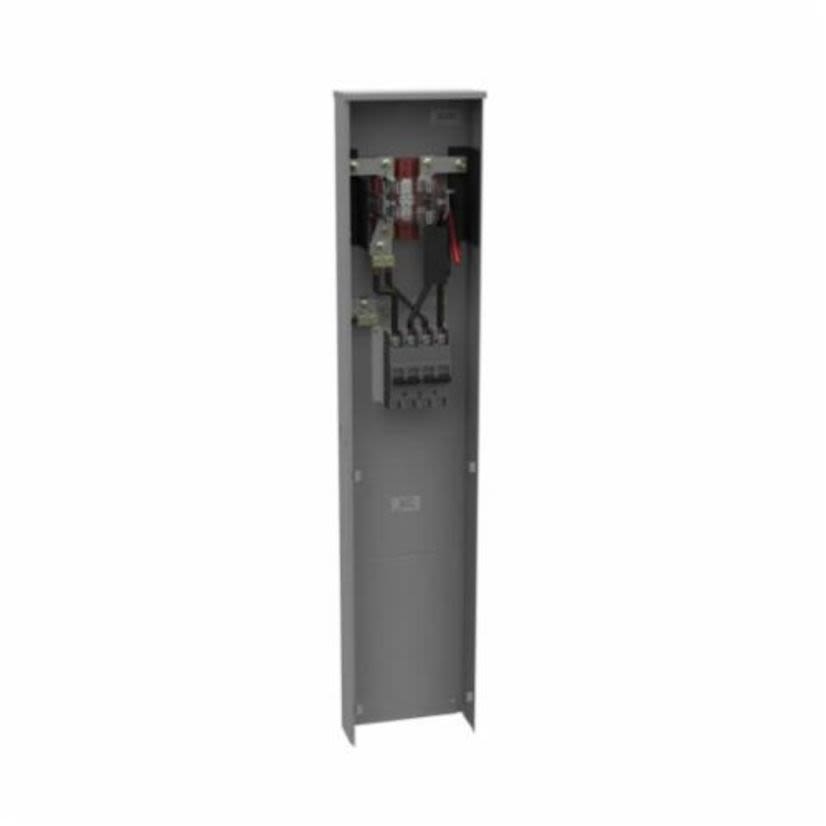

Milbank U3849-O-2/200 Ringless Meter Pedestal, 240 V AC, 320 A, 1 Phase, NEMA 3R Enclosure
Milbank U3849-O-2/200
Milbank U3849-O-2/200 Ringless Meter Pedestal, 240 V AC, 320 A, 1 Phase, NEMA 3R EnclosureIn Stock: 9more info
|
In Stock: 9more info
|
Product Description
Milbank Meter Pedestal, Ringless, 240 V AC, 320 A, 1 Phase, 60 Hz, 4 Jaws, 1/0 AWG to 300 kcmil Wire, Plain Top, Stud Terminal, Surface Mount, NEMA 3R, 64 in H x 13 in W x 4-7/8 in D
Attributes
Documents
Features
Attributes
ColorGray
Country of OriginUS
Dimensions64 in H x 13 in W x 4-7/8 in D
Enclosure TypeNEMA 3R
FinishTin Plated
Frequency Rating60 Hz
ManufacturerMilbank Manufacturing
Number of Poles1
Phase1
Primary Connection/Pole1
Secondary Connection/Pole8
Short Circuit Current Rating100 kA
Size of Wire14 to 2/0 AWG, 6 AWG to 350 kcmil, 14 to 8 AWG
Terminal TypeStud
TypeRingless
Type / StyleRingless
Voltage240 VAC
Documents
Features
- Underground cable entry
- G90 galvanized steel with powder coat enclosure finish
- 3/8 in stud line side and double mechanical load side connector
- 1 position
- Lever bypass
- 3/8 in x 16 studs (line)/1/0 - 300 kcmil CB (load)
- CU/AL connector
- (3) 2 1/2 in, (2) 5/16 in Concentric knockout
