Cutler-Hammer Series 1009018CH

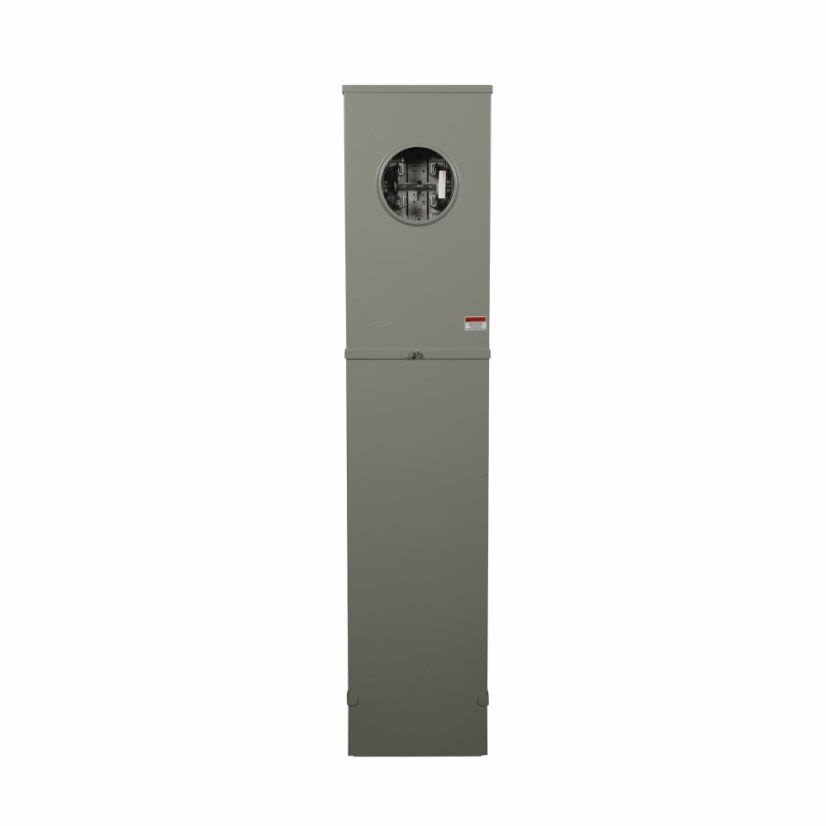

Cutler-Hammer 1009018CH 3-Wire Lever Bypass Meter Pedestal, 600 V, 320 A, 1 Phase
Cutler-Hammer 1009018CH 3-Wire Lever Bypass Meter Pedestal, 600 V, 320 A, 1 Phase

Cutler-Hammer Series 1009018CH

Cutler-Hammer 1009018CH 3-Wire Lever Bypass Meter Pedestal, 600 V, 320 A, 1 Phase
In Stock: 9more info
|

BrandCutler-Hammer Series

MFG #1009018CH

Werner Part #2042921

UPC782116365685

In Stock: 9more info
|

BrandCutler-Hammer Series

MFG #1009018CH

Werner Part #2042921

UPC782116365685

Product Description

Cutler-Hammer Meter Pedestal, 3-Wire Lever Bypass, 600 V, 320 A, 1 ph, Bottom/Underground Feed, 4 Jaws, 6 AWG to 350 kcmil Wire, Solid Top, Ringless Cover, Line/Load Terminal, 4.94 in L x 12.97 in W x 63 in H
Attributes
Breaker TypeTHQL
Country of OriginUS
Dimensions4.94 in L x 12.97 in W x 63 in H
Enclosure Box SizeNEMA 14
Enclosure TypeNEMA 1
Interrupt Rating65 kA
ManufacturerEaton
Mounting TypeSurface
Number of Circuits42
Number of Spaces42
Package TypeEACH
Phase1
Size of Wire6 AWG to 350 kcmil
Terminal TypeLine/Load
Type3-Wire Lever Bypass
Type / Style3-Wire Lever Bypass
Voltage600 VAC
Wiring Configuration3-Wire
