Cutler-Hammer Series 1MP6126RRLB

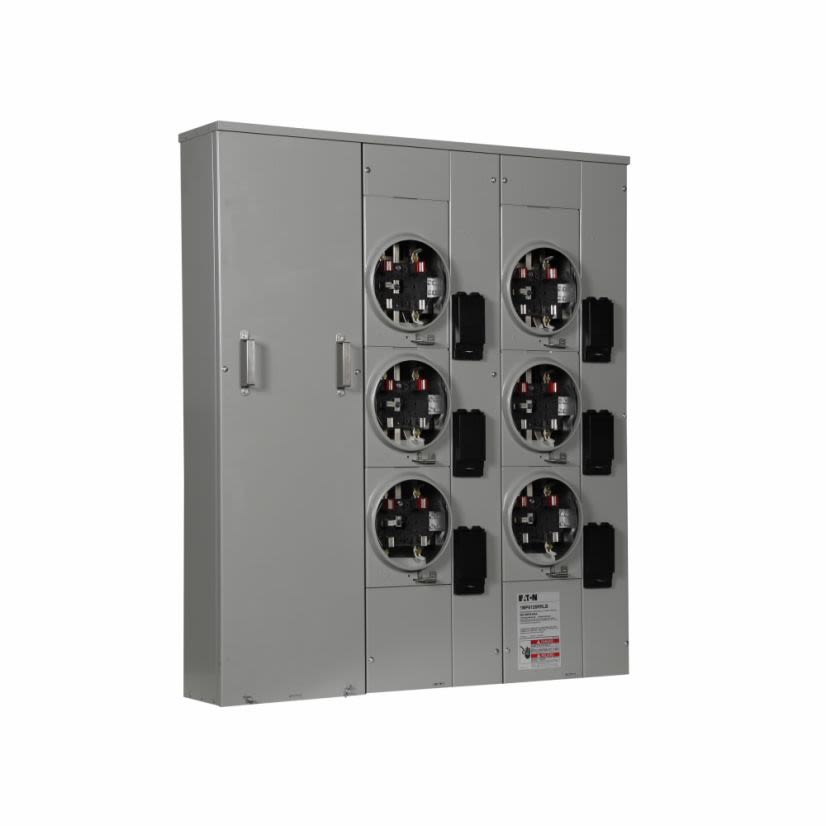

EATON 1MP6126RRLB Group Metering Meter Pack With Horn Bypass, 125 A Self-Contained Socket, Underground Feed, 120/240 V AC, 600 A Bus
Cutler-Hammer Series 1MP6126RRLB
EATON 1MP6126RRLB Group Metering Meter Pack With Horn Bypass, 125 A Self-Contained Socket, Underground Feed, 120/240 V AC, 600 A BusNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Meter Pack, Group Metering, Self-Contained Socket, Underground Feed, 120/240 V AC, 600 A Bus, 125 A Socket, 6 Meter Sockets, 1 ph, Ringless Socket Cover Style, 5 Socket Jaws, Plug-On/BR2/BRH2/BRHH2/BRX2/IA/MI/MN/WI Breaker, 41.59 in L x 7.01 in W x 36.28 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Breaker TypePlug-On/BR2/BRH2/BRHH2/BRX2/IA/MI/MN/WI
Connection TypeLine/Load
Country of OriginUS
Dimensions41.59 in L x 7.01 in W x 36.28 in H
Enclosure TypeNEMA 4
FrameG
Frequency Rating50/60 Hz
Interrupt Rating65/14 kA
ManufacturerEaton
Mounting TypeBolted-On
Number of Poles2
Package TypeEACH
Phase1
SeriesC Series
Size of Wire10 to 1/0 AWG
Temperature Rating40 deg C
Trip TypeFixed Thermal/Fixed Magnetic/Non-Interchangeable
TypeGroup Metering
Type / StyleGroup Metering
Voltage120/240 VAC
Documents
Applications
Electrical Assemblies, Panels and OEMs Applications
Warranty
1 year
Features
- Units are self-contained (main terminal box included) for installations requiring up to six meter socket positions in a single enclosure
- Units are not gangable with any other metering device
- Series rating up to 100 kAIC
- Bondable neutral
- Provision for 2-pole breaker
- Underground incoming feed
- Aluminum bus housing
Specifications
- Socket Type: Self-Contained
- Socket Jaws:5
