Cutler-Hammer Series 1MP3124RRLB

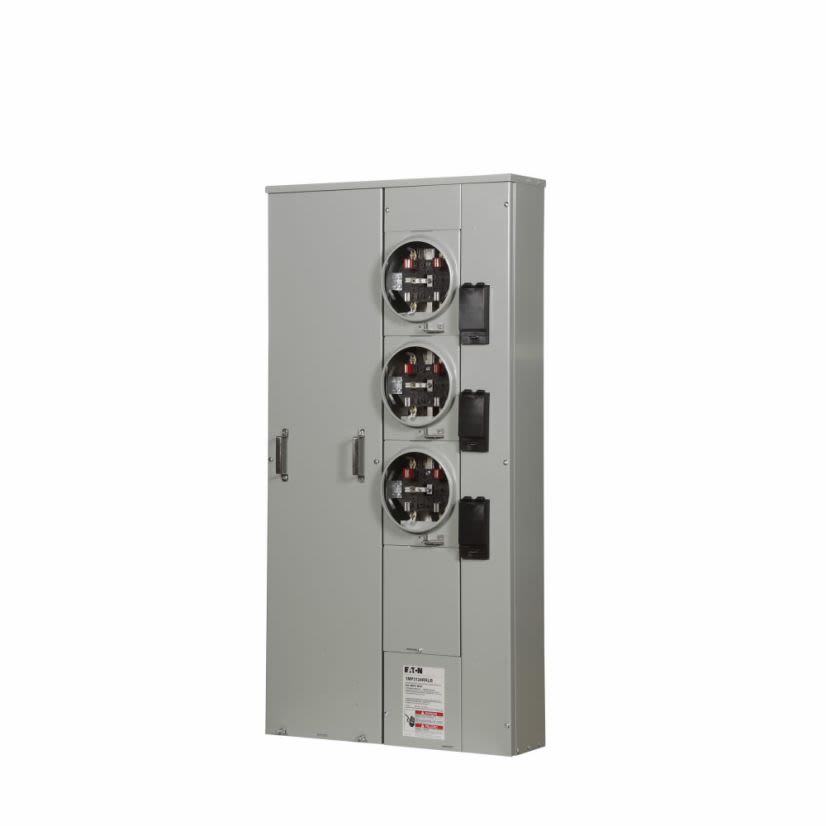

EATON 1MP3124RRLB Group Metering Horn Bypass Meter Pack, 125 A Socket, Underground Feed, 120/240 V AC, 400 A Bus
Cutler-Hammer Series 1MP3124RRLB
EATON 1MP3124RRLB Group Metering Horn Bypass Meter Pack, 125 A Socket, Underground Feed, 120/240 V AC, 400 A BusNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Meter Pack, Group Metering Horn Bypass, Underground Feed, 120/240 V AC, 400 A Bus, 125 A Socket, 3 Meter Sockets, 1 Phase, Ringless Socket Cover Style, 5 Socket Jaws, BR2/BRH2/BRHH2/BRX2/MN/WI/IA/MI Breaker, Plug-On Mounting, 7.01 in L x 36.28 in W x 8 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Breaker TypeBR2/BRH2/BRHH2/BRX2/MN/WI/IA/MI
Connection TypeLine/Load
Country of OriginUS
Dimensions7.01 in L x 36.28 in W x 8 in H
Enclosure TypeNEMA 4
FrameG
Frequency Rating50/60 Hz
Interrupt Rating65/14 kA
ManufacturerEaton
Mounting TypeBolted-On
Number of Poles2
Package TypeEACH
Phase1
SeriesC Series
Size of Wire10 to 1/0 AWG
Temperature Rating40 deg C
Trip TypeFixed Thermal/Fixed Magnetic/Non-Interchangeable
TypeGroup Metering Horn Bypass
Type / StyleGroup Metering Horn Bypass
Voltage120/240 VAC
Applications
Power Distribution and Indoor/Outdoor Applications
Warranty
1 year
Features
- Units are self-contained (main terminal box included for installations requiring up to six meter socket positions in a single enclosure
- Units are not gangable with any other metering device
- Series rating up to 100 kAIC
- Bondable neutral
- Provision for 2-pole breaker
- Aluminum bus housing
Specifications
Socket Jaws: 5
