Cutler-Hammer Series 1MP2204RRLB

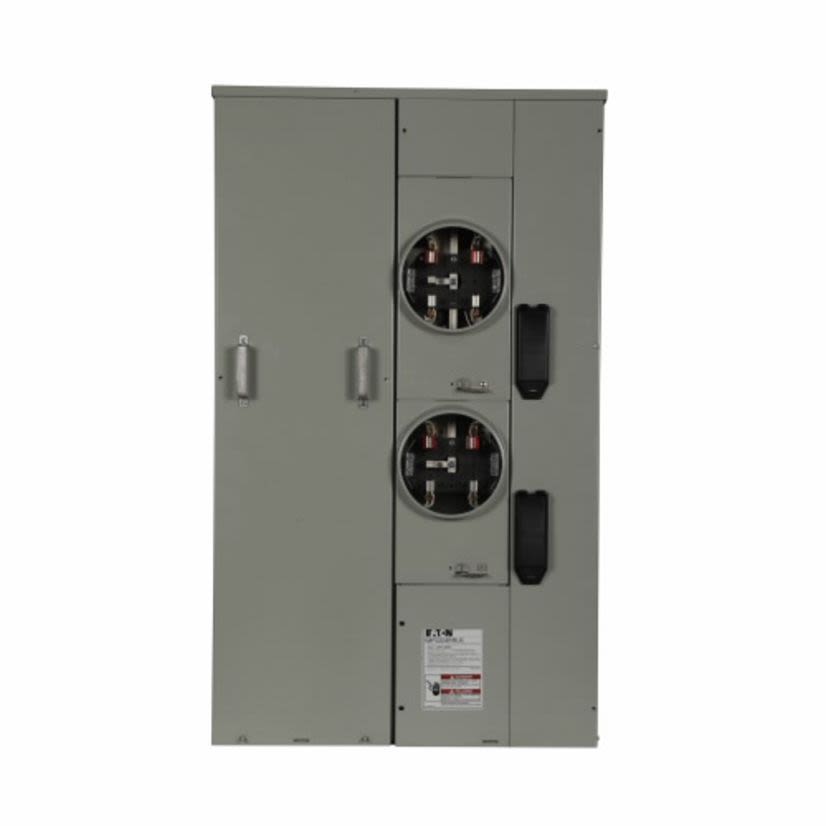

EATON 1MP2204RRLB Group Metering Meter Pack With Horn Bypass, 200 A Self-Contained Socket, Underground Feed, 120/240 V AC, 400 A Bus
Cutler-Hammer Series 1MP2204RRLB
EATON 1MP2204RRLB Group Metering Meter Pack With Horn Bypass, 200 A Self-Contained Socket, Underground Feed, 120/240 V AC, 400 A BusIn Stock: 1more info
|
In Stock: 1more info
|
Product Description
EATON Meter Pack, Group Metering, Self-Contained Socket, Underground Feed, 120/240 V AC, 400 A Bus, 200 A Socket, 2 Meter Sockets, 1 ph, Ringless Socket Cover Style, 5 Socket Jaws, Bolt-On/CCV2_X/CCVH2_X/CVS2_XMM/CV2_XMM/CVH2_XMM/MN/WI/IA/MI Breaker, 52.44 in L x 7.01 in W x 38.75 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Breaker TypeBolt-On/CCV2_X/CCVH2_X/CVS2_XMM/CV2_XMM/CVH2_XMM/MN/WI/IA/MI
Country of OriginUS
Dimensions52.44 in L x 7.01 in W x 38.75 in H
Enclosure TypeNEMA 3R
ManufacturerEaton
Mounting TypeFlush
Number of Circuits8
Number of Spaces4
Package Height38.75 in
Package Length52.44 in
Package TypeEACH
Package Weight151 lb
Package Width7.01 in
Phase1
SeriesTL Series
Size of Wire1 to 2/0 AWG
TypeGroup Metering
Type / StyleGroup Metering
Voltage120/240 VAC
Wiring Configuration3-Wire
Documents
Applications
Electrical Assemblies, Panels and OEMs Applications
Warranty
1 year
Features
- Units are self-contained (main terminal box included) for installations requiring up to six meter socket positions in a single enclosure
- Units are not gangable with any other metering device
- Series rating up to 100 kAIC
- Bondable neutral
- Provision for 2-pole breaker
- Underground incoming feed
- Aluminum bus housing
Specifications
- Socket Type: Self-Contained
- Socket Jaws:5
