Cutler-Hammer Series 1MP2122RRLB

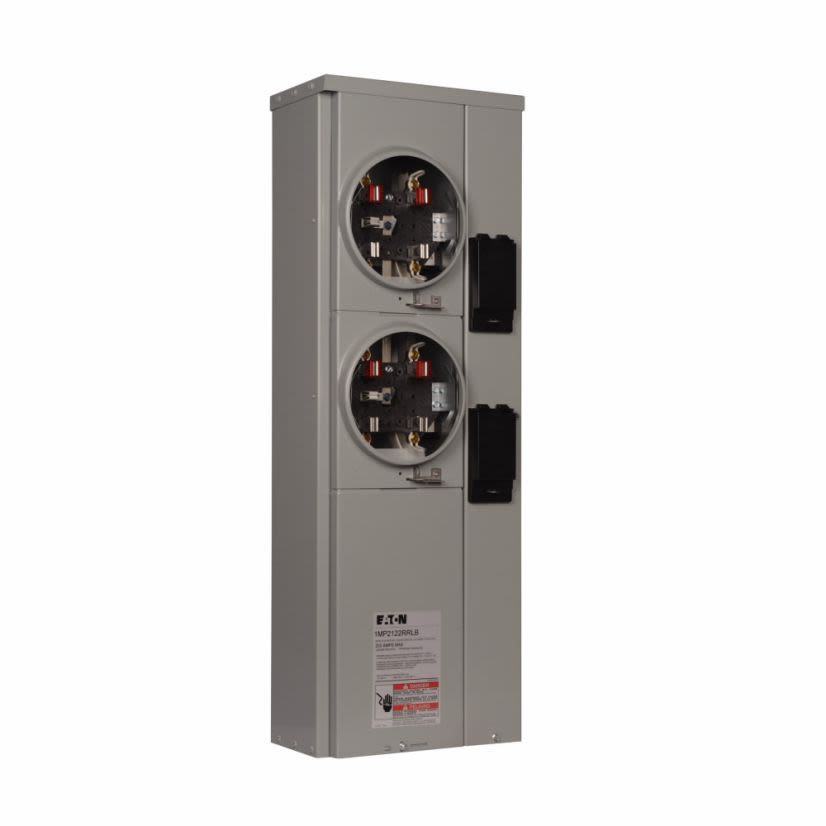

EATON 1MP2122RRLB Group Metering Horn Bypass Meter Pack, 125 A, Underground Feed, 120/240 V AC, 200 A Bus
Cutler-Hammer Series 1MP2122RRLB
EATON 1MP2122RRLB Group Metering Horn Bypass Meter Pack, 125 A, Underground Feed, 120/240 V AC, 200 A BusIn Stock: 4more info
|
BrandCutler-Hammer Series
MFG #1MP2122RRLB
Werner Part #543322
UPC786849052577
In Stock: 4more info
|
BrandCutler-Hammer Series
MFG #1MP2122RRLB
Werner Part #543322
UPC786849052577
Product Description
EATON Meter Pack, Group Metering Horn Bypass, Underground Feed, 120/240 V AC, 200 A Bus, 125 A Socket, 2 Meter Sockets, 1 ph, 6 AWG to 300 kcmil Wire, Ringless Socket Cover Style, 5 Socket Jaws, Plug-On/BR2/BRH2/BRHH2/BRX2/IA/MI/MN/WI Breaker, 7.01 in L x 12.25 in W x 8 in H
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Breaker TypePlug-On/BR2/BRH2/BRHH2/BRX2/IA/MI/MN/WI
Connection TypePlug-In
Country of OriginUS
Dimensions7.01 in L x 12.25 in W x 8 in H
Interrupt Rating10 kA
ManufacturerEaton
Number of Poles2
Package Height8 IN
Package Length36 in
Package TypeEACH
Package Weight35.7 lb
Package Width12.25 in
Phase1
Size of Wire6 AWG to 300 kcmil
Trip Range5
Trip TypeCommon
TypeGroup Metering Horn Bypass
Type / StyleGroup Metering Horn Bypass
Voltage120/240 VAC
Applications
Power Distribution and Indoor/Outdoor Applications
Warranty
1 year
Features
- Units are self-contained (main terminal box included for installations requiring up to six meter socket positions in a single enclosure
- Units are not gangable with any other metering device
- Series rating up to 100 kAIC
- Bondable neutral
- Provision for 2-pole breaker
- Underground incoming feed
- Aluminum bus housing
Specifications
Socket Jaws: 5
