General Electric TL18420C

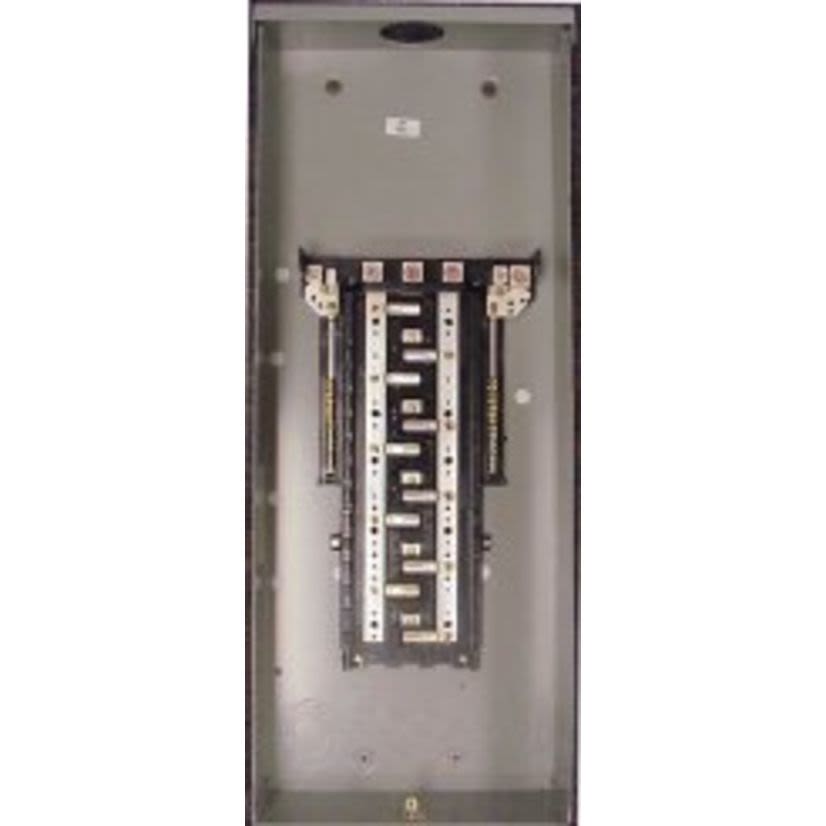

GE PowerMark Plus TL18420C 3-Phase Standard Main Lug Loadcenter, 208Y/120 V AC, 200 A, 65 kA Interrupt
General Electric TL18420C
GE PowerMark Plus TL18420C 3-Phase Standard Main Lug Loadcenter, 208Y/120 V AC, 200 A, 65 kA InterruptNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
GE PowerMark Plus Main Lug Loadcenter, 3-Phase Standard, 208Y/120 V AC, 200 A, 65 kA Interrupt, 18 Circuits, THQL Breaker, 4-Wire Wiring Configuration, 18 Spaces, 1 AWG to 250 kcmil, 2/0 AWG to 250 kcmil Wire, Flush Mounting, NEMA 1 Enclosure, NEMA 8 Enclosure Box, 26-7/16 in H x 14 in W x 3-3/4 in D Dimensions
Attributes
Documents
Applications
Features
Attributes
Breaker TypeTHQL
Country of OriginUnited States
Dimensions26-7/16 in H x 14 in W x 3-3/4 in D
Enclosure Box SizeNEMA 8
Enclosure TypeNEMA 1
FinishGalvanized/Painted
Horsepower5 hp, 7.5 hp, 10 hp, 20 hp, 30 hp
Interrupt Rating65 kA
ManufacturerABB
MaterialSteel
Number of Circuits18
Number of Poles3
Number of Spaces18
Number of Wires3
Package TypeEACH
Phase1/3 ph
SeriesK Series
Size of Wire1 AWG to 250 kcmil, 2/0 AWG to 250 kcmil
Type3-Phase Standard
Type / Style3-Phase Standard
Voltage208Y/120 VAC
Wiring Configuration4-Wire
Applications
Electrical Distribution, Control, Indoor, Commercial and High Rise Residential Applications
Features
- Suitable for use as service entrance equipment when installed in accordance with the NEC standard
- 6 to 42 circuit devices UL listed for bottom mounted lug by installing complete unit box, interior and front upside down
- 60 to 70 deg C conductor rating
- Main lug models field convertible to main breaker
- Split neutrals extend the full length of the interior for ease of wiring
- Entire main lug line converts easily to main breaker
- Front packed in inner carton for added protection
- Straight through main wiring
- Compact box maintains optimum wire bending space
- Aluminum bus with copper mounting stabs providing copper-to-copper stab connections
- Top and bottom feed
- 1-piece interior removes and reinstalls easily
- Full length neutrals are easier to wire, 2 reducing installation time and cost
- Minimum 100% neutral terminations
- Combination slotted/Robertson square drive speeds screw wiring
- Tie bar may be removed to split neutral/ground
- (18) 1 in space
- 2/0 AWG to 250 kcmil aluminum
- Combination mounting
