Cutler-Hammer Series CH42L3225G

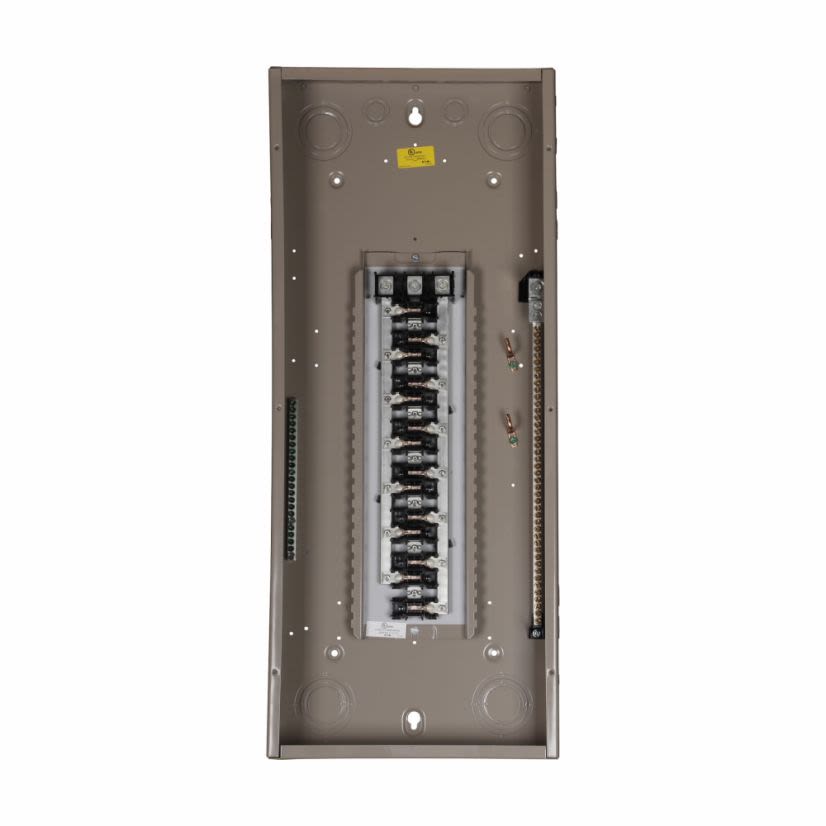

EATON CH42L3225G 3-Phase Standard Main Lug Loadcenter, 208Y/120 VAC, 240 VAC, 225 A, 42 Poles, 35 kA Interrupt
Cutler-Hammer Series CH42L3225G
EATON CH42L3225G 3-Phase Standard Main Lug Loadcenter, 208Y/120 VAC, 240 VAC, 225 A, 42 Poles, 35 kA InterruptIn Stock: 3more info
|
In Stock: 3more info
|
Product Description
EATON Main Lug Loadcenter, 3-Phase Standard, 208Y/120 VAC, 240 VAC, 225 A, 42 Pole, 35 kA Interrupt, 42 Circuits, CH Breaker, Plug-On Breaker Mounting, 4-Wire Wiring Configuration, 42 Spaces, 4 AWG to 300 kcmil Wire, Flush Mount, NEMA 1, G Enclosure Box, Metal Housing, 14.31 in W x 3.88 in D x 34.13 in H
Attributes
Documents
Applications
Features
Specifications
Attributes
Breaker TypeCH
Country of OriginUS
Dimensions14.31 in W x 3.88 in D x 34.13 in H
Enclosure Box SizeG
Enclosure TypeNEMA 1
Housing MaterialMetal
Interrupt Rating35 kA
ManufacturerEaton
Mounting TypePlug-On Breaker Mounting - Flush/Surface Mounting
Number of Circuits42
Number of Poles42
Number of Spaces42
Package TypeEACH
Phase3-phase
Size of Wire6 to 1/0 AWG
Type3-Phase Standard
Type / StyleMain Lug Only
Voltage120/240 VAC
Wiring Configuration4-Wire
Documents
Applications
Electrical Assemblies, Panels and EOEM and Power Distribution Applications
Features
- Ground bar type GBK21 is installed
- Suitable for use as service equipment when a circuit breaker is used as a main breaker
- The main breaker is back-fed and requires hold down bracket kit catalog number CH125RB
- Copper bus housing
- Without CH8GF combination and CH8DS surface covers
- Metallic enclosure
- Overhead/underground feed applications
- Furnished with hub closure plates
Specifications
Standard: UL 67; UL 50
