Cutler-Hammer Series CH24L3125C

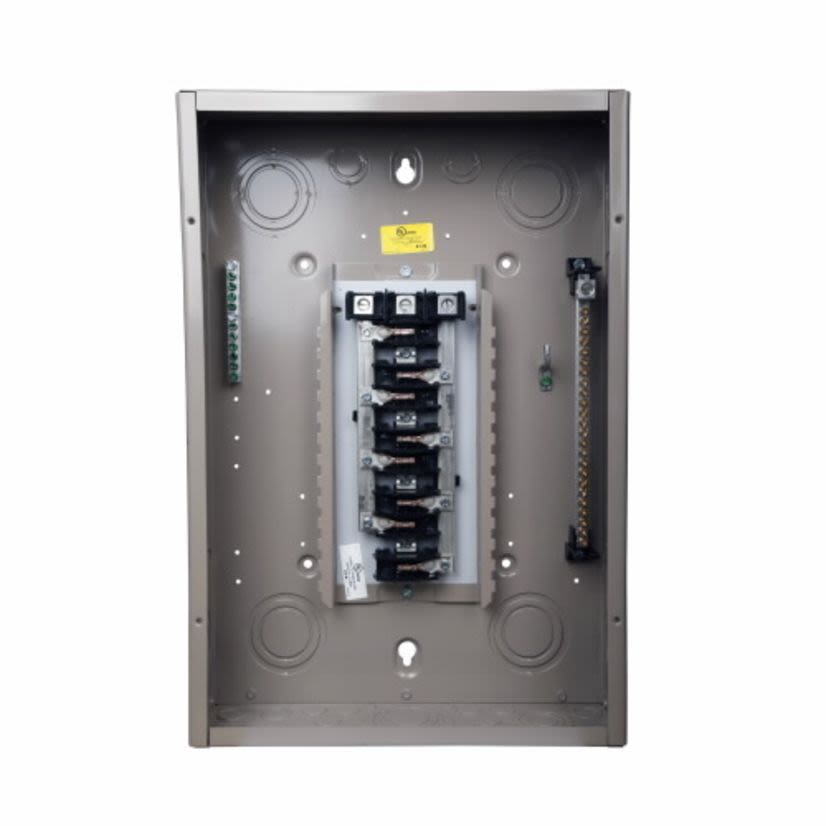

EATON CH24L3125C 3-Phase Standard Main Lug Loadcenter, 208Y/120 VAC, 240 VAC, 125 A, 24 Poles, 35 kA Interrupt
Cutler-Hammer Series CH24L3125C
EATON CH24L3125C 3-Phase Standard Main Lug Loadcenter, 208Y/120 VAC, 240 VAC, 125 A, 24 Poles, 35 kA InterruptIn Stock: 7more info
|
BrandCutler-Hammer Series
MFG #CH24L3125C
Werner Part #24379
UPC782113097657
In Stock: 7more info
|
BrandCutler-Hammer Series
MFG #CH24L3125C
Werner Part #24379
UPC782113097657
Product Description
EATON Main Lug Loadcenter, 3-Phase Standard, 208Y/120 VAC, 240 VAC, 125 A, 24 Pole, 35 kA Interrupt, 24 Circuits, CH Breaker, Plug-On Breaker Mounting, 4-Wire Wiring Configuration, 24 Spaces, 4/0 to 1 AWG Wire, Flush Mount, NEMA 1, C Enclosure Box, Metal Housing, 14.31 in W x 5.19 in D x 21 in H
Attributes
Documents
Applications
Features
Specifications
Attributes
Breaker TypeCH
Connection TypePlug-On
Country of OriginUS
Dimensions14.31 in W x 5.19 in D x 21 in H
Enclosure Box SizeC
Enclosure TypeNEMA 1
Housing MaterialMetal
Interrupt Rating35 kA
ManufacturerEaton
Mounting TypePlug-On
Number of Circuits24
Number of Poles24
Number of Spaces24
Package TypeEACH
Size of Wire14 to 8 AWG
Trip TypeTrip-to-Center
Type3-Phase Standard
Type / Style3-Phase Standard
Voltage208Y/120 VAC, 240 VAC
Wiring Configuration4-Wire
Applications
Electrical Assemblies, Panels and EOEM and Power Distribution Applications
Features
- Ground bar type GBK14 is installed
- Suitable for use as service equipment when a circuit breaker is used as a main breaker
- The main breaker is back-fed and requires hold down bracket kit catalog number CH125RB
- Suitable for use as service equipment when not more than six service disconnecting mains are provided
- Overhead/underground feed applications
- 6-2/0 AWG wire size range copper/aluminum at 60 or 75 deg C for main lugs
- Furnished with hub closure plates
Specifications
Breaker Mounting: Plug-On
