Cutler-Hammer Series 3BR3042L200

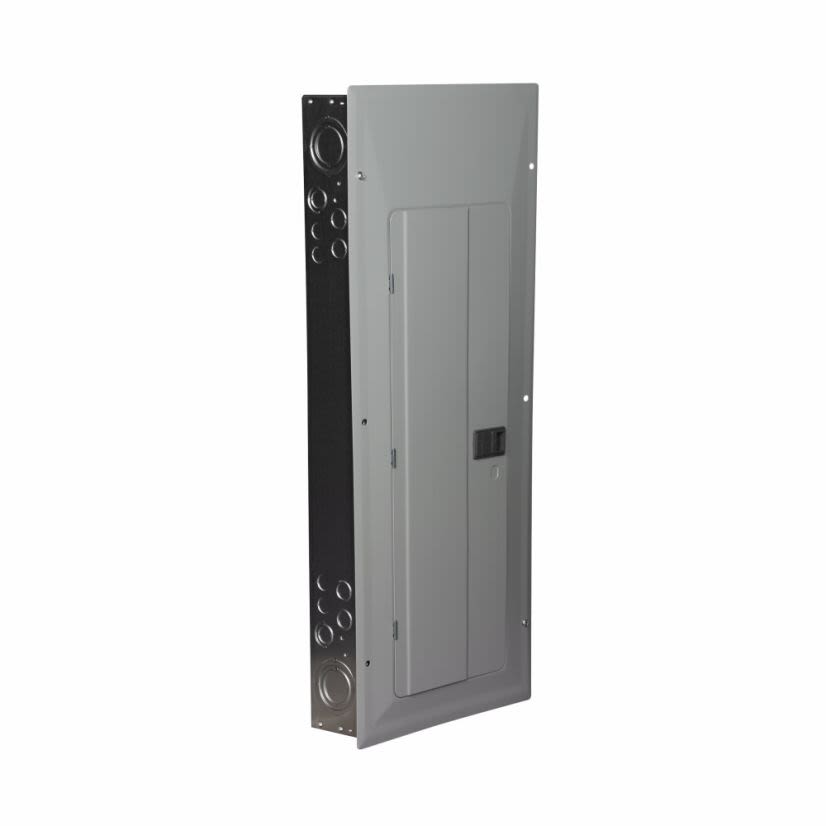

EATON 3BR3042L200 3-Phase Metallic Main Lug Loadcenter, 120/208Y/240 V AC, 200 A, 42 Poles, 25 kA Interrupt
EATON 3BR3042L200 3-Phase Metallic Main Lug Loadcenter, 120/208Y/240 V AC, 200 A, 42 Poles, 25 kA Interrupt

Cutler-Hammer Series 3BR3042L200

EATON 3BR3042L200 3-Phase Metallic Main Lug Loadcenter, 120/208Y/240 V AC, 200 A, 42 Poles, 25 kA Interrupt
Non-stock product. Available to order - lead time may vary.

BrandCutler-Hammer Series

MFG #3BR3042L200

Werner Part #509205

UPC786676442305

Non-stock product. Available to order - lead time may vary.

BrandCutler-Hammer Series

MFG #3BR3042L200

Werner Part #509205

UPC786676442305

Product Description

EATON Main Lug Loadcenter, 3-Phase Metallic, 120/208Y/240 V AC, 200 A, 42 Pole, 25 kA Interrupt, 42 Circuits, BR/BWH Breaker, 4-Wire Wiring Configuration, 30 Spaces, 1 AWG to 300 kcmil Wire, Flush Mount, NEMA 1, NEMA G1 Enclosure Box, 35.75 in L x 15.8 in W x 4.5 in H
Attributes
Breaker TypeBR/BWH
Connection TypeLine/Load
Country of OriginUS
Dimensions35.75 in L x 15.8 in W x 4.5 in H
Enclosure Box SizeNEMA G1
Enclosure TypeNEMA 1
FrameG
Frequency Rating50/60 Hz
Interrupt Rating25 kA
ManufacturerEaton
Mounting TypeBolted-On
Number of Circuits42
Number of Poles42
Number of Spaces30
Package TypeEACH
Phase3
SeriesC Series
Size of Wire14 to 10 AWG
Temperature Rating40 deg C
Trip TypeFixed Thermal/Fixed Magnetic/Non-Interchangeable
Type3-Phase Metallic
Type / Style3-Phase Metallic
Voltage208Y/120/240 VAC
Wiring Configuration4-Wire
