Cutler-Hammer Series 3BR2442L150R

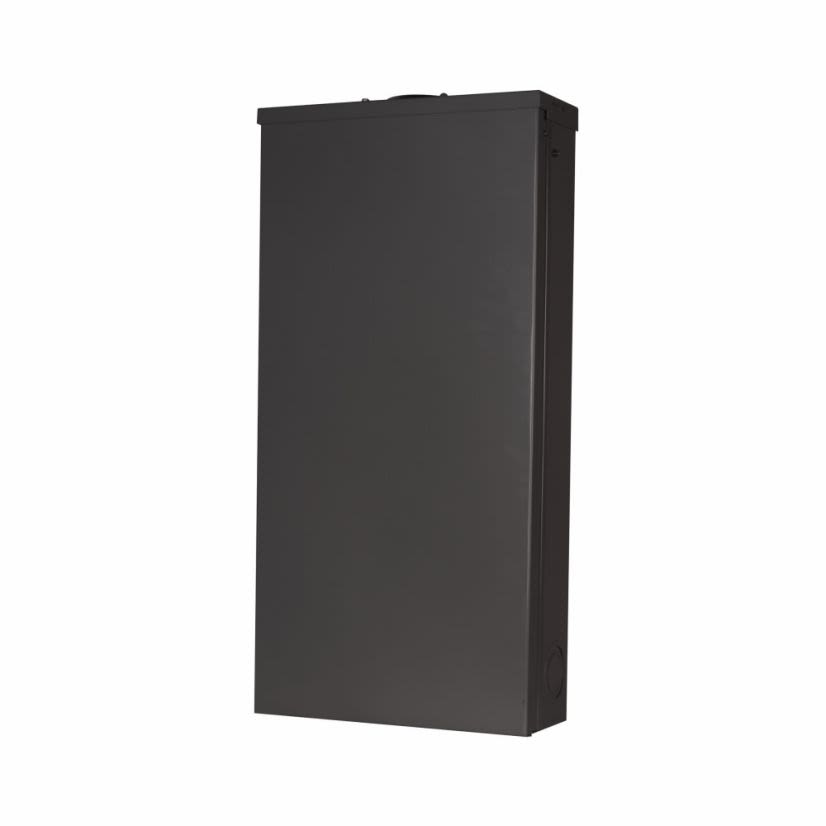

EATON 3BR2442L150R 3-Phase Metallic Main Lug Loadcenter, 120/208Y/240 V AC, 150 A, 42 Poles, 25 kA Interrupt
Cutler-Hammer Series 3BR2442L150R
EATON 3BR2442L150R 3-Phase Metallic Main Lug Loadcenter, 120/208Y/240 V AC, 150 A, 42 Poles, 25 kA InterruptNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Main Lug Loadcenter, 3-Phase Metallic, 120/208Y/240 V AC, 150 A, 42 Pole, 25 kA Interrupt, 42 Circuits, BR/BWH Breaker, 4-Wire Wiring Configuration, 24 Spaces, 1 AWG to 300 kcmil Wire, Surface Mount, NEMA 3R, NEMA D1R Enclosure Box, 5.19 in L x 14.31 in W x 21 in H
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
Breaker TypeBR/BWH
Connection TypePlug-On Neutral
Country of OriginUS
Dimensions5.19 in L x 14.31 in W x 21 in H
Enclosure Box SizeNEMA D1R
Enclosure TypeNEMA 3R
Interrupt Rating25 kA
ManufacturerEaton
Mounting TypePlug-On
Number of Circuits42
Number of Poles42
Number of Spaces24
Package TypeEACH
Size of Wire1 AWG to 300 kcmil
Type3-Phase Metallic
Type / Style3-Phase Metallic
Voltage208Y/120/240 VAC
Wiring Configuration4-Wire
Documents
Applications
Power Distribution and Commercial Applications
Included
Cover
Warranty
10 years
Features
- BR loadcenters have standard tin plated aluminum bus with a limited availability of copper bus
- Raintight boxes are manufactured from galvanized steel, then finished using an electrostatic powder coated, baked urethane paint process
- Flexible neutral design
- Tangential main knockout
- Single key hole mounting
- Factory pre-attached neutral bonding strap
- For use with type BR 1 in breakers
- Outdoor rainproof enclosure
- Copper aluminum wire at 60 to 75 deg C for main lugs
- Standard tin plated aluminum bus for excellent conductivity and corrosion-resistance
- No feed-through lugs
