General Electric TM42420R

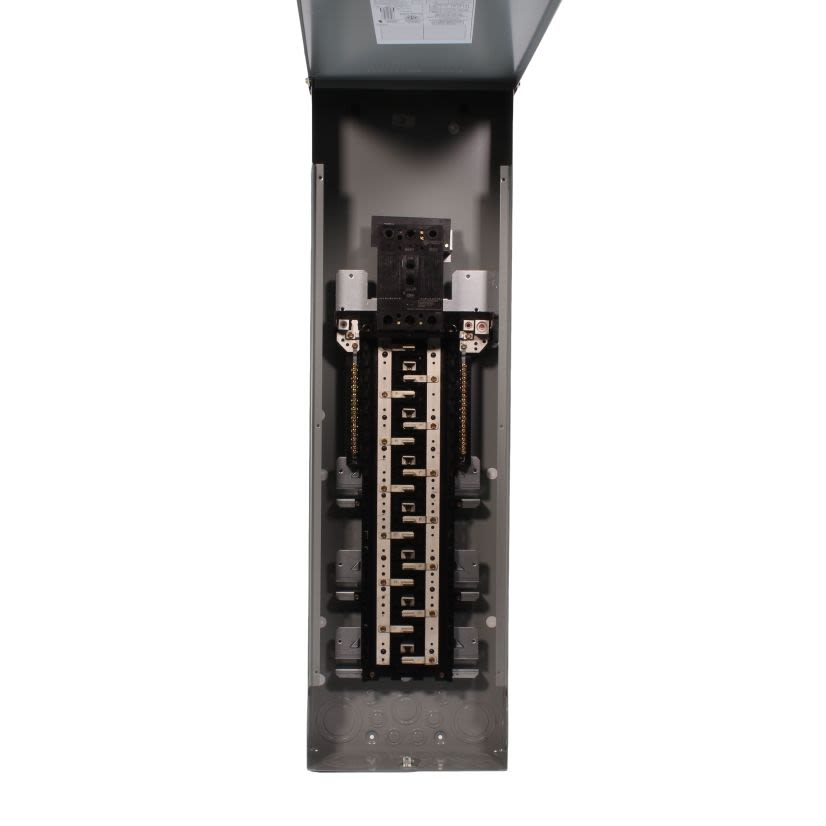

GE PowerMark Plus Industrial Solutions TM42420R 3-Phase Standard Main Circuit Breaker Loadcenter, 208Y/120 V AC, 200 A, 1 Pole, 22 kA Interrupt
General Electric TM42420R
GE PowerMark Plus Industrial Solutions TM42420R 3-Phase Standard Main Circuit Breaker Loadcenter, 208Y/120 V AC, 200 A, 1 Pole, 22 kA InterruptNon-stock product. Available to order - lead time may vary.
BrandGeneral Electric
MFG #TM42420R
Werner Part #482548
UPC783164190267
Non-stock product. Available to order - lead time may vary.
BrandGeneral Electric
MFG #TM42420R
Werner Part #482548
UPC783164190267
Product Description
GE PowerMark Plus Industrial Solutions Main Circuit Breaker Loadcenter, 3-Phase Standard, 208Y/120 V AC, 200 A, 1 Pole, 22 kA Interrupt, 42 Circuits, THQL Breaker, 4-Wire Wiring Configuration, 42 Spaces, 1 AWG to 250 kcmil, 2/0 AWG to 250 kcmil Wire, Flush Mounting, NEMA 3R Enclosure, NEMA R8 Enclosure Box, 43-11/16 in H x 12-1/2 in W x 5-3/4 in D Dimensions
Attributes
Documents
Applications
Features
Attributes
Actuator TypeToggle Handle
Breaker TypeTHQL
Connection TypeBox Lug
Country of OriginUnited States
Dimensions43-11/16 in H x 12-1/2 in W x 5-3/4 in D
Enclosure Box SizeNEMA R8
Enclosure TypeNEMA 3R
Interrupt Rating22 kA
ManufacturerABB
Mounting TypePlug-On
Number of Circuits42
Number of Poles1
Number of Spaces42
Package Length44.69 in
Package TypeEACH
Package Volume3905.28 cu-in
Package Weight52.09 lb
Package Width13.56 in
Size of Wire(1) 14 to 8 AWG, (2) 14 to 10 AWG Copper/Aluminum
Temperature Rating60 to 75 deg C
Type3-Phase Standard
Type / Style3-Phase Standard
Voltage208Y/120 VAC
Wiring Configuration4-Wire
Applications
Outdoor, Commercial, High Rise Residential, Electrical Distribution and Control Applications
Features
- Suitable for use as service entrance equipment when installed in accordance with the national electrical Code
- 6 to 42 circuit devices UL listed for bottom mounted lug by installing complete unit box, interior and front upside down
- 60 to 70 deg C conductor rating
- Main lug models field convertible to main breaker
- Split neutrals extend the full length of the interior for ease of wiring
- Entire main lug line converts easily to main breaker
- Front packed in inner carton for added protection
- Straight through main wiring
- Compact box maintains optimum wire bending space
- Top feed
- (42) 1 in space
- 1 AWG to 250 kcmil copper, 2/0 AWG to 250 kcmil aluminum wire
