General Electric TM42420C

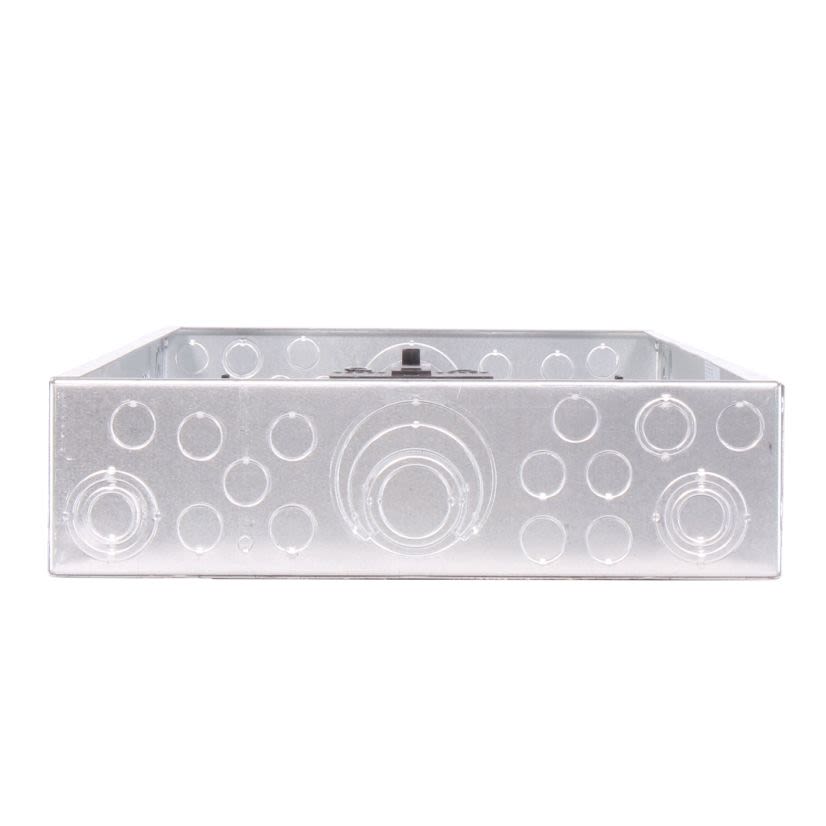

GE PowerMark Plus Industrial Solutions TM42420C 3-Phase Standard Main Circuit Breaker Loadcenter, 208Y/120 V AC, 200 A, 1 Pole, 22 kA Interrupt
General Electric TM42420C
GE PowerMark Plus Industrial Solutions TM42420C 3-Phase Standard Main Circuit Breaker Loadcenter, 208Y/120 V AC, 200 A, 1 Pole, 22 kA InterruptNon-stock product. Available to order - lead time may vary.
BrandGeneral Electric
MFG #TM42420C
Werner Part #32397
UPC783164190045
Non-stock product. Available to order - lead time may vary.
BrandGeneral Electric
MFG #TM42420C
Werner Part #32397
UPC783164190045
Product Description
GE PowerMark Plus Industrial Solutions Main Circuit Breaker Loadcenter, 3-Phase Standard, 208Y/120 V AC, 200 A, 1 Pole, 22 kA Interrupt, 42 Circuits, THQL Breaker, 4-Wire Wiring Configuration, 62 Spaces, 1 AWG to 250 kcmil, 2/0 AWG to 250 kcmil Wire, Flush Mounting, NEMA 1 Enclosure, NEMA 14 Enclosure Box, 43-7/16 in H x 14 in W x 3-3/4 in D Dimensions
Attributes
Documents
Applications
Features
Attributes
Breaker TypeTHQL
Connection TypePlug-In/Lug-In/Lug-Out
Country of OriginUnited States
Dimensions43-7/16 in H x 14 in W x 3-3/4 in D
Enclosure Box SizeNEMA 14
Enclosure TypeNEMA 1
FrameQP/MP
Frequency Rating50/60 Hz
Interrupt Rating22 kA
ManufacturerABB
Number of Circuits42
Number of Poles1
Number of Spaces62
Package Length45.5 in
Package TypeEACH
Package Volume4008.96 cu-in
Package Weight43.23 lb
Package Width16 IN
Phase3
Size of Wire14 to 6 AWG, 12 to 6 AWG
Temperature Rating40 deg C
Trip TypeThermal/Magnetic
Type3-Phase Standard
Type / Style3-Phase Standard
Voltage208Y/120 VAC
Wiring Configuration4-Wire
Applications
Indoor, Commercial, High Rise Residential, Electrical Distribution and Control Applications
Features
- Suitable for use as service entrance equipment when installed in accordance with the national electrical Code
- 6 to 42 circuit devices UL listed for bottom mounted lug by installing complete unit box, interior and front upside down
- 60 to 70 deg C conductor rating
- Main lug models field convertible to main breaker
- Split neutrals extend the full length of the interior for ease of wiring
- Entire main lug line converts easily to main breaker
- Front packed in inner carton for added protection
- Straight through main wiring
- Compact box maintains optimum wire bending space
- Top feed
- Combination mounting
- (42) 1 in, (20) 1/2 in space
- 1 AWG to 250 kcmil copper, 2/0 AWG to 250 kcmil aluminum wire
