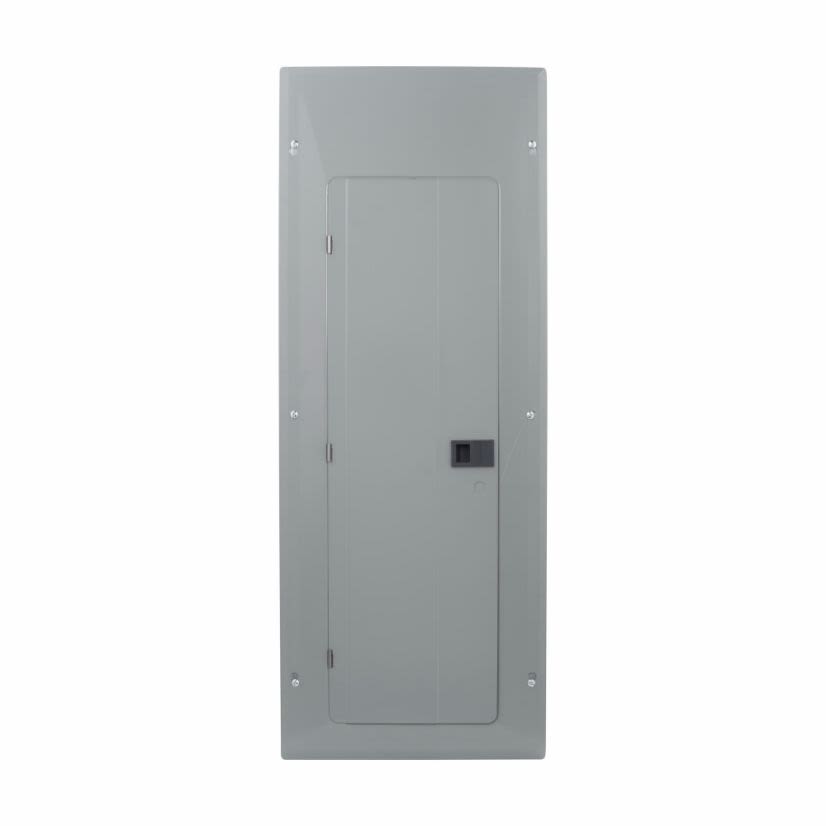

Cutler-Hammer Series BRP40BC200
EATON BRP40BC200 1-Phase Main Breaker Load Center, 120/240 V AC, 200 A, 1 Poles, 25 kA Interrupt
Cutler-Hammer Series BRP40BC200
EATON BRP40BC200 1-Phase Main Breaker Load Center, 120/240 V AC, 200 A, 1 Poles, 25 kA InterruptIn Stock: 5more info
|
In Stock: 5more info
|
Product Description
EATON Main Breaker Load Center, 1-Phase, 120/240 V AC, 200 A, 1 Pole, 25 kA Interrupt, 40 Circuits, BR/CSR Breaker, 3-Wire Wiring Configuration, 40 Spaces, 2 AWG to 300 kcmil Wire, Plug-On Mounting, NEMA 1 Enclosure, X8 Enclosure Box, Galvanized Steel Housing Material, 39 in L x 14.31 in W x 3.88 in H Dimensions
Attributes
Documents
Features
Included
Warranty
Applications
Attributes
Breaker TypeBR/CSR
Country of OriginUS
Dimensions39 in L x 14.31 in W x 3.88 in H
Enclosure Box SizeX8
Enclosure TypeNEMA 1
Height9.8552 cm
Housing MaterialGalvanized Steel
Interrupt Rating25 kA
Length99.06 cm
ManufacturerEaton
Mounting TypeCombination
Number of Circuits40
Number of Poles1
Number of Spaces40
Phase1
Special FeaturesCover included X8
Type1-Phase
Voltage120/240 V
Width36.3474 cm
Wiring Configuration3-Wire
Features
- Extra 1-1/2 in knockout, larger knockout provides easier installation and time savings for renovation installations
- Straight-in wiring saves labor and material
- One panel for either top or bottom applications
- 2/0 AWG lug, easily removable and can be installed in any location on the neutral bar
- Type BR AFCI breakers, compact design for easier wiring and improved wireway access, provides a clean gutter space
- Standard Tin-plated aluminum bus for excellent conductivity and corrosion-resistance
- Tangential center knockout - easier installation for conduit applications
- Commercial grade main breaker, 25 kA series rated main breaker for superior protection
- Neutral bus, easily removable for sub-panel applications
- Bonding Z-strap, provides easy field conversion for service entrance applications
- Steel backpan provides solid and reliable breaker mounting, single piece design for stability and durability
- 2 AWG to 300 kcmil copper/aluminum wire
Included
Cover and Combination Trim
Warranty
10 years
Applications
Electrical Assemblies, Panels and EOEMs, Indoor, Residential and Light Commercial Applications
