Cutler-Hammer Series 3BR3042B125

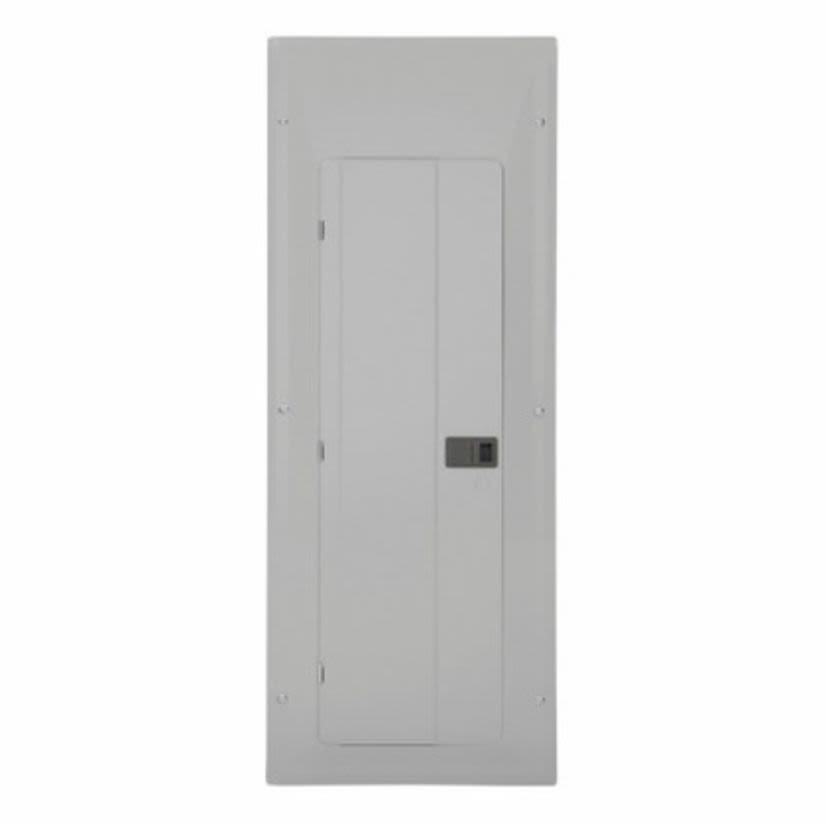

EATON 3BR3042B125 3-Phase Main Circuit Breaker Load Center, 208Y/120/240 V AC, 125 A, 10 kA Interrupt
Cutler-Hammer Series 3BR3042B125
EATON 3BR3042B125 3-Phase Main Circuit Breaker Load Center, 208Y/120/240 V AC, 125 A, 10 kA InterruptNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Main Circuit Breaker Load Center, 3-Phase, 208Y/120/240 V AC, 125 A, 10 kA Interrupt, 42 Circuits, BR/CC Breaker, 4-Wire Wiring Configuration, 30 Spaces, 6 to 4/0 AWG Wire, Flush Mounting, NEMA 1 Enclosure, NEMA L1 Enclosure Box, Metal Housing Material, 3.88 in L x 14.31 in W x 27 in H Dimensions
Attributes
Documents
Applications
Features
Included
Warranty
Attributes
Breaker TypeBR/CC
Country of OriginUS
Dimensions3.88 in L x 14.31 in W x 27 in H
Enclosure Box SizeNEMA L1
Enclosure TypeNEMA 1
Housing MaterialMetal
Interrupt Rating10 kA
ManufacturerEaton
NEMA RatingNEMA 1
Number of Circuits42
Number of Spaces30
Package TypeEACH
Phase3 phase
SeriesPow-R-Xpress
Type3-Phase
Voltage10 KAIC
Wiring Configuration4-Wire
Documents
Applications
Datacenters, IT Space, CI and Hyper Converged, Electrical Assemblies, Panels and EOEMs, Generation - Conventional Energy, Renewable Energy, Alternative Energy, Marine Vessels and Equipment, Type BR Breakers, Power Distribution, Commercial, CI and Hyper Converged Applications
Features
- BR loadcenters have standard tin plated aluminum bus with a limited availability of copper bus
- Raintight boxes are manufactured from galvanized steel, then finished using an electrostatic powder coated, baked urethane paint process
- Flexible neutral design
- Tangential main knockout
- Single key hole mounting
- Factory pre-attached neutral bonding strap
- No feed-thorough lugs
- Aluminum bus housing
- Without feed-through lugs
Included
Cover
Warranty
10 years
