Cutler-Hammer Series CHP30B100X5

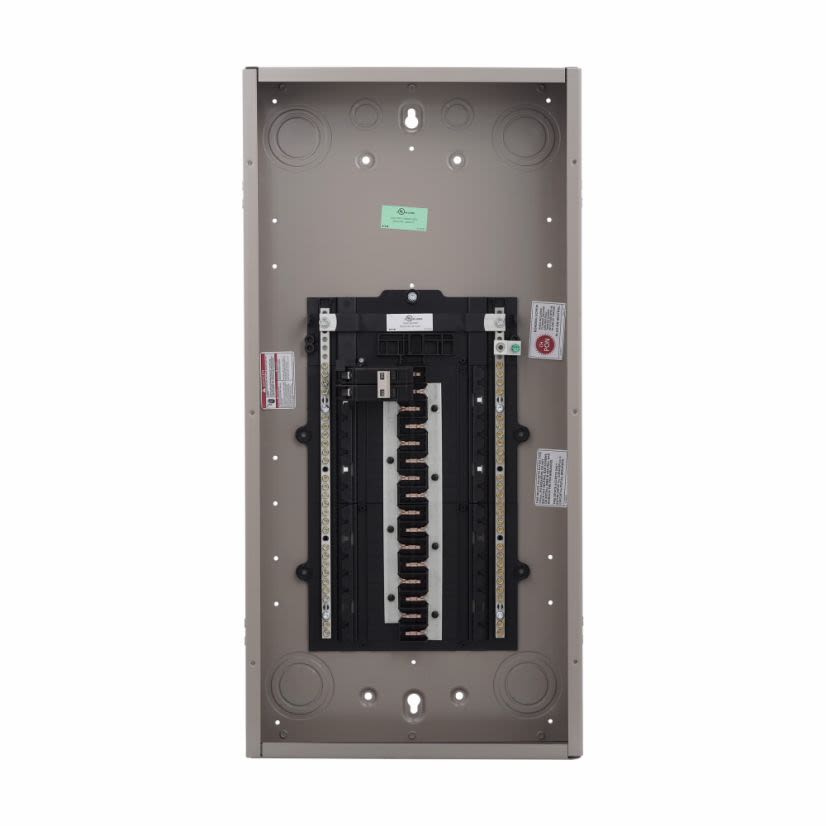

EATON CHP30B100X5 1-Phase Insulated/Bondable Split Main Breaker Load Center, 120/240 V AC, 100 A, 60 Poles, 10 kA Interrupt
Cutler-Hammer Series CHP30B100X5
EATON CHP30B100X5 1-Phase Insulated/Bondable Split Main Breaker Load Center, 120/240 V AC, 100 A, 60 Poles, 10 kA InterruptIn Stock: 7more info
|
BrandCutler-Hammer Series
MFG #CHP30B100X5
Werner Part #4225674
UPC786679189597
In Stock: 7more info
|
BrandCutler-Hammer Series
MFG #CHP30B100X5
Werner Part #4225674
UPC786679189597
Product Description
EATON Main Breaker Load Center, 1-Phase Insulated/Bondable Split, 120/240 V AC, 100 A, 60 Pole, 10 kA Interrupt, 30 Circuits, CH Breaker, Plug-On Neutral Breaker Mounting, 3 Wiring Configuration, 30 Spaces, 6 to 1/0 AWG Wire, Plug-On Mount, NEMA 1, X5 Enclosure Box, Sheet Steel Housing, 29 in L x 14.31 in W x 3.88 in H
Attributes
Documents
Applications
Features
Warranty
Attributes
Breaker TypeCH
Connection TypeTerminal Block
Country of OriginUS
Dimensions29 in L x 14.31 in W x 3.88 in H
Enclosure Box SizeX5
Enclosure TypeNEMA 1
Housing MaterialSheet Steel
Interrupt Rating10 kA
ManufacturerEaton
Mounting TypeLeft/Right Pole
Number of Circuits30
Number of Poles60
Number of Spaces30
Package Height3.88 in
Package Length29 in
Package TypeEACH
Package Weight15.6 lb
Package Width14.31 in
Suitable For Use WithC Series Type HMCP J-Frame Molded Case Circuit Breaker
Type1-Phase Insulated/Bondable Split
Wiring Configuration3
Applications
Electrical Assemblies, Panels, EOEMs, Residential Load Centers, Meter Breaker Panels, Light Commercial Distribution Panels, Pool Panels, Residential Transfer Switch Panels, Various OEM and Indoor Applications
Features
- Extra 1-1/2 in knockout, larger knockout provides easier installation and time savings for renovation installations
- Straight-in wiring saves labor and material
- One panel for either top or bottom applications
- 2/0 AWG lug - easily removable and can be installed in any location on the neutral bar
- One-piece silver flash plated copper bus provides superior conductivity throughout the entire product line
- Drywall marking on enclosure, indicates proper mounting depth for flush applications
- Steel backpan provides solid and reliable breaker mounting, single piece design for stability and durability
- Tangential center knockout - easier installation for conduit applications
- Neutral bus, easily removable for sub-panel applications
- Bonding Z-strap provides easy field conversion for service entrance applications
- Twin neutral bars, minimum 150% neutral capacity
- Without covers
- 6 to 1/0 AWG copper/aluminum wire size
Warranty
Limited Lifetime
