Cutler-Hammer Series CHP22B100X2

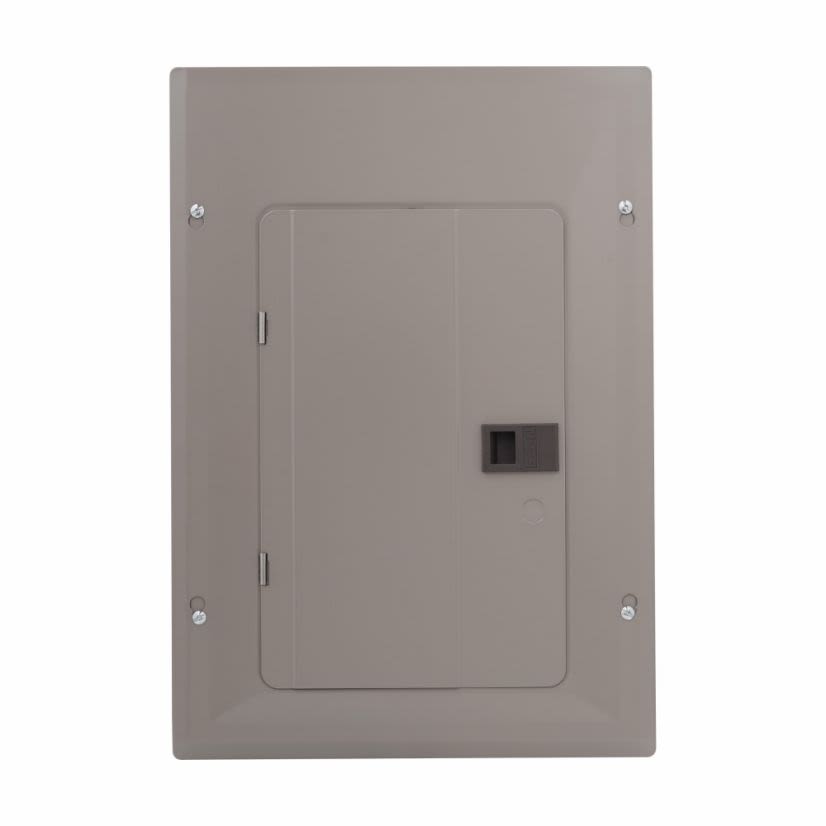

EATON CHP22B100X2 1-Phase Insulated/Bondable Split Main Breaker Load Center, 120/240 V AC, 100 A, 44 Poles, 10 kA Interrupt
Cutler-Hammer Series CHP22B100X2
EATON CHP22B100X2 1-Phase Insulated/Bondable Split Main Breaker Load Center, 120/240 V AC, 100 A, 44 Poles, 10 kA InterruptIn Stock: 9more info
|
BrandCutler-Hammer Series
MFG #CHP22B100X2
Werner Part #4225673
UPC786679189559
In Stock: 9more info
|
BrandCutler-Hammer Series
MFG #CHP22B100X2
Werner Part #4225673
UPC786679189559
Product Description
EATON Main Breaker Load Center, 1-Phase Insulated/Bondable Split, 120/240 V AC, 100 A, 44 Pole, 10 kA Interrupt, 22 Circuits, CH Breaker, Plug-On Neutral Breaker Mounting, 3 Wiring Configuration, 22 Spaces, 6 to 1/0 AWG Wire, Plug-On Mount, NEMA 1, X2 Enclosure Box, Sheet Steel Housing, 21 in L x 14.31 in W x 3.88 in H
Attributes
Documents
Applications
Features
Warranty
Attributes
Breaker TypeCH
Connection TypeLine/Load Lug
Country of OriginUS
Dimensions21 in L x 14.31 in W x 3.88 in H
Enclosure Box SizeX2
Enclosure TypeNEMA 1
Frame600A
Frequency Rating50/60 Hz
Housing MaterialSheet Steel
Interrupt Rating10 kA
ManufacturerEaton
Number of Circuits22
Number of Poles44
Number of Spaces22
Package Height3.88 in
Package Length21 in
Package TypeEACH
Package Weight12.3 lb
Package Width14.31 in
Phase3
SeriesVL Series
Temperature Rating40 deg C
Trip TypeLI/Non-Interchangeable Thermal Magnetic
Type1-Phase Insulated/Bondable Split
Wiring Configuration3
Applications
Electrical Assemblies, Panels, EOEMs, Residential Load Centers, Meter Breaker Panels, Light Commercial Distribution Panels, Pool Panels, Residential Transfer Switch Panels, Various OEM and Indoor Applications
Features
- Extra 1-1/2 in knockout, larger knockout provides easier installation and time savings for renovation installations
- Straight-in wiring saves labor and material
- One panel for either top or bottom applications
- 2/0 AWG lug - easily removable and can be installed in any location on the neutral bar
- One-piece silver flash plated copper bus provides superior conductivity throughout the entire product line
- Drywall marking on enclosure, indicates proper mounting depth for flush applications
- Steel backpan provides solid and reliable breaker mounting, single piece design for stability and durability
- Tangential center knockout - easier installation for conduit applications
- Neutral bus, easily removable for sub-panel applications
- Bonding Z-strap provides easy field conversion for service entrance applications
- Twin neutral bars, minimum 150% neutral capacity
- Without covers
- 6 to 1/0 AWG copper/aluminum wire size
Warranty
Limited Lifetime
