Cutler-Hammer Series CHP20L125X2

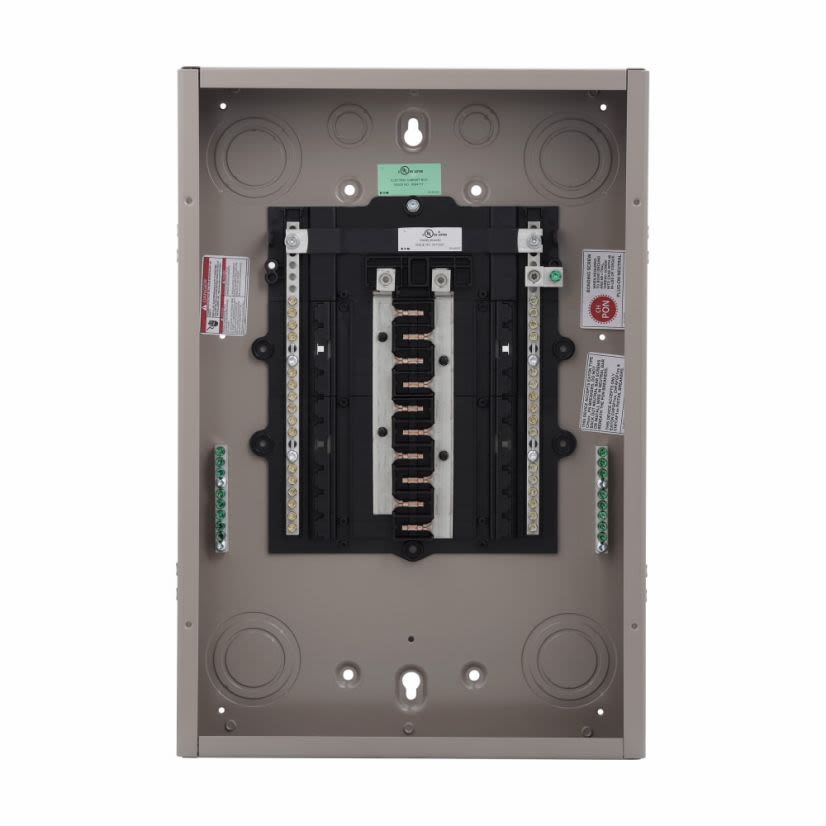

EATON CHP20L125X2 1-Phase Insulated/Bondable Split Standard Main Lug Load Center, 120/240 V AC, 125 A, 40 Poles, 25 kA Interrupt
Cutler-Hammer Series CHP20L125X2
EATON CHP20L125X2 1-Phase Insulated/Bondable Split Standard Main Lug Load Center, 120/240 V AC, 125 A, 40 Poles, 25 kA InterruptIn Stock: 6more info
|
BrandCutler-Hammer Series
MFG #CHP20L125X2
Werner Part #4233276
UPC786689054250
In Stock: 6more info
|
BrandCutler-Hammer Series
MFG #CHP20L125X2
Werner Part #4233276
UPC786689054250
Product Description
EATON Main Lug Load Center, 1-Phase Insulated/Bondable Split Standard, 120/240 V AC, 125 A, 40 Pole, 25 kA Interrupt, 40 Circuits, CH/CHP Breaker, Plug-On Neutral Breaker Mounting, 3-Wire Wiring Configuration, 20 Spaces, 6 to 2/0 AWG Wire, Plug-On Mount, NEMA 1, X2 Enclosure Box, Sheet Steel Housing, 21 in L x 14.3 in W x 4 in H
Attributes
Documents
Applications
Features
Warranty
Attributes
Breaker TypeCH/CHP
Country of OriginMX
Dimensions21 in L x 14.3 in W x 4 in H
Enclosure Box SizeX2
Enclosure TypeNEMA 1
FinishPainted
Housing MaterialSheet Steel
Interrupt Rating25 kA
ManufacturerEaton
MaterialSteel
Number of Circuits40
Number of Poles40
Number of Spaces20
Number of Wires3
Package Height4 in
Package Length21 in
Package TypeEACH
Package Weight10.8 lb
Package Width14.3 in
Phase1/3 ph
SeriesDH Series
Type1-Phase Insulated/Bondable Split Standard
Wiring Configuration3-Wire
Applications
Electrical Assemblies, Panels, EOEMs, Residential Loadcenters, Meter Breaker Panels, Light Commercial Distribution Panels, Pool Panels, Residential Transfer Switch Panels, Various OEM and Indoor Applications
Features
- One-piece silver flash plated copper bus provides superior conductivity throughout the entire product line
- Plug-on neutral design provides time and labor-savings by eliminating the pigtail
- CH 150-225 ampere main breakers are rated 25 KAIC providing contractors with the highest interrupting rating main breaker in the industry
- Unique sandalwood finish provides an aesthetically appealing
- scratch resistant powder coating
- CH breakers include an industry exclusive "trip to off" feature that allows a homeowner to easily identify a tripped circuit breaker
- Mechanical flag box feature on CH breakers for easy trip indication
Warranty
Lifetime
