Cutler-Hammer Series CHP16L125X1

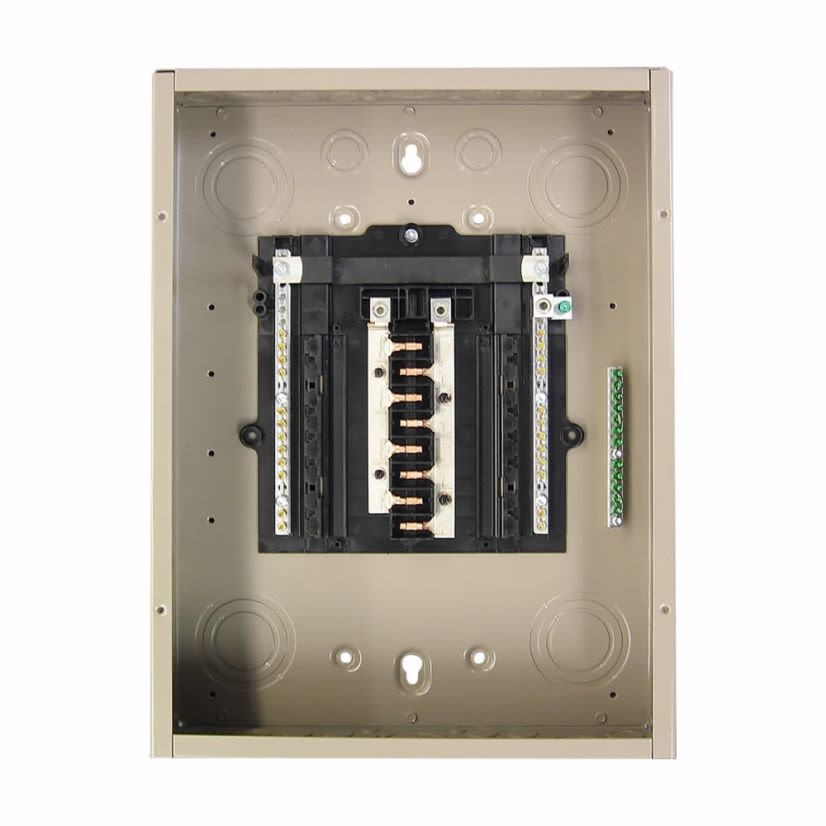

EATON CHP16L125X1 1-Phase Insulated/Bondable Split Standard Main Lug Load Center, 120/240 V AC, 125 A, 1 Poles, 25 kA Interrupt
Cutler-Hammer Series CHP16L125X1
EATON CHP16L125X1 1-Phase Insulated/Bondable Split Standard Main Lug Load Center, 120/240 V AC, 125 A, 1 Poles, 25 kA InterruptIn Stock: 4more info
|
BrandCutler-Hammer Series
MFG #CHP16L125X1
Werner Part #4245298
UPC786689059705
In Stock: 4more info
|
BrandCutler-Hammer Series
MFG #CHP16L125X1
Werner Part #4245298
UPC786689059705
Product Description
EATON Main Lug Load Center, 1-Phase Insulated/Bondable Split Standard, 120/240 V AC, 125 A, 1 Pole, 25 kA Interrupt, 32 Circuits, CH/CHP Breaker, Plug-On Neutral Breaker Mounting, 3-Wire Wiring Configuration, 16 Spaces, 6 to 2/0 AWG Wire, Plug-On Mount, NEMA 1, X1 Enclosure Box, Sheet Steel Housing, 18.75 in L x 14.3 in W x 4 in H
Attributes
Documents
Applications
Features
Warranty
Attributes
Breaker TypeCH/CHP
Country of OriginMX
Dimensions18.75 in L x 14.3 in W x 4 in H
Enclosure Box SizeX1
Enclosure TypeNEMA 1
Housing MaterialSheet Steel
Interrupt Rating25 kA
ManufacturerEaton
Number of Circuits32
Number of Poles1
Number of Spaces16
Package Height4 in
Package Length18.75 in
Package TypeEACH
Package Weight9.9 lb
Package Width14.3 in
Suitable For Use With3-Phase PRL1A and PRL2A Panelboard
Type1-Phase Insulated/Bondable Split Standard
Wiring Configuration3-Wire
Applications
Residential Buildings, Facilities, Residential Loadcenters, Meter Breaker Panels, Light Commercial Distribution Panels, Pool Panels, Residential Transfer Switch Panels, Various OEM and Indoor Applications
Features
- One-piece silver flash plated copper bus provides superior conductivity throughout the entire product line
- Plug-on neutral design provides time and labor-savings by eliminating the pigtail
- CH 150-225 ampere main breakers are rated 25 KAIC providing contractors with the highest interrupting rating main breaker in the industry
- Unique sandalwood finish provides an aesthetically appealing
- scratch resistant powder coating
- CH breakers include an industry exclusive "trip to off" feature that allows a homeowner to easily identify a tripped circuit breaker
- Mechanical flag box feature on CH breakers for easy trip indication
Warranty
Limited Lifetime
