Cutler-Hammer Series CHP12L125X0

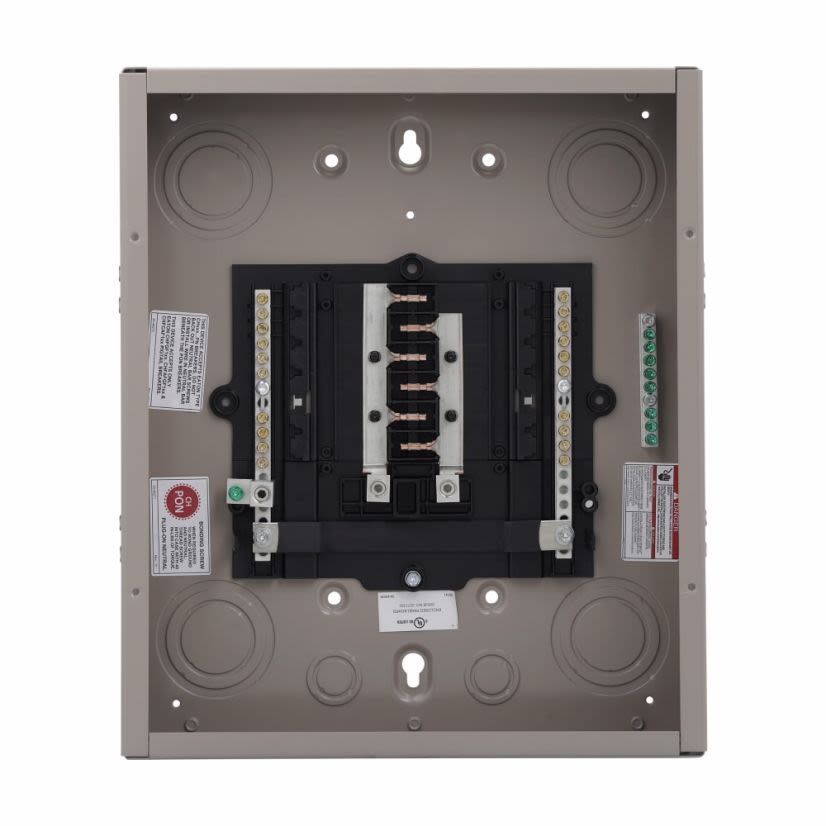

EATON CHP12L125X0 1-Phase Insulated/Bondable Split Standard Main Lug Load Center, 120/240 V AC, 125 A, 24 Poles, 25 kA Interrupt
Cutler-Hammer Series CHP12L125X0
EATON CHP12L125X0 1-Phase Insulated/Bondable Split Standard Main Lug Load Center, 120/240 V AC, 125 A, 24 Poles, 25 kA InterruptIn Stock: 18more info
|
BrandCutler-Hammer Series
MFG #CHP12L125X0
Werner Part #4245297
UPC786689054267
In Stock: 18more info
|
BrandCutler-Hammer Series
MFG #CHP12L125X0
Werner Part #4245297
UPC786689054267
Product Description
EATON Main Lug Load Center, 1-Phase Insulated/Bondable Split Standard, 120/240 V AC, 125 A, 24 Pole, 25 kA Interrupt, 24 Circuits, CH/CHP Breaker, Plug-On Neutral Breaker Mounting, 3-Wire Wiring Configuration, 12 Spaces, 6 to 2/0 AWG Wire, Plug-On Mount, NEMA 1, X0 Enclosure Box, Sheet Steel Housing, 16.75 in L x 14.3 in W x 4 in H
Attributes
Documents
Applications
Features
Warranty
Specifications
Attributes
Actuator TypeHandle
Breaker TypeCH/CHP
Connection TypeLine/Load
Country of OriginUS
Dimensions16.75 in L x 14.3 in W x 4 in H
Enclosure Box SizeX0
Enclosure TypeNEMA 1
FrameF
Frequency Rating50/60 Hz
Housing MaterialSheet Steel
Interrupt Rating25 kA
ManufacturerEaton
Number of Circuits24
Number of Poles24
Number of Spaces12
Package TypeEACH
SeriesC Series
Temperature Rating40 deg C
Trip TypeFixed Thermal/Fixed Magnetic
Type1-Phase Insulated/Bondable Split Standard
Wiring Configuration3-Wire
Documents
Applications
Electrical Assemblies, Panels, EOEMs, Residential Loadcenters, Meter Breaker Panels, Light Commercial Distribution Panels, Pool Panels, Residential Transfer Switch Panels, Various OEM and Indoor Applications
Features
- Extra 1-1/2 in knockout, larger knockout provides easier installation and time savings for renovation installations
- Straight-in wiring saves labor and material
- One panel for either top or bottom applications
- 2/0 AWG lug - easily removable and can be installed in any location on the neutral bar
- One-piece silver flash plated copper bus provides superior conductivity throughout the entire product line
- Drywall marking on enclosure, indicates proper mounting depth for flush applications
- Steel backpan provides solid and reliable breaker mounting, single piece design for stability and durability
- Tangential center knockout - easier installation for conduit applications
- Neutral bus, easily removable for sub-panel applications
- Bonding Z-strap provides easy field conversion for service entrance applications
- Twin neutral bars, minimum 150% neutral capacity
- Without covers
- 6 to 2/0 AWG copper/aluminum wire size
Warranty
Lifetime
Specifications
- Cover Type: Size X0
