Cutler-Hammer Series CHSA

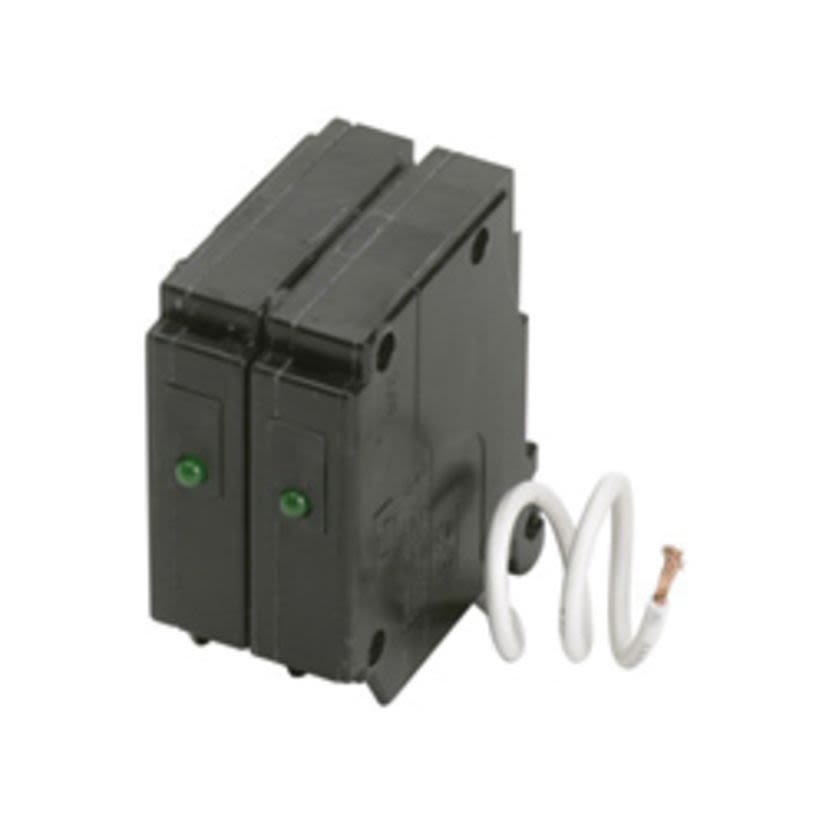

EATON CHSA Type 2 Non-Modular Surge Protective Device, 120/240 VAC, 10 kA SCCR, 2 Poles
Cutler-Hammer Series CHSA
EATON CHSA Type 2 Non-Modular Surge Protective Device, 120/240 VAC, 10 kA SCCR, 2 PolesOut of Stockmore info
|
BrandCutler-Hammer Series
MFG #CHSA
Werner Part #24490
UPC782113099361
Out of Stockmore info
|
BrandCutler-Hammer Series
MFG #CHSA
Werner Part #24490
UPC782113099361
Product Description
EATON Surge Protective Device, Type 2 Non-Modular, 120/240 VAC, 60 Hz Frequency, 2 Pole, 3 Wires, 10 kA Short Circuit, 18 kA Peak Surge Current, 3 kA Nominal Discharge, Modes of Protection: 600 L1-N/1000 L-L, Indicators: LED, Plug-On Mounting, 6 in L x 0.51 in W x 2.5 in H Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
Country of OriginDO
Dimensions6 in L x 0.51 in W x 2.5 in H
Enclosure TypeNEMA 1
FinishPainted
Frequency Rating60 Hz
Horsepower50 hp, 125 hp, 250 hp, 350 hp
ManufacturerEaton
MaterialSteel
Number of Poles2
Number of Wires3
Package Height2.5 in
Package Length6 in
Package Weight0.51 lb
Package Width3.5 IN
Phase3 ph
SeriesK Series
Short Circuit Current Rating10 kA
TypeType 2 Non-Modular
Type / StyleType 2 Non-Modular
Applications
Circuit Protection and Type CH Load Center Applications
Features
- 3k nominal discharge current, can withstand 10k of current under short circuit conditions, has 18k one time surge current rating
- Convenient surge protection for the load center
- 8 in lead wire connection
- Plug-on to the load center bus
Specifications
- Modes of Protection: 600 L1-N/1000 L-L
