Cutler-Hammer Series BRS225

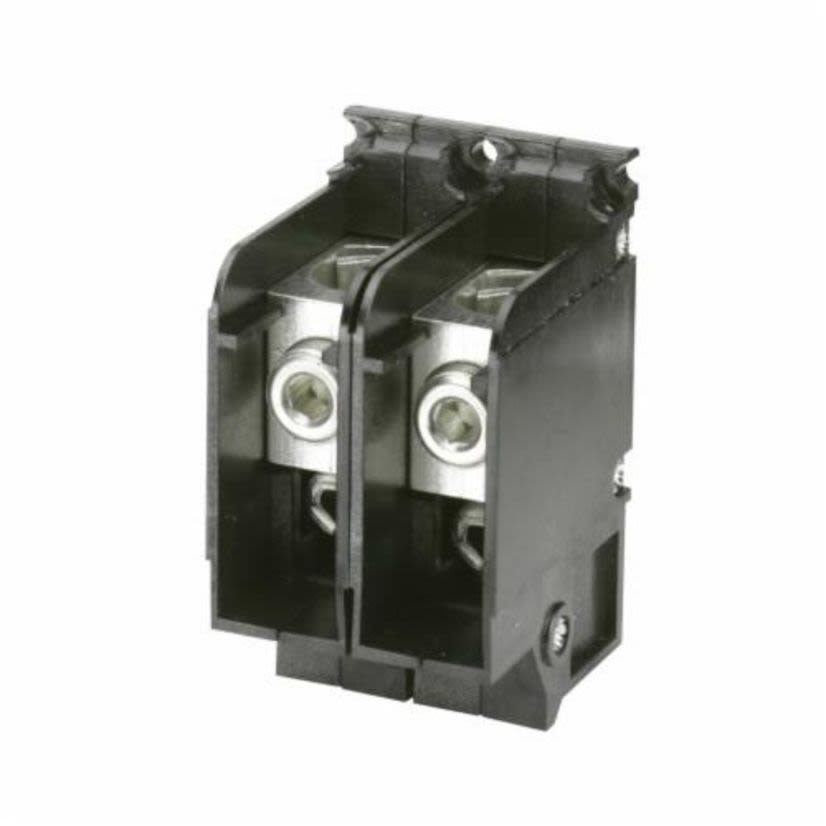

EATON BRS225 Main/Sub-Feed Lug Block, 2 Poles, 225 A, For Use With Type BR Loadcenter and Circuit Breaker
Cutler-Hammer Series BRS225
EATON BRS225 Main/Sub-Feed Lug Block, 2 Poles, 225 A, For Use With Type BR Loadcenter and Circuit BreakerNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Main/Sub-Feed Lug Block, 2 Pole, 225 A, For Use With: Type BR Loadcenter and Circuit Breaker, 4-1/2 in L x 3-1/2 in W x 3-1/2 in H
Attributes
Documents
Warranty
Features
Attributes
Country of OriginUS
Dimensions4-1/2 in L x 3-1/2 in W x 3-1/2 in H
FinishTinned
ManufacturerEaton
MaterialAluminum/Thermoplastic
Number of Poles2
Primary Connection/Pole1
Secondary Connection/Pole1
Short Circuit Current Rating100 kA
Size of Wire16 to 4 AWG, 16 to 10 AWG
Suitable For Use WithType BR Loadcenter and Circuit Breaker
Type / StyleMain and sub-feed lug blocks
Documents
Warranty
10 Years
Features
- 2 AWG to 300 kcmil copper aluminum wire
- 60 deg C temperature rating
- Main and sub-feed lug block has aluminum copper construction to provide resistance against corrosion
- (4) 1 in spaces needed
