Cutler-Hammer Series CH8KFM

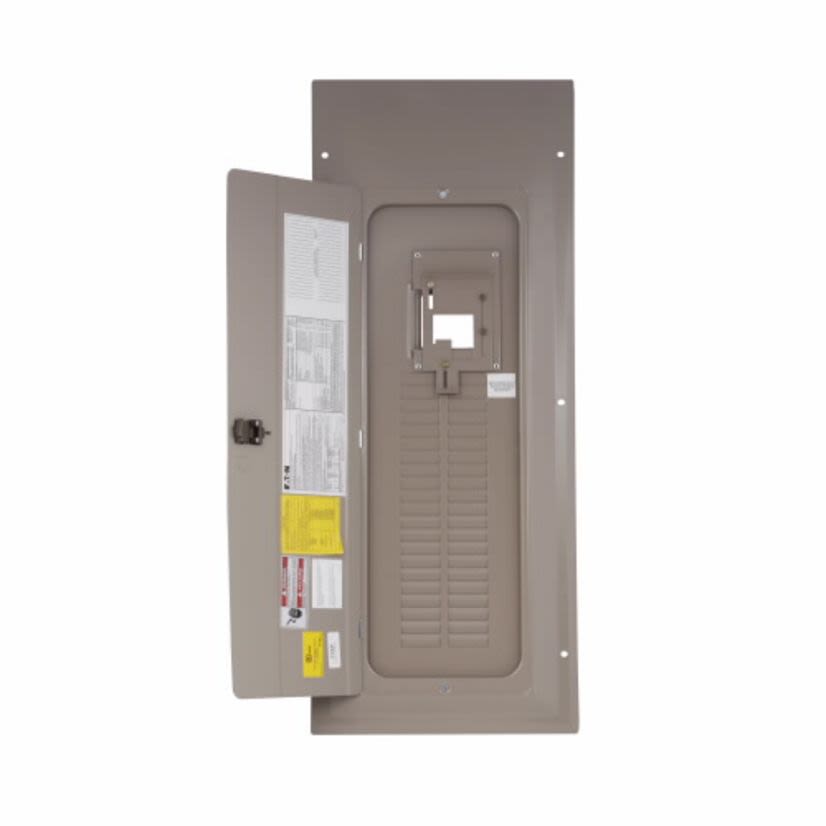

EATON CH8KFM Type B Mechanical Interlock Cover, 38 in H x 15.3 in W x 0.66 in D
Cutler-Hammer Series CH8KFM
EATON CH8KFM Type B Mechanical Interlock Cover, 38 in H x 15.3 in W x 0.66 in DNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Mechanical Interlock Cover, Type B, 15.3 in Width, 38 in Height, 0.66 in Depth, Flush Mounting, Specifications: 3/4 in Size, For Use With: CH42NLPN225K/CH42B200K/CH42N200K/CH42B225K Type CH 3/4 in Loadcenter and Circuit Breaker
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Breaker TypeBR/CSR
Country of OriginUS
Depth0.66 in
Dimensions39 in L x 14.31 in W x 3.88 in H
Enclosure Box SizeX8
Enclosure TypeNEMA 1
Height38 in
Housing MaterialGalvanized Steel
Interrupt Rating25 kA
ManufacturerEaton
Mounting TypePlug-On
Number of Circuits40
Number of Poles1
Number of Spaces40
Package TypeEACH
Size of Wire6 to 1/0 AWG
Suitable For Use WithCH42NLPN225K/CH42B200K/CH42N200K/CH42B225K Type CH 3/4 in Loadcenter and Circuit Breaker
TypeType B
Type / StyleType B
Width15.3 in
Wiring Configuration3-Wire
Applications
Power Distribution Applications
Warranty
1 year
Features
- Covers mechanically interlock 2-breakers
- Type B covers interlock a main type CSR breaker with a type CH
Specifications
3/4 in Size
