Bussmann Series OPM-1038SW

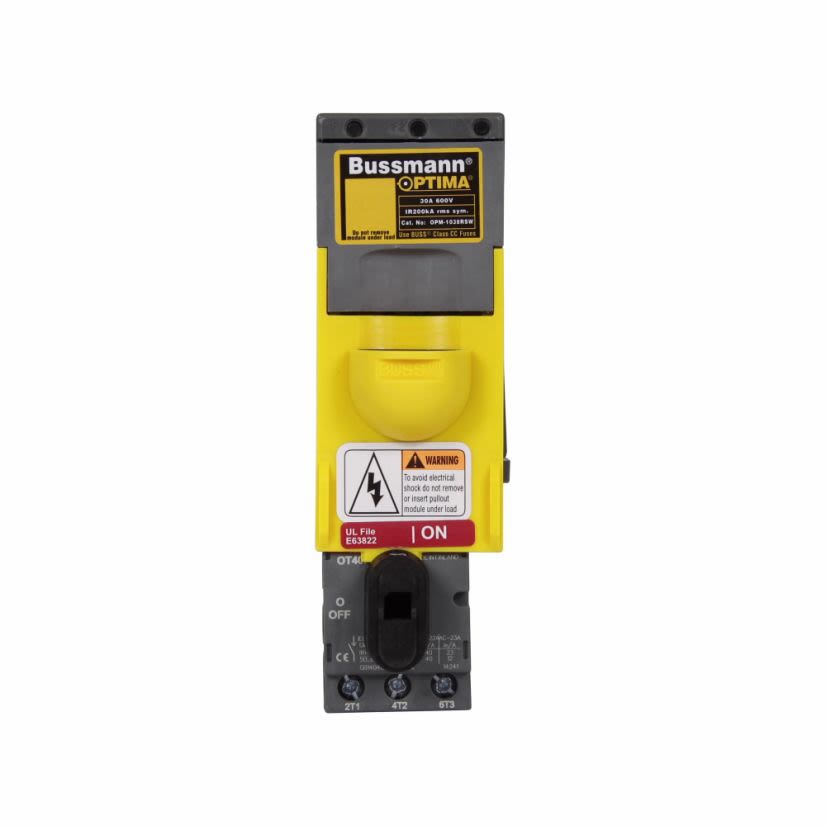

Bussmann OPTIMA OPM-1038SW Fuse Holder Module With Switch, 600/660 V AC/600 V DC, 30/32 A, 3 Poles, Midget Fuse, 18 to 8/18 to 10 AWG Wire
Bussmann Series OPM-1038SW
Bussmann OPTIMA OPM-1038SW Fuse Holder Module With Switch, 600/660 V AC/600 V DC, 30/32 A, 3 Poles, Midget Fuse, 18 to 8/18 to 10 AWG WireNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Bussmann OPTIMA Fuse Holder Module, Series: OPM, 600/660 V AC/600 V DC, 30/32 A, 3 Pole, Midget Fuse, 18 to 8/18 to 10 AWG Wire, Stranded/Solid Wire, 13/32 x 1-1/2 in Fuse, DIN Rail/Screw Mount, 1.76 in Width, 5.72 in Height, 3.74 in D, Thermoplastic
Attributes
Documents
Applications
Features
Specifications
Attributes
Country of OriginMX
Depth3.74 in
Dimensions2.2 in L x 3.1 in W x 2.7 in H
Enclosure TypeNEMA 1/3R
Height5.72 in
Interrupt Rating10 kA
ManufacturerEaton
MaterialThermoplastic
Mounting TypePlug-On
Number of Poles3
Package TypeEACH
Phase3 ph
SeriesOPM
Size of Wire10 to 1/0 AWG
Temperature Rating60 to 75 deg C
Trip TypeCommon/Thermal Magnetic
TypeType CH Standard
Voltage600/660 VAC/600 VDC
Width1.76 in
Applications
Industrial Control, Process Control Systems, Automated Warehouse Systems, Individual Control Circuits, Electrical Assemblies, Panels and EOEMs Applications
Features
- "Open" fuse indication lights
- Finger safe terminals
- Cam action handle for easy module removal
- Dead front construction, no exposed contacts for added safety
- Offered with class CC rejection clips or European 10 x 38 mm clips to meet global needs
- Non-rejection 10 x 38 mm or 13/32 in x 1-1/2 in clips
- For use with KTK, FNM, FNQ non-rejection fuse
Specifications
Wire Type: Solid/Stranded
