Bussmann Series CCPB-2-30CF

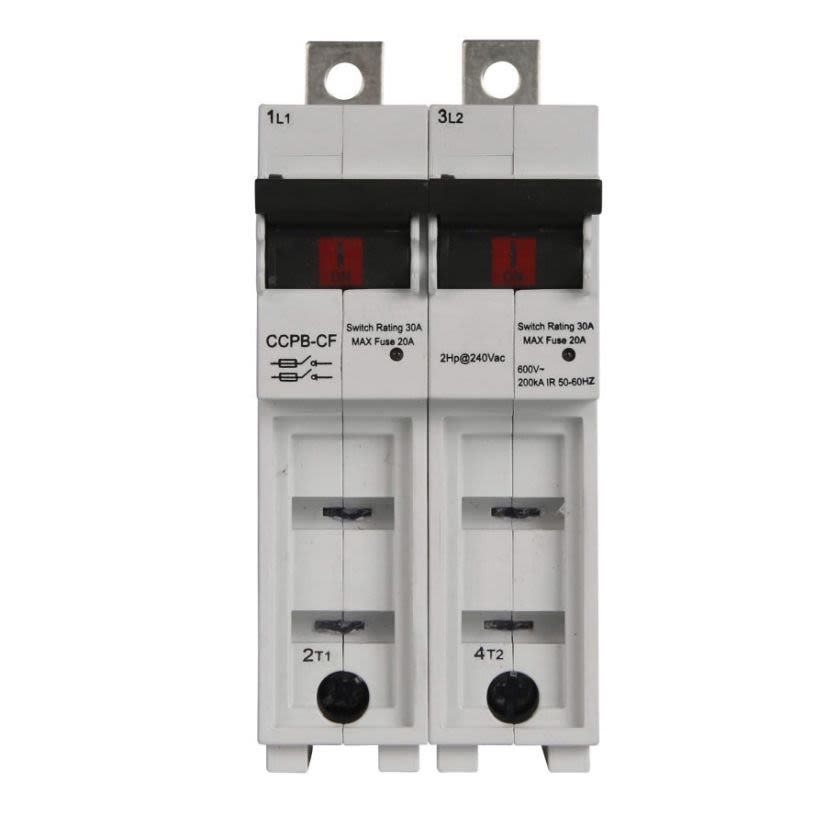

Bussmann CUBEFuse Quik-Spec CCPB-2-30CF Finger Safe Fusible Disconnect Lock-On Provision Compact Circuit Protector Base, 600 V AC, 30 A, 2 Poles, Class CF Fuse, 18 to 4 AWG Wire
Bussmann Series CCPB-2-30CF
Bussmann CUBEFuse Quik-Spec CCPB-2-30CF Finger Safe Fusible Disconnect Lock-On Provision Compact Circuit Protector Base, 600 V AC, 30 A, 2 Poles, Class CF Fuse, 18 to 4 AWG WireNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Bussmann CUBEFuse Quik-Spec Compact Circuit Protector Base, Finger Safe Fusible Disconnect Lock-On Provision, Series: CCPB, 600 V AC, 30 A, 2 Pole, Class CF Fuse, 18 to 4 AWG Wire, Solid/Stranded Copper Wire, Bolt-On Mounting, Switch Handle Operator, -20 to 75 deg C Operating, 3.9 in Width, 2.9 in Height, 3 in Depth
Attributes
Documents
Applications
Features
Specifications
Attributes
Country of OriginCN
Depth3 in
Dimensions6 in L x 4 in W x 3 in H
Height2.9 in
Interrupt Rating25 kA
ManufacturerEaton
Mounting TypeBottom/Top
Number of Poles2
Package Height0.15 in
Package Length0.11 in
Package TypeEACH
Package Weight0.55 lb
Package Width0.12 in
SeriesCCPB
Size of Wire14 to 1/0 AWG
TypeFinger Safe Fusible Disconnect Lock-On Provision
Type / StyleCompact Circuit Protector Base
Voltage600 VAC
Width3.9 in
Applications
Quik-Spec Co-ordination Panelboards, Electrical Assemblies and Panels Applications
Features
- Patented ampacity rejection feature helps prevent overfusing
- High 200 kA short circuit current ratings
- Disconnect rated to provide means for load isolation
- Open fuse indication light per pole
- Additional open fuse indication can be provided by using the time delay indicating CUBEFuse version
- Built-in switch/fuse interlock prohibits fuse removal while energized
- Permanent lockout/tagout provisions
- TCF25RN, TCF30RN non-indicating time delay
- TCF25, TCF30 indicating time delay
- FCF25RN, FCF30RN non-indicating fast acting
- 200 kA at VAC, 100 kA at VDC short circuit current rating
- 1.5 hp at 120 VAC, 3 hp at 240 VAC hp rating
- Uses finger safe class CF CUBEFuse with class J performance
- Extremely compact design at 25.4 mm W per pole
- IP20 finger safe construction with 10 AWG wire or larger
- Padlockable handle for lockout/tagout procedures
- Box lug and fork terminal suitable for line, load or accessory connection
- 4 mm shank lock or standard pin-out devices lockout/tag out
- 18 to 10 AWG 20 lb-in, 8 to 4 AWG 35 lb-in torque at 0 to 60 A
- Lock-on provision
Specifications
Wire Type: Solid Copper/Stranded
