Cutler-Hammer Series CH260

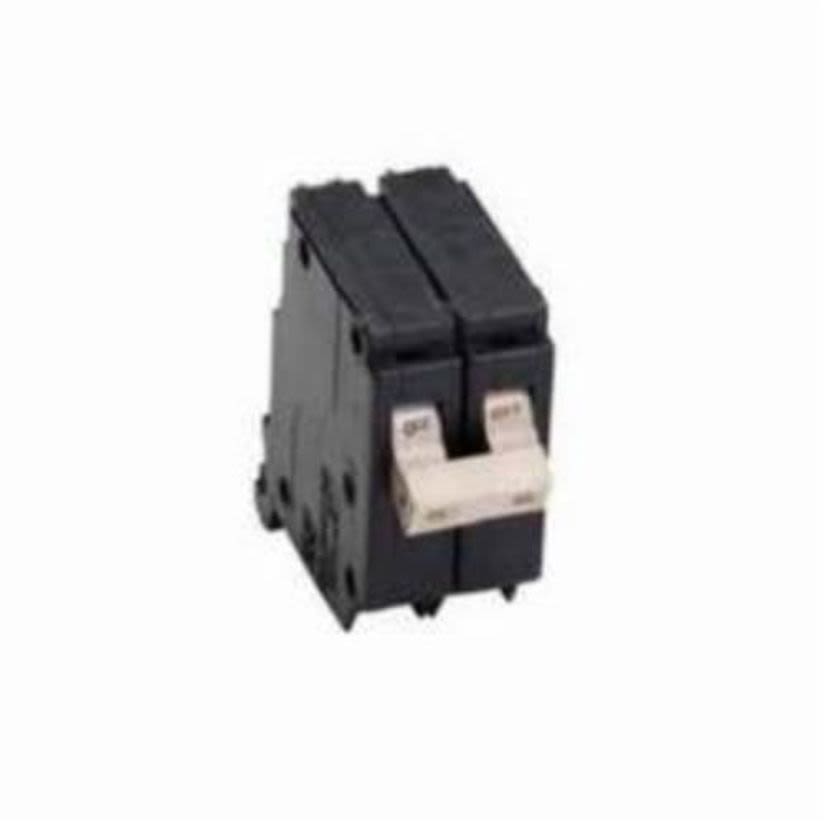

EATON CH260 Type CH Standard Circuit Breaker, 120/240 V AC, 60 A, 10 kA Interrupt, 2 Poles
Cutler-Hammer Series CH260
EATON CH260 Type CH Standard Circuit Breaker, 120/240 V AC, 60 A, 10 kA Interrupt, 2 PolesIn Stock: 333more info
|
In Stock: 333more info
|
Product Description
EATON Circuit Breaker, Type CH Standard, 120/240 V AC, 60 A, 10 kA Interrupt, 2 Pole, 1 ph, 14 to 2 AWG Wire, NEMA 1/3R, Plug-On Mount, 60 to 75 deg C, 3 in L x 1-1/2 in W x 3-1/2 in H
Attributes
Documents
Applications
Features
Attributes
Country of OriginDO
Dimensions3 in L x 1-1/2 in W x 3-1/2 in H
Enclosure TypeNEMA 1/3R
Interrupt Rating10 kA
ManufacturerEaton
Number of Poles2
Package TypeEACH
Phase1
Size of Wire14 to 2 AWG
Suitable For Use WithG Series EG Frame Molded Case Circuit Breaker
Temperature Rating60 to 75 deg C
Trip TypeCommon/Thermal Magnetic
TypeType CH Standard
Type / StyleType CH Standard
Voltage120/240 VAC
Applications
Conventional Energy Generation, Renewable Energy and Alternative Energy Generation, Marine Vessels and Equipment, Load Centers and Circuit Protection Applications
Features
- Common trip requires one 3/4 in space
- Switching duty rated
- For 2-pole circuit breakers carry listing for HACR application
