Cutler-Hammer Series TA1201NB1

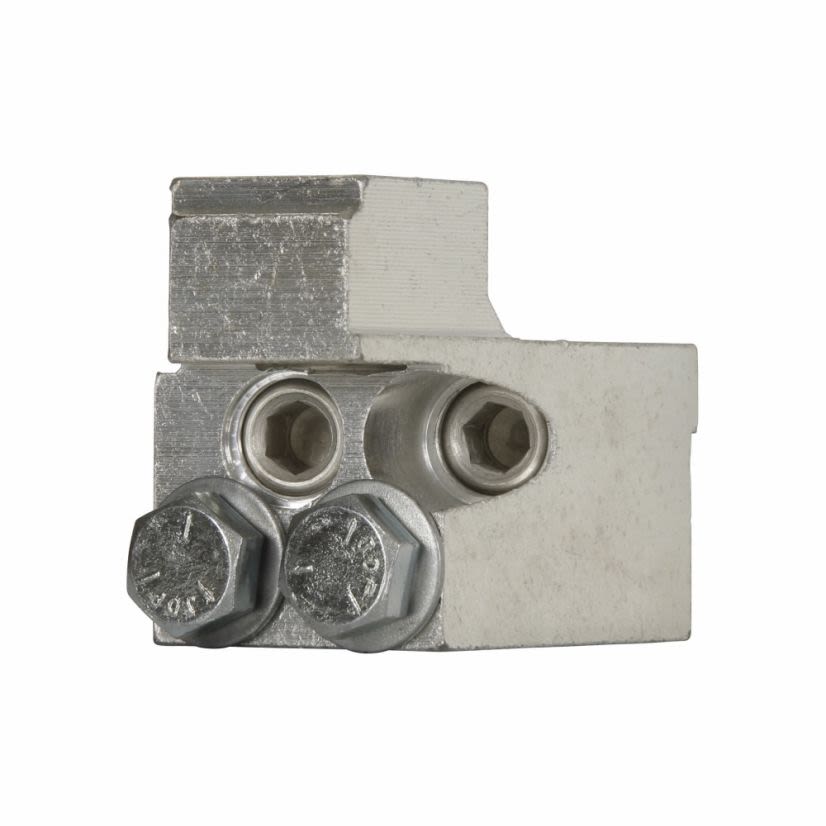

EATON TA1201NB1 Pressure Standard Line and Load Terminal, 500 to 750 kcmil, For Use With G Series 1200 A N-Frame Molded Case Circuit Breaker
Cutler-Hammer Series TA1201NB1
EATON TA1201NB1 Pressure Standard Line and Load Terminal, 500 to 750 kcmil, For Use With G Series 1200 A N-Frame Molded Case Circuit BreakerOut of Stockmore info
|
Out of Stockmore info
|
Product Description
EATON Line and Load Terminal, Pressure Standard, 500 to 750 kcmil Conductor, For Use with: G Series 1200 A N-Frame Molded Case Circuit Breaker, 3.2 in Length, 2-1/2 in Width, 4.4 in Height, Aluminum
Attributes
Documents
Applications
Warranty
Features
Attributes
Connection TypeScrew/Standard Terminal
Country of OriginUS
Dimensions2-1/2 x 3 x 4-1/2 in
Frequency Rating50/60 Hz
Height4.4 in
Interrupt Rating14 kA
ManufacturerEaton
MaterialAluminum
Mounting TypeDIN Rail
Number of Poles3
Package TypeEACH
SeriesFAZ-NA
Size of Wire18 to 6 AWG
Suitable For Use WithG Series 1200 A N-Frame Molded Case Circuit Breaker
Temperature Rating40 deg C
Trip Type3-5X /n
TypePressure Standard
Type / StylePressure Standard
Width2-1/2 in
Documents
Applications
Circuit Protection Applications
Warranty
1 year
Features
- Standard aluminum copper pressure terminals
- (3) 500 to 750 kcmil
