Cutler-Hammer Series 3TA401K

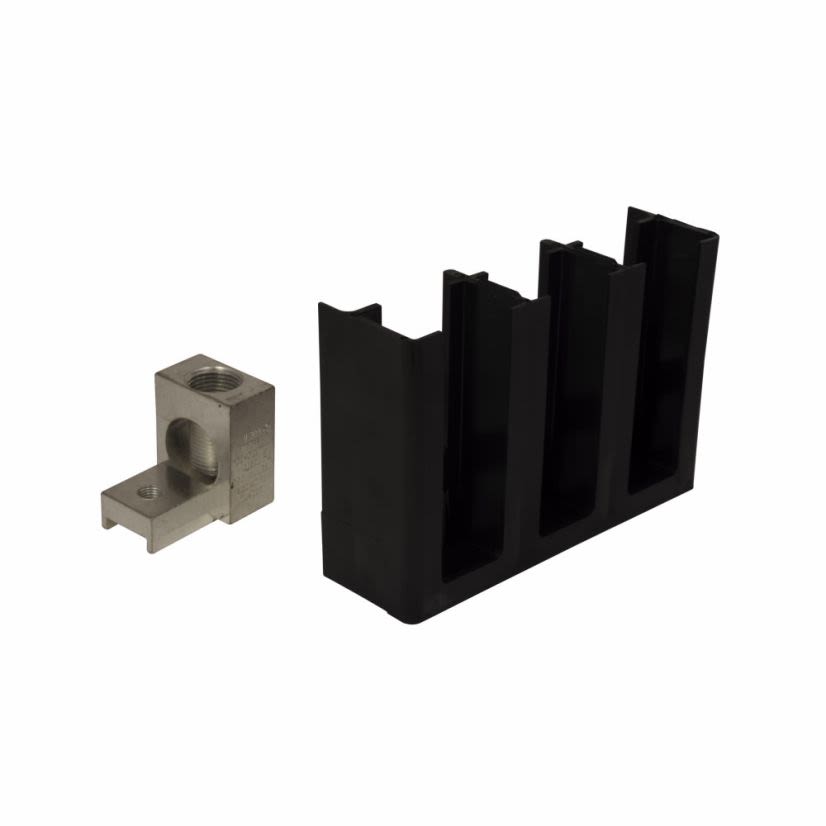

EATON 3TA401K Pressure Line and Load Terminal, 2/0 AWG to 250 kcmil, 2/0 AWG to 500 kcmil, For Use With C Series 3-Pole 400 A Molded Case Circuit Breaker
Cutler-Hammer Series 3TA401K
EATON 3TA401K Pressure Line and Load Terminal, 2/0 AWG to 250 kcmil, 2/0 AWG to 500 kcmil, For Use With C Series 3-Pole 400 A Molded Case Circuit BreakerNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #3TA401K
Werner Part #24132
UPC786679884010
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #3TA401K
Werner Part #24132
UPC786679884010
Product Description
EATON Line and Load Terminal, Pressure, 2/0 AWG to 250 kcmil, 2/0 AWG to 500 kcmil Conductor, For Use With: C Series 3-Pole 400 A Molded Case Circuit Breaker, 7 in Length, 4 in W, 5 in Height, Aluminum
Attributes
Documents
Applications
Features
Warranty
Attributes
Country of OriginUS
Dimensions3-9/32 in H x 2 in W x 2-3/8 in D
FrameQ-Line
Height5 in
Interrupt Rating10 kA
ManufacturerEaton
MaterialAluminum
Mounting TypePlug-In
Number of Poles2
Package TypeEACH
Phase1
SeriesSeries C
Size of Wire14 to 8 AWG Cu, 12 to 8 AWG Al
Suitable For Use WithC Series 3-Pole 400 A Molded Case Circuit Breaker
Trip Range5
Trip TypeNon-Interchangeable/LIG
TypePressure
Type / StylePressure
Width4 in
Documents
Applications
Commercial, Institutional Buildings, Structures and Circuit Protection Applications
Features
- For remote indication of an automatic trip operation
- Typically two or three wires extend through the case.Provides remote indication of the circuit breaker status (open/closed)
- Multiple cable terminal options are available for each frame providing alternatives to connect primary power and loads to the circuit breaker
- Additionally control wire terminals provide a means to tap off control power.Multiwire terminals on the load side of the breaker can also be used to distribute the load from the circuit breaker to multiple devices without the use of separate distribution terminal blocks
- Most circuit breaker accessories are mounted internally and are not visible with a quick inspection
- Electrical OEMs
- Machinery OEMs
Warranty
1 year
