Cutler-Hammer Series BR220ST

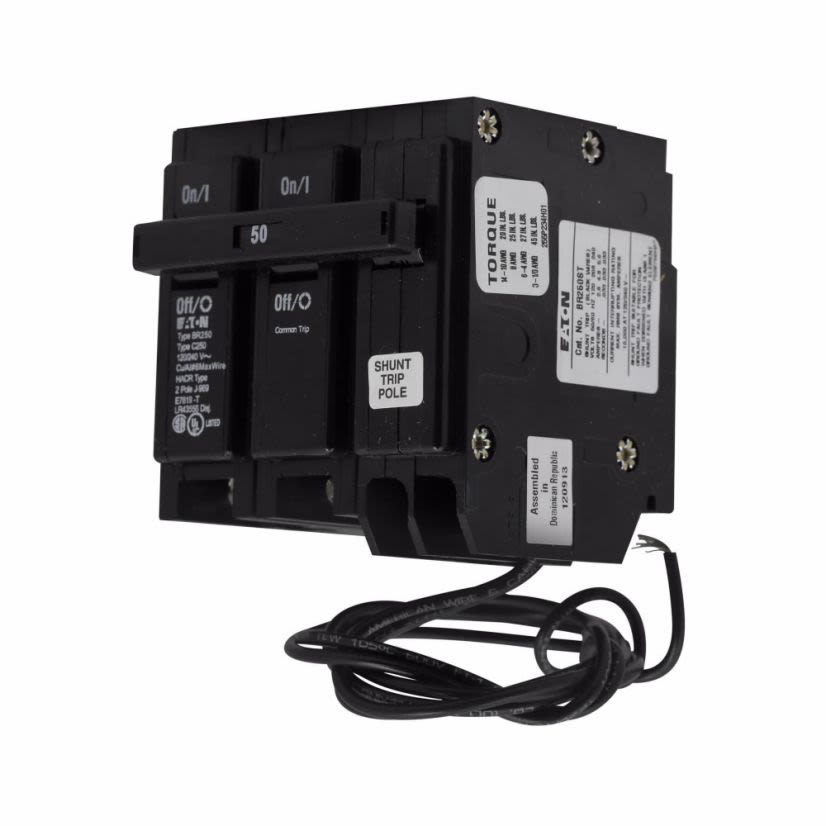

EATON BR220ST 2-Pole Common Shunt Trip, 120/240 V AC, Plug-On Mount
Cutler-Hammer Series BR220ST
EATON BR220ST 2-Pole Common Shunt Trip, 120/240 V AC, Plug-On MountNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #BR220ST
Werner Part #503652
UPC786676000291
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #BR220ST
Werner Part #503652
UPC786676000291
Product Description
EATON Shunt Trip, 2-Pole Common, 120/240 V AC, Plug-On Mount, For Use With: Type BR Loadcenter and BR220 2-Pole 20 A Circuit Breaker, 4-1/4 in L x 4 in W x 3-1/2 in H
Attributes
Documents
Applications
Features
Attributes
Connection TypeLine Side Box Lug
Country of OriginDO
Dimensions4-1/4 in L x 4 in W x 3-1/2 in H
Enclosure TypeNEMA 3R
ManufacturerEaton
MaterialAluminum
Mounting TypePlug-On
Number of Wires3
Package Height4 in
Package Length4.5 in
Package TypeEACH
Package Weight1 lb
Package Width4.25 in
Phase1 ph
Short Circuit Current Rating100 kA
Size of Wire2 AWG to 600 kcmil
Suitable For Use WithType BR Loadcenter and BR220 2-Pole 20 A Circuit Breaker
Type2-Pole Common
Type / Style2-Pole Common
Voltage120/240 VAC
Applications
Conventional Energy Generation, Renewable Energy and Alternative Energy Generation, Marine Vessels and Equipment and Circuit Protection Applications
Features
- Available in 1 in thermal magnetic
- and AF/GF designs
- Short-body design maximizes your space inside the loadcenter
- creating additional wire-way and gutter space for ease of installation
- Easy to read trip codes through improved LEDs and a clear test button increases your troubleshooting efficiency
- Improved AFCI and GFCI algorithms significantly reduce nuisance tripping
- resulting in less call backs
