Cutler-Hammer Series SBK1

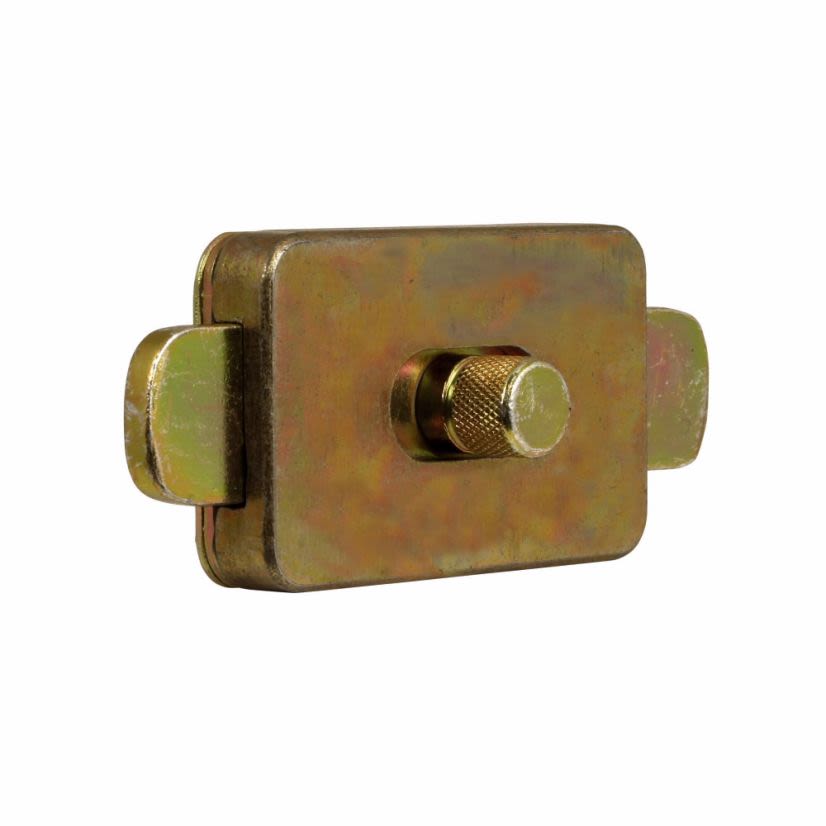

EATON SBK1 Sliding Bar Interlock
Cutler-Hammer Series SBK1
EATON SBK1 Sliding Bar InterlockNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #SBK1
Werner Part #3844563
UPC786679550007
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #SBK1
Werner Part #3844563
UPC786679550007
Product Description
EATON Sliding Bar Interlock, 4-3/16 in Hub
Attributes
Documents
Applications
Warranty
Features
Attributes
Country of OriginUS
Dimensions30 in L x 10 in W x 11 in H
Enclosure TypeNEMA 4X
Horsepower10 hp, 20 hp, 25 hp, 50 hp, 60 hp
ManufacturerEaton
Material304 Stainless Steel
Number of Poles3
Number of Wires3
Package Length4 in
Package TypeEACH
Package Weight4 lb
Package Width2 in
Phase1/3 ph
SeriesK Series
TypeHeavy Duty Non-Fusible Single Throw
Type / StyleSliding bar interlock
Documents
Applications
For C series F-frame molded case circuit breaker
Warranty
1 year
Features
- The sliding bar interlock provides mechanical interlocking between two adjacent 3-pole circuit breakers
- It is installed on the enclosure cover between the circuit breakers
- When the sliding bar interlock handle is moved from one side to the other, a bar extends to alternately block movement of the circuit breaker handles and prevents both circuit breakers from being switched to on at the same time
- 4.19 in centerline spacing
