Cutler-Hammer Series JGS3250NN

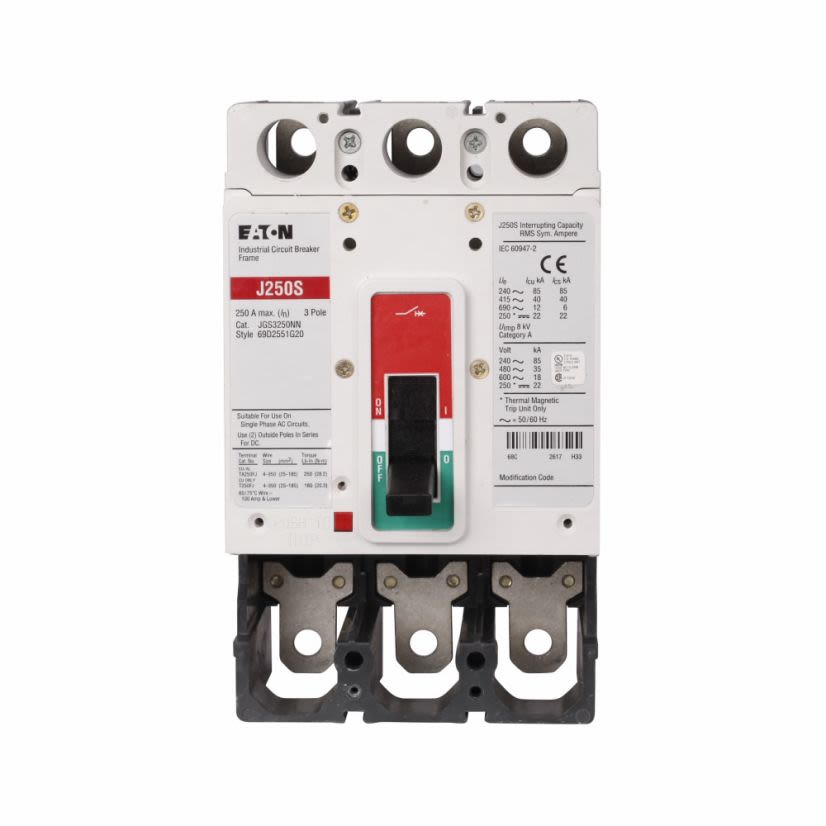

EATON JGS3250NN Breaker Frame, 600 V AC, 250 A, 3 Poles
Cutler-Hammer Series JGS3250NN
EATON JGS3250NN Breaker Frame, 600 V AC, 250 A, 3 PolesInventory Not Available
Inventory Not Available
Product Description
EATON Breaker Frame, 600 V AC, 250 A, 3 Poles, 18 kA IR, For Use With: G Series Type JGS JG-Frame Molded Case Circuit Breaker, Specifications: 85 kA at 240 V AC, 40 kA at 415 V AC, 35 kA at 480 V AC, 18 kA at 600 V AC Interrupt Rating, 50/60 Hz, 3.57 in L x 4.13 in W x 7 in H Dimensions
Attributes
Documents
Applications
Included
Specifications
Warranty
Features
Attributes
Connection TypeLine/Load/Pressure
Country of OriginDO
Dimensions3.57 in L x 4.13 in W x 7 in H
Enclosure TypeEEMAC 1/NEMA AB1-1993
FrameF
Frequency Rating50/60 Hz
Interrupt Rating65 kA at 240 VAC/10 kA at 125 VDC
ManufacturerEaton
Mounting TypeSurface
Number of Poles3
Package TypeEACH
Phase1
SeriesC Series
Size of Wire4 to 4/0 AWG Al/Cu
Suitable For Use WithG Series Type JGS JG-Frame Molded Case Circuit Breaker
Temperature Rating40 deg C
Trip TypeNon-Interchangeable/Thermal Magnetic
TypeType ED
Type / StyleFrame only
Voltage600 VAC
Documents
Applications
Industrial and Circuit Protection Applications
Included
Frame
Specifications
85 kA at 240 V AC, 40 kA at 415 V AC, 35 kA at 480 V AC, 18 kA at 600 V AC Interrupt Rating, 50/60 Hz
Warranty
1 year
Features
- Compact design frees up panel space
- Common field fit internal accessories make installation and custom configuration easy
- Advanced trip unit functionality offers a wide range of adjustment for maximum flexibility
- Patented contact design features high speed "blow open" action, resulting in superior performance
- 80% rated
