Cutler-Hammer Series JD3250F

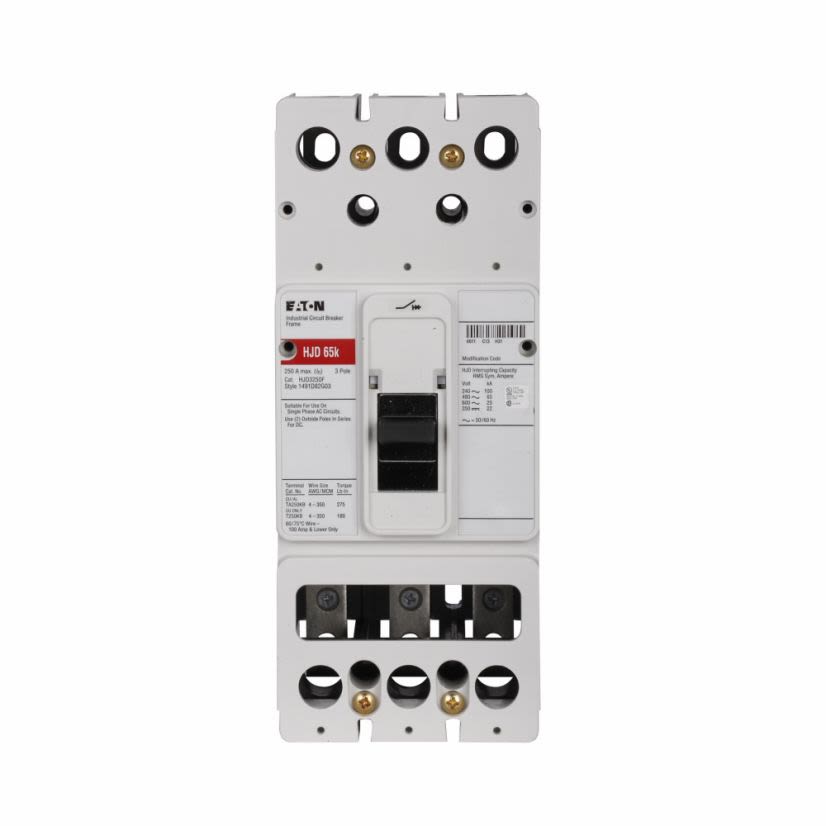

EATON JD3250F Molded Case Circuit Breaker Frame, 600 V AC/250 V DC, 250 A, 3 Poles
Cutler-Hammer Series JD3250F
EATON JD3250F Molded Case Circuit Breaker Frame, 600 V AC/250 V DC, 250 A, 3 PolesNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #JD3250F
Werner Part #553090
UPC786679516379
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #JD3250F
Werner Part #553090
UPC786679516379
Product Description
EATON Molded Case Circuit Breaker Frame, 600 V AC/250 V DC, 250 A, 3 Pole, 65 kA IR Rating, For Use With: C Series Type JD J-Frame Non-Interchangeable Fixed Thermal Magnetic Trip Molded Case Circuit Breaker, 50/60 Hz, 4.06 x 4.13 x 4.13 in
Attributes
Documents
Applications
Features
Specifications
Attributes
Country of OriginDO
Dimensions4.06 x 4.13 x 4.13 in
Interrupt Rating10 kA
ManufacturerEaton
Mounting TypeBolted-On
Number of Poles3
Package TypeEACH
Size of Wire6 to 1/0 AWG, 4 to 1/0 AWG
Suitable For Use WithC Series Type JD J-Frame Non-Interchangeable Fixed Thermal Magnetic Trip Molded Case Circuit Breaker
Temperature Rating40 deg C
Trip TypeCommon/LI/Thermal Magnetic
TypeType THQB Molded Case Miniature
Voltage600 VAC/250 VDC
Documents
Applications
Electrical Assemblies, Panels, OEMs, Circuit Protection, Panelboard, Switchboard, Motor Control Center and Busway Applications
Features
- Patented contact design features high-speed blow-open action
- resulting in superior performance
- A large domestic installed base ensures familiarity
- and acceptability throughout the U.S
- An extensive line of heavy duty external accessories are ideal for harsh and hazardous environments
Specifications
50/60 Hz
