Cutler-Hammer Series HJD3250F

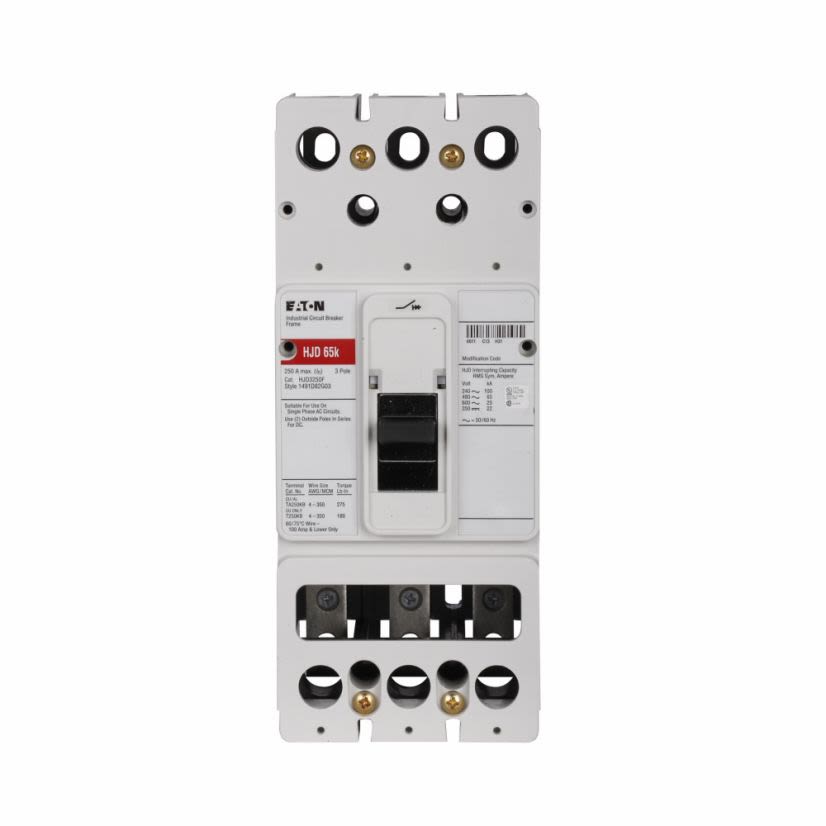

EATON HJD3250F Molded Case Circuit Breaker Frame, 600 V AC/250 V DC, 250 A, 3 Poles, Line/Load Terminal
EATON HJD3250F Molded Case Circuit Breaker Frame, 600 V AC/250 V DC, 250 A, 3 Poles, Line/Load Terminal

Cutler-Hammer Series HJD3250F

EATON HJD3250F Molded Case Circuit Breaker Frame, 600 V AC/250 V DC, 250 A, 3 Poles, Line/Load Terminal
Non-stock product. Available to order - lead time may vary.

BrandCutler-Hammer Series

MFG #HJD3250F

Werner Part #510285

UPC786679512067

Non-stock product. Available to order - lead time may vary.

BrandCutler-Hammer Series

MFG #HJD3250F

Werner Part #510285

UPC786679512067

Product Description

EATON Molded Case Circuit Breaker Frame, 600 V AC/250 V DC, 250 A, 3 Pole, Line/Load Terminal, 100 kA IR Rating, For Use With: C Series Type HJD J-Frame Interchangeable Fixed Thermal Magnetic Trip Molded Case Circuit Breaker, 50/60 Hz, 4.06 x 4.13 x 4.13 in
Attributes
Connection TypeLine/Load
Country of OriginDO
Dimensions4.06 x 4.13 x 4.13 in
Enclosure TypeNEMA AB1-1993
FrameEG
Frequency Rating50/60 Hz
Interrupt Rating35 kA at 240 VAC, 25 kA at 415 VAC, 25 kA at 480 VAC, 18 kA at 600Y/347 VAC
ManufacturerEaton
Number of Poles3
Package Height6.3 in
Package Length12.3 IN
Package TypeEACH
Package Weight12.5 lb
Package Width6.9 in
Phase3
SeriesG Series
Suitable For Use WithC Series Type HJD J-Frame Interchangeable Fixed Thermal Magnetic Trip Molded Case Circuit Breaker
Temperature Rating40 deg C
Terminal TypeLine/Load
Trip TypeAdjustable Thermal/Fixed Magnetic
TypeType EGE
Type / StyleFrame only
Voltage600 VAC, 250 VDC
