Cutler-Hammer Series P3F361RGN

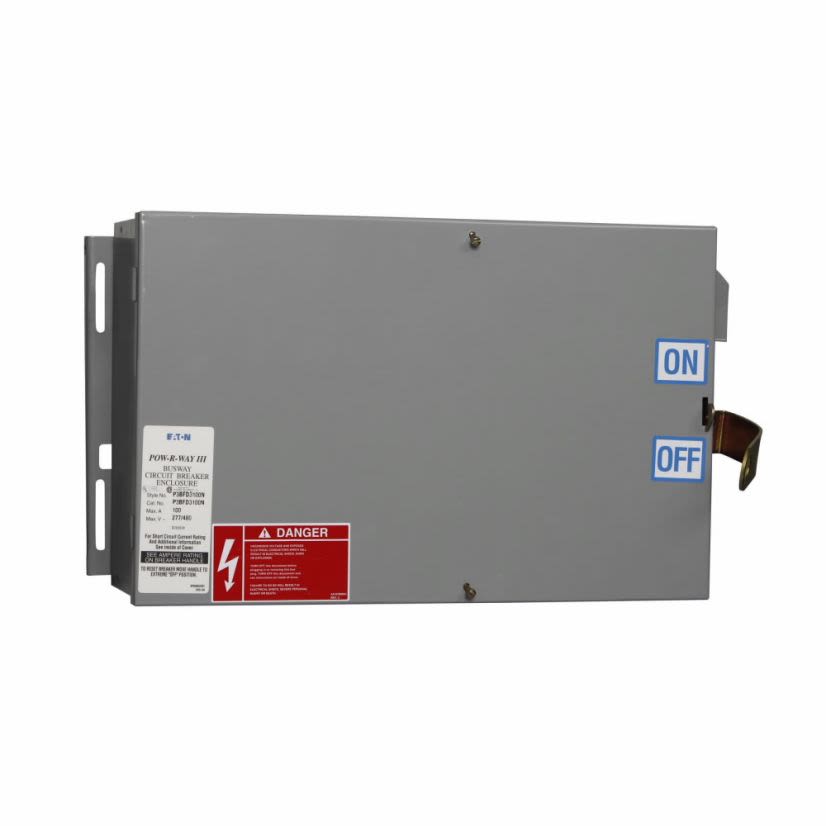

EATON Pow-R-Way III P3F361RGN P3F 3-Pole Class R 50% Internal Ground/100% Neutral Hanger Fusible Plug-In Unit With Fuse Clip, 600 V AC, 30 A, 4 Wires
Cutler-Hammer Series P3F361RGN
EATON Pow-R-Way III P3F361RGN P3F 3-Pole Class R 50% Internal Ground/100% Neutral Hanger Fusible Plug-In Unit With Fuse Clip, 600 V AC, 30 A, 4 WiresNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #P3F361RGN
Werner Part #24841
UPC786683020718
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #P3F361RGN
Werner Part #24841
UPC786683020718
Product Description
EATON Pow-R-Way III Fusible Plug-In Unit, 3-Pole Class R 50% Internal Ground/100% Neutral Hanger, Series: P3F, 600 V AC, 30 A Trip, 4 Wires, 200 kA Short Circuit, 3 ph, Aluminum, 5.43 in L x 12.36 in W x 22.78 in H
Attributes
Documents
Applications
Features
Warranty
Attributes
Breaker TypeBR
Country of OriginMX
Dimensions5.43 in L x 12.36 in W x 22.78 in H
Enclosure Box SizeNEMA C2
Interrupt Rating200 kA
ManufacturerEaton
MaterialAluminum
Number of Wires4
Package Height6 IN
Package Length23 IN
Package TypeEACH
Package Weight22 lb
Package Width13 IN
Phase3
SeriesP3F
Short Circuit Current Rating200 kA
Type3-Pole Class R 50% Internal Ground/100% Neutral Hanger
Type / Style3-Pole R-Class
Voltage600 VAC
Documents
Applications
Generation, Renewable Energy, Wind, Datacenters, Aftermarket, Utility, Public Transmission, Commercial, Institutional Buildings, Structures, Power Distribution and Controls, Residential Buildings, Facilities, Industrial Facilities, Factories, Water and Wastewater Systems, Integrated PODs, Enterprise, Server Room, Network Closet, Distributed Enterprise, Critical Power, PFM and Pow-R-Way III Low Voltage Busway System Applications
Features
- The all-aluminum two-pieces housing provides durability and product integrity
- The lightweight and compact design results in easy installation
- The housing combined with a true sandwich design in both plug-in and feeder busway contributes to improve coordination and high short circuit ratings
- An epoxy insulation process ensures optimum conductor and system protection
- Silver plated joint and contact surfaces provide high quality connections
- Highly automated manufacturing processes result in a superior product
- Corner joint elbows contribute to successful layouts and minimize space limitations
- High six cycle short circuit ratings optimize coordination between busway and power equipment
- Plug-in busway design and an enhanced bus plug-in unit facilitates installation and improves safety
- Advanced bus plugs provide protection, communication and coordination capabilities
Warranty
1 year
