Superior Essex 04-001-68

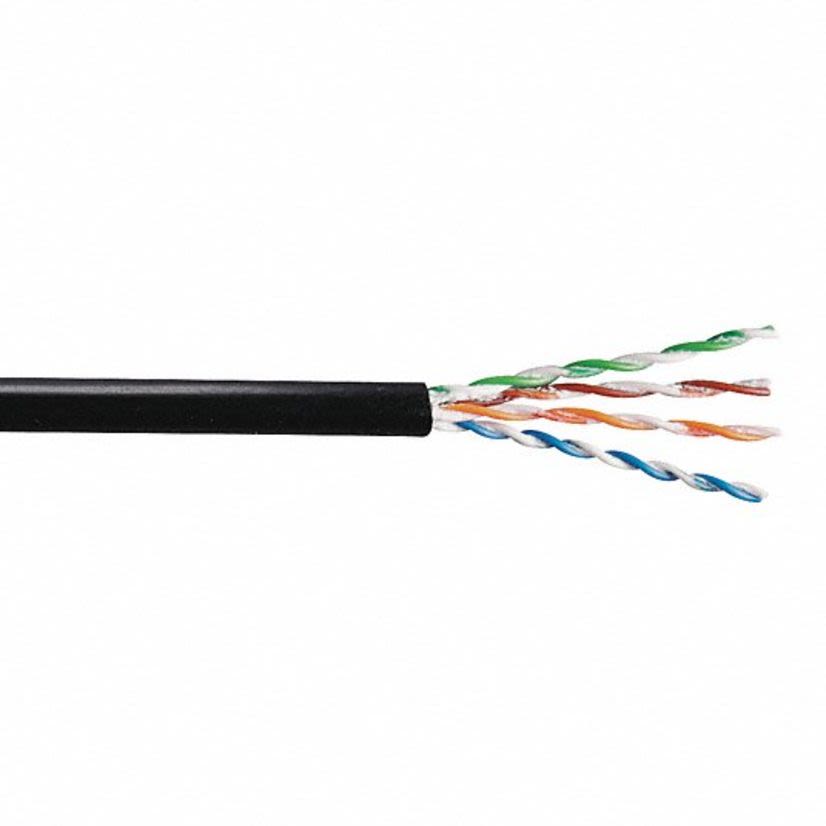

SUPERIOR ESSEX 04-001-68 Unshielded OSP Broadband Cable, (4) 23 AWG Annealed Solid Copper Conductor, 1000 ft L
Superior Essex 04-001-68
SUPERIOR ESSEX 04-001-68 Unshielded OSP Broadband Cable, (4) 23 AWG Annealed Solid Copper Conductor, 1000 ft LNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
SUPERIOR ESSEX OSP Broadband Cable, Unshielded, 23 AWG Conductor, 4 Conductors, 1000 ft Length, Annealed Solid Copper Conductor, 0.3 in Outside Dia, Polyolefin Insulation, Polyethylene, Black, -40 to 167 deg F
Attributes
Documents
Applications
Features
Specifications
Attributes
Conductor size23 AWG
Conductor TypeAnnealed Solid Copper
Country of OriginUnited States
Jacket ColorBlack
Jacket MaterialPolyethylene
ManufacturerSuperior Essex
MaterialBrass
Temperature Rating-40 to 167 deg F
TypeUnshielded
Applications
10 BASE-T Through 1000 BASE-T Ethernet, Power over Ethernet (PoE) - IEEE 802.3af, PoE+ - IEEE 802.3at type 1 and 2, ATM and Token Ring
Features
- Transmission performance characterized to 500 MHz for Cat 6 and 350 MHz for cat 5e
- Assures ample overhead for reliable transmission in an OSP rated cable allowing extension of the premises LAN
- PFM gel-filled core construction
- Small, robust design
- OSP-grade jacket
- Prevents intrusion of moisture and easily wipes clean during installation
- ColorTip circuit identification system
- Outside plant rated cable for years of reliable performance
- Aluminum interlock armored construction
- Easily identifiable conductor mates even in low light environments
- Protects against mechanical stresses
- Installs faster and easier than EMT conduit and conventional wire
- -40 to 140 deg F installation temperature
- Sunlight and weather resistant
- Category 6
- 100 +/- 15 Ohm characteristic impedance
Specifications
- ANSI/TIA-568-C.2
- ANSI/ICEA S-107-704-2012
- RoHS Compliant
- RoHS 2 Compliant
- REACH Compliant
