Panduit CJ688TGBL-24

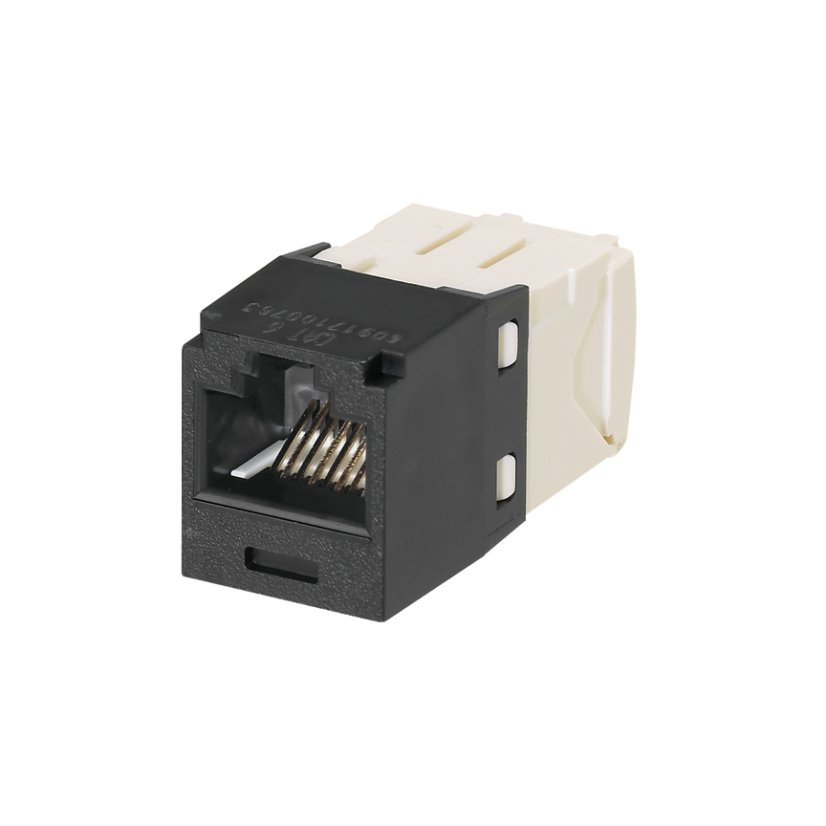

Panduit PanNet TX6 Plus CJ688TGBL-24 8-Position 8-Wire Universal TG Style Unshielded Jack Module, Cat 6 RJ45/Mini-Com Module, Surface Mount, 1 Port, ABS/Polycarbonate, Black
Panduit CJ688TGBL-24
Panduit PanNet TX6 Plus CJ688TGBL-24 8-Position 8-Wire Universal TG Style Unshielded Jack Module, Cat 6 RJ45/Mini-Com Module, Surface Mount, 1 Port, ABS/Polycarbonate, BlackIn Stock: 1608more info
|
BrandPanduit
MFG #CJ688TGBL-24
Werner Part #3863196
UPC074983010769
In Stock: 1608more info
|
BrandPanduit
MFG #CJ688TGBL-24
Werner Part #3863196
UPC074983010769
Product Description
Panduit PanNet TX6 Plus Jack Module, 8-Position 8-Wire Universal TG Style Unshielded, Cat 6 RJ45/Mini-Com Module, Surface Mount, 1 Ports, ABS/Polycarbonate, Black, 0.62 in W x 1.5 in D x 0.71 in H
Attributes
Documents
Applications
Included
Features
Attributes
ColorBlack
Country of OriginCR
Dimensions0.62 in W x 1.5 in D x 0.71 in H
ManufacturerPanduit
MaterialABS/Polycarbonate
Module TypeCat 6 RJ45/Mini-Com
Mounting TypeSurface
Number of Ports1
Type8-Position 8-Wire Universal TG Style Unshielded
Type / Style8-Position 8-Wire RJ45 Universal TG Style
Documents
Applications
10BASE-T (Ethernet), 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 155 Mbps ATM, 622 Mbps ATM, 1.2 Gbps ATM, Token Ring 4/16, Digital Video, Broadband/Baseband Analog Video and Voice Over Internet Protocol Applications
Included
EGJT Termination Tool
Features
- Confidence that each jack module will deliver the critical electrical performance requirements
- Enhanced Giga-TX technology optimizes performance by eliminating conductor untwist and reduces installations time and expense
- UTP jack modules snap-in and out of all Mini-Com faceplate, modular patch panel and surface mount boxes for easy moves, adds and changes
- Marked with quality control number for future traceability
- Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords and backwards compatible
- Side opening allows cable to be terminated to the right or left side of the jack module, ideal for installations that have minimal depth that may not allow standard bend radius practices to be accommodated
- EGJT termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability TGJT termination tool ideal for high volume installations
- Provides a simple and secure method to control access to data ports while not in use
- Integrated spring shuttered door keeps out dust and debris of unmated RJ45 jack modules automatically
- Each module is 100% factory tested to exceed industry standard performance requirements
- TG style termination eliminates the need for a termination tool
- Each jack is individually serialized for traceability and is compatible with Mini-Com shielded modular patch panel and faceplate
- The Mini-Com Cat 6 UTP RJ45 TG jack module is designed to terminate four-pair, 26 to 22 AWG twisted pair cable
- 100% performance tested
- Utilizes enhanced Giga-TX technology
- UTP jack modules snap-in and out of all Mini-Com faceplates, modular patch panels and surface mount boxes for easy moves, adds and changes
- Individually serialized, marked with quality control number for future traceability
- Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords and backwards compatible
- Can be clearly identified with optional labels and icons for port identification
- Plastic wire cap and plastic strain relief clip
