Panduit MPS588-C

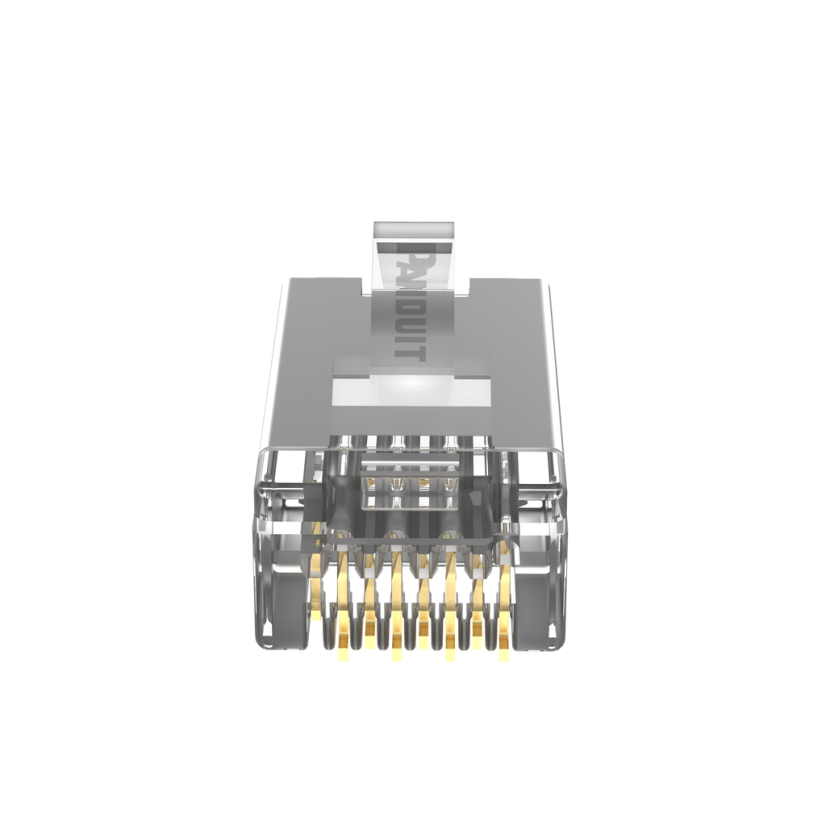

Panduit Pan-Plug MPS588-C 1-Port 8-Position 8-Wire Shielded Modular Plug, T568A/T568B/UTP Connector, 26 to 24 AWG Copper Cable, Cat 5e
Panduit MPS588-C
Panduit Pan-Plug MPS588-C 1-Port 8-Position 8-Wire Shielded Modular Plug, T568A/T568B/UTP Connector, 26 to 24 AWG Copper Cable, Cat 5eIn Stock: 80more info
|
BrandPanduit
MFG #MPS588-C
Werner Part #2525173
UPC074983832101
In Stock: 80more info
|
BrandPanduit
MFG #MPS588-C
Werner Part #2525173
UPC074983832101
Product Description
Panduit Pan-Plug Modular Plug, 1-Port 8-Position 8-Wire Shielded, T568A/T568B/UTP Connector, Copper Cable, 26 to 24 AWG Cable, Category: Cat 5e, Polycarbonate, Clear, 0.46 in W x 0.89 in D x 0.32 in H
Attributes
Documents
Applications
Features
Attributes
Category TypeCat 5e
ColorClear
Connector TypeT568A/T568B/UTP
Country of OriginCR
Dimensions0.46 in W x 0.89 in D x 0.32 in H
ManufacturerPanduit
MaterialPolycarbonate
Type1-Port 8-Position 8-Wire Shielded
Type / Style1-Port 8-Position 8-Wire
Type of CableCopper
Documents
Applications
Shielded Applications
Features
- Patented tangle-free latch prevents snags and provides easy release, saving time on frequent moves, adds and changes
- Simplified termination requires no loading bar, guide ramp facilitates easy conductor insertion and termination
- Contacts plated with 50 um in of gold for superior performance
- Shielded plug housing provides conductive path for grounding
- Terminates 26 to 24 AWG, 100 Ohm stranded or solid shielded cable with maximum conductor insulation diameter of 0.04 in
