Panduit MP588-C

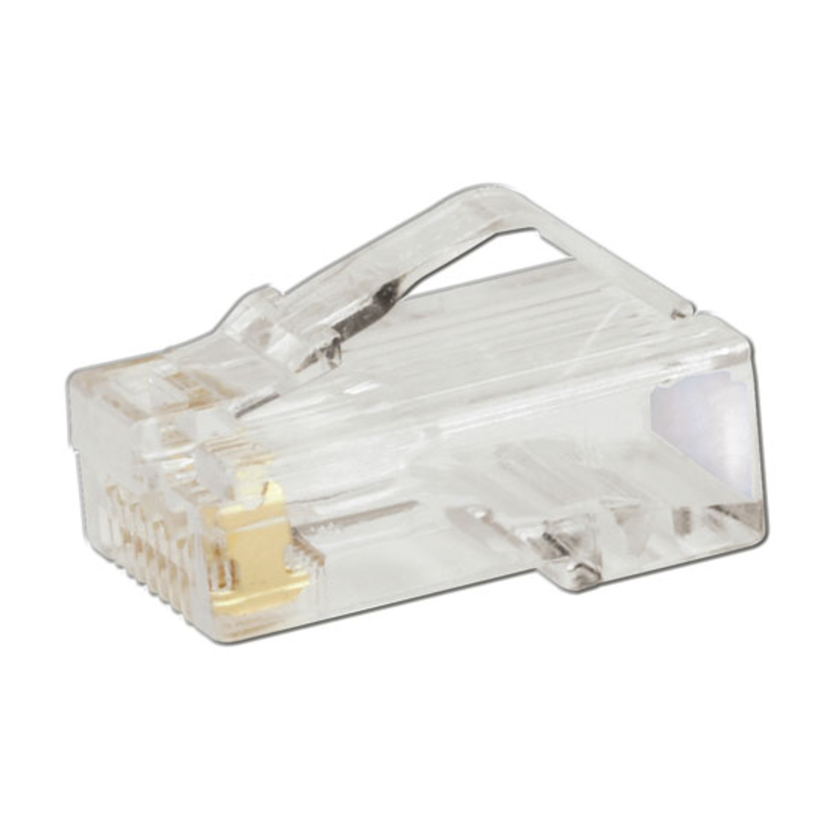

Panduit Pan-Plug MP588-C 1-Port 8-Position 8-Wire High Performance Unshielded Modular Plug, T568A/T568B/UTP Connector, 24 AWG Copper Cable, Cat 5e
Panduit MP588-C
Panduit Pan-Plug MP588-C 1-Port 8-Position 8-Wire High Performance Unshielded Modular Plug, T568A/T568B/UTP Connector, 24 AWG Copper Cable, Cat 5eNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Panduit Pan-Plug Modular Plug, 1-Port 8-Position 8-Wire High Performance Unshielded, T568A/T568B/UTP Connector, Copper Cable, 24 AWG Cable, Category: Cat 5e, Polycarbonate, Clear, 0.46 in W x 0.88 in D x 0.32 in H
Attributes
Documents
Applications
Features
Attributes
Category TypeCat 5e
ColorClear
Connector TypeT568A/T568B/UTP
Country of OriginCR
Dimensions0.46 in W x 0.88 in D x 0.32 in H
ManufacturerPanduit
MaterialPolycarbonate
Type1-Port 8-Position 8-Wire High Performance Unshielded
Type / Style1-Port 8-Position 8-Wire High Performance
Type of CableCopper
Documents
Applications
Unshielded Applications
Features
- Patented prevents snags and provides easy release, saving time and tangle-free latch providing reliability on frequent moves, adds and changes
- Robust construction, rated to 2500 mating cycles
- Simplified termination requires no loading bar, guide ramp facilitates easy conductor insertion and termination
- Contacts plated with 50 um in of gold for superior performance
- Terminate 24 AWG, 100 Ohm, stranded or solid conductor with maximum conductor insulation Dia of 0.04 in
