Panduit NK688MWH

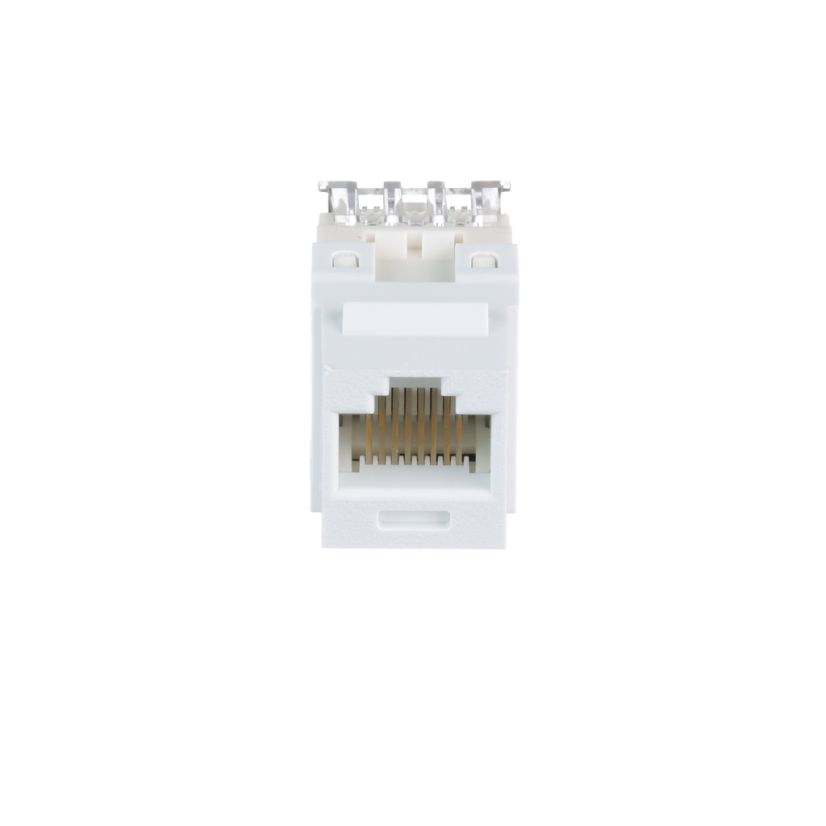

Panduit NetKey NK688MWH 8-Position 8-Wire Punchdown Unshielded Jack Module, Cat 6 RJ45/Keystone Module, Surface Mount, 1 Port, ABS/Polycarbonate, White
Panduit NK688MWH
Panduit NetKey NK688MWH 8-Position 8-Wire Punchdown Unshielded Jack Module, Cat 6 RJ45/Keystone Module, Surface Mount, 1 Port, ABS/Polycarbonate, WhiteIn Stock: 419more info
|
In Stock: 419more info
|
Product Description
Panduit NetKey Jack Module, 8-Position 8-Wire Punchdown Unshielded, Cat 6 RJ45/Keystone Module, Surface Mount, 1 Ports, ABS/Polycarbonate, White, 0.65 in W x 1.16 in D x 0.9 in H
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorWhite
Country of OriginItaly
Dimensions0.65 in W x 1.16 in D x 0.9 in H
GTIN00074983574742
ManufacturerPanduit
MaterialABS/Polycarbonate
Module TypeCat 6 RJ45/Keystone
Mounting TypeSurface
Number of Ports1
Series8-Position 8-Wire Cat 6 Punchdown Unshielded
Type8-Position 8-Wire Punchdown Unshielded
Type / Style8-Position 8-Wire Cat 6 Punchdown Unshielded
Documents
Applications
For unshielded applications
Features
- Confidence that each jack module delivers specified performance
- Utilizes industry standard termination style and includes wire retention cap
- Universal keystone jack module snap-in and out of all NetKey faceplate, modular patch panel and surface mount boxes for fast moves, adds and changes
- Marked with quality control number for future traceability
- Eliminating the time to open each individual package and reducing on site waste, ideal for high volume installations
- Each module is 100% factory tested to exceed industry standard performance requirements
- Contacts are plated with 50 um in of gold for superior performance
- Jacks are individually serialized and are compatible with keystone interfaces such as NetKey faceplate, modular patch panel and surface mount boxes
- The NetKey Cat 6 UTP RJ45 Punchdown Keystone jack module is designed to terminate four-pair, 26 to 22 AWG twisted pair cable
Specifications
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|cULus Listed|UL 1863|cCSA C22.2|IEC 60603-7, 60512-99-001|FCC Certified|ANSI/TIA 568-C.2
